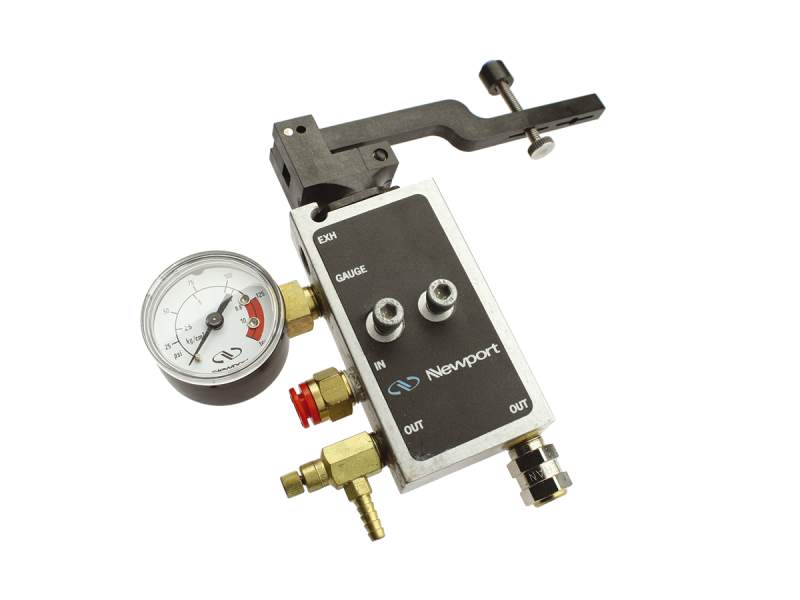

Leveling Valve, Pressure Gauge, Medium Gain, ±0.010 in.

The IPV-S1 Standard Leveling Valve is standard on most Newport pneumatic isolators and gives repeatability of ±0.010 in. (0.25 mm). The IPV-S1 is the best compromise between excellent isolation and re-leveling response time. Includes pressure gauge.

Leveling Valve Components

Specifications

Technical Specs

Type
Leveling Valve
Pack Quantity
1

Gain
Medium
Releveling Accuracy
±0.010 in.

Type
Leveling Valve
Pack Quantity
1

Gain
Medium
Releveling Accuracy
±0.010 in.

Resources & Downloads

3D Product Models

2D Product Drawings

IPV Drawing(PDF)

Other

IPV-S1 RoHS Certificate(278.2 kB, PDF)
