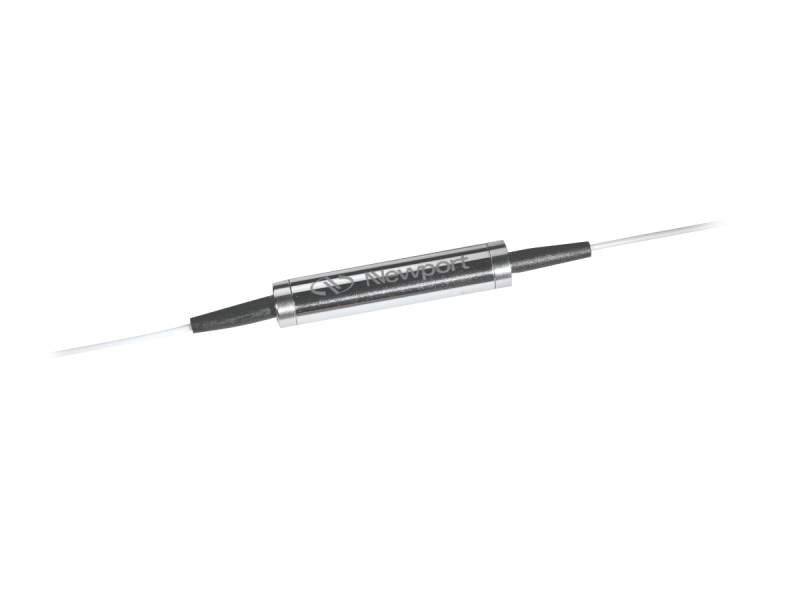

Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Fiber Pigtails, FC/UPC

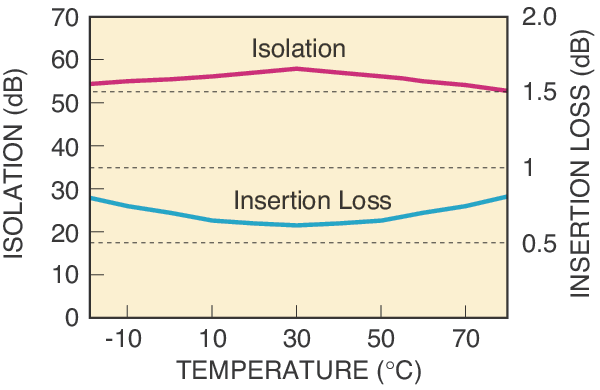

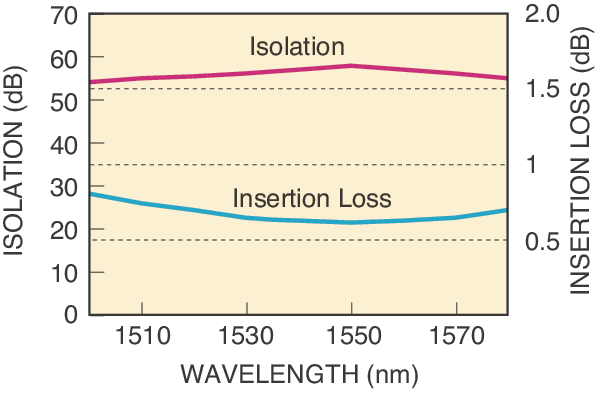

Newport’s Fiber Optic Isolators are passive, fiber-pigtailed devices that reduce back reflections and backscattering of light (highly desirable in laser applications, for example). The supreme ISU-1550-FCUPC Model features extremely low polarization mode dispersion and stable performance over a wide wavelength and temperature range. The standard version comes with FC/UPC connectorized fiber. Use option code 30 when ordering other connectorized versions. Newport’s Fiber Optic Isolators are passive, fiber-pigtailed devices that reduce back reflections and backscattering of light (highly desirable in laser applications, for example).

Specifications

Technical Specs

Type
60 dB Supreme Fiber-optic Isolator
Fiber Type
Singlemode
Fiber Connector
FC/UPC
Operating Wavelength
1550 nm
Maximum Insertion Loss
≤0.7 dB
Typical Insertion Loss
0.6 dB
Return Loss
≥65/60 dB
Maximum Optical Power
300 mW

Operating Temperature
0 to 70°C
Option Code
30
Polarization Mode Dispersion
<0.05 ps
Polarization Dependent Loss, Typical
<0.1 dB
Peak Isolation
>60 dB
Storage Temperature
-40 to 85°C

Type
60 dB Supreme Fiber-optic Isolator
Fiber Type
Singlemode
Fiber Connector
FC/UPC
Operating Wavelength
1550 nm
Maximum Insertion Loss
≤0.7 dB
Typical Insertion Loss
0.6 dB
Return Loss
≥65/60 dB
Maximum Optical Power
300 mW

Operating Temperature
0 to 70°C
Option Code
30
Polarization Mode Dispersion
<0.05 ps
Polarization Dependent Loss, Typical
<0.1 dB
Peak Isolation
>60 dB
Storage Temperature
-40 to 85°C

Resources & Downloads

Drawings And Cad

ISS_UCP-FiberIso-S(70.5 kB, PDF)
