Spherical Ball Microlens, 1.0 mm 0.55 mm FL, 0.05 mm WD, Uncoated
Spherical Ball Microlens, 1.0 mm 0.55 mm FL, 0.05 mm WD, Uncoated
Model: LB1
Product Series Overview

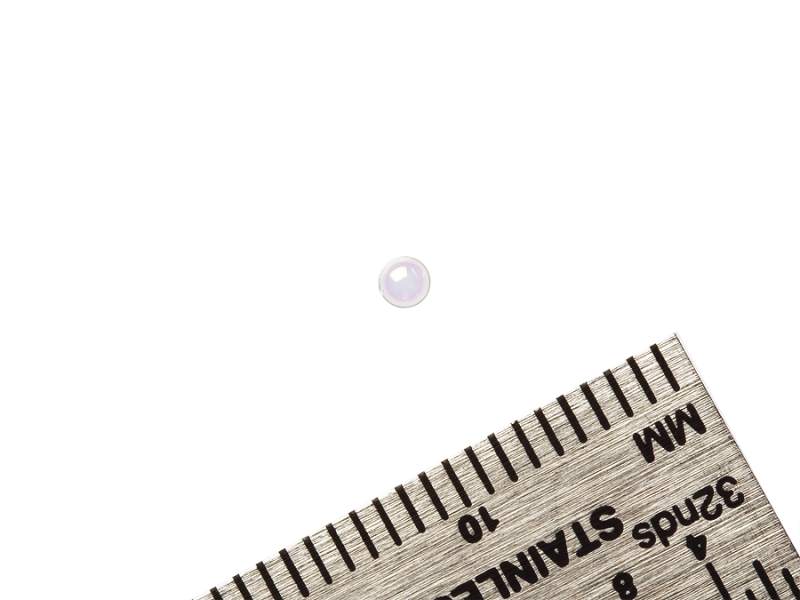

Spherical Ball Micro LensesThe LB1 Spherical Ball Micro Lens is an uncoated, 1.0 mm diameter, spherical ball lens with a 0.55 mm focal length, a 0.05 mm working distance, and a 0.8 mm clear aperture. Spherical ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Their compact size makes them useful in a variety of applications.
Resources & Downloads
3D Product Models
2D Product Drawings
SPHERBAL-S(100.2 kB, PDF)
Other
LB1 RoHS Certificate(259.3 kB, PDF) LB1_ROHS2-2021.pdf(278.4 kB, PDF)
