Kinematic Mirror Mount, 45 Degree, 25.4 mm, Rear Load, CenterPoint, A-LINE
Kinematic Mirror Mount, 45 Degree, 25.4 mm, Rear Load, CenterPoint, A-LINE
Model: LH-1PY-45
Product Series Overview

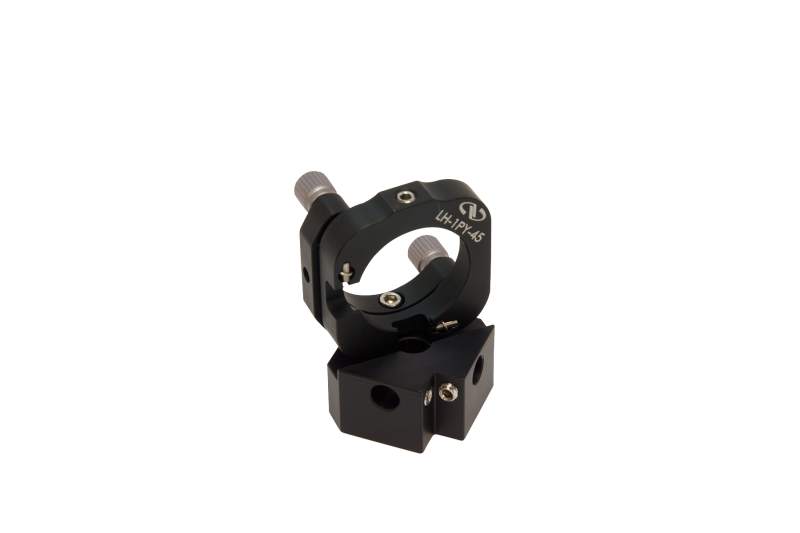

A-Line Adjustable Optic MountsThe LH-1PY-45 is an adjustable mirror mount designed for making 90-degree beam folds with the A-LINE™ system. The mount holds standard Ø1 in. (25.4 mm) mirrors and delivers +/- 3-deg travel. The mount is designed to be mounted on LH-GR guide rods but can also be post-mounted as well. This mount has special threaded knobs which can be removed with the aid of a 5/64 (2-mm) hex wrench.
Resources & Downloads
3D Product Models
2D Product Drawings
LH-1PY-45 DWG.pdf(200.6 kB, PDF)
Other
LH-1PY-45 RoHS Certificate(277.8 kB, PDF) LH-1PY-45_RoHS2021.pdf(681.6 kB, PDF)
