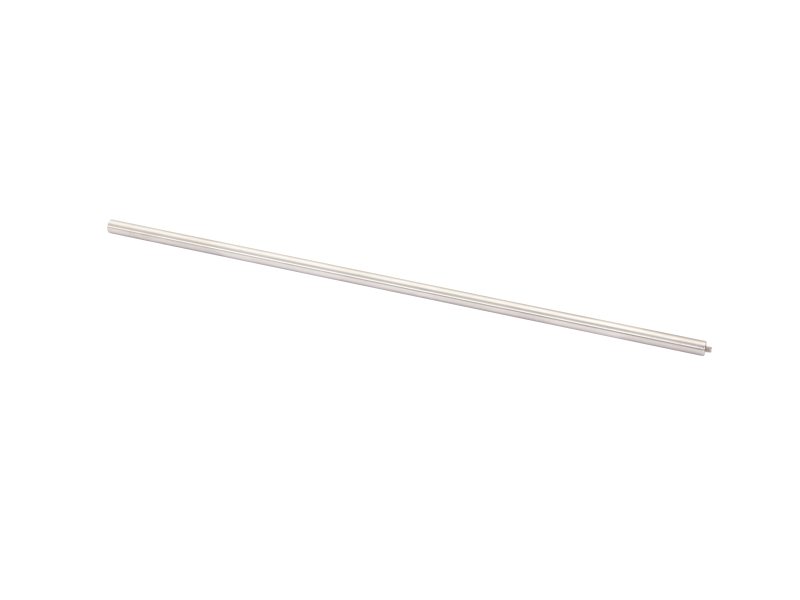

Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE
Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE
Model: LH-GR-10
Product Series Overview
A-Line Keyed Guide RodsThe LH-GR-10 Guide Rod is 6 mm diameter and 10 in. long with 4-40 thread. It allows any of the A-Line optic holders to mount with the same orientation along the rod. Two flat and parallel surfaces, machined along the length of the rod, key the A-Line mounts to the same rotational orientation.
Resources & Downloads
3D Product Models
2D Product Drawings
LH-GR(369 kB, PDF)
Other
LH-GR-10_RoHS2021.pdf(682 kB, PDF)
