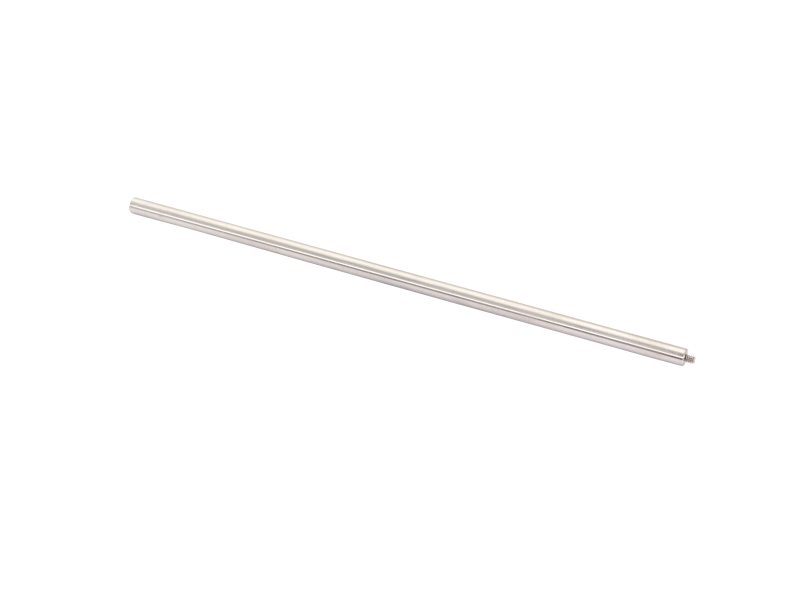

Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE

The LH-GR-8 Guide Rod is 6 mm diameter and 8 in. long with 4-40 thread. It allows any of the A-Line optic holders to mount with the same orientation along the rod. Two flat and parallel surfaces, machined along the length of the rod, key the A-Line mounts to the same rotational orientation.

Specifications

Technical Specs

Type
Guide Rod, Keyed
Diameter
6.0 mm

Length
203.2 mm

Type
Guide Rod, Keyed
Diameter
6.0 mm

Length
203.2 mm

Resources & Downloads

3D Product Models

2D Product Drawings

LH-GR(369 kB, PDF)

Other

LH-GR-8_RoHS2021.pdf(682.2 kB, PDF)
