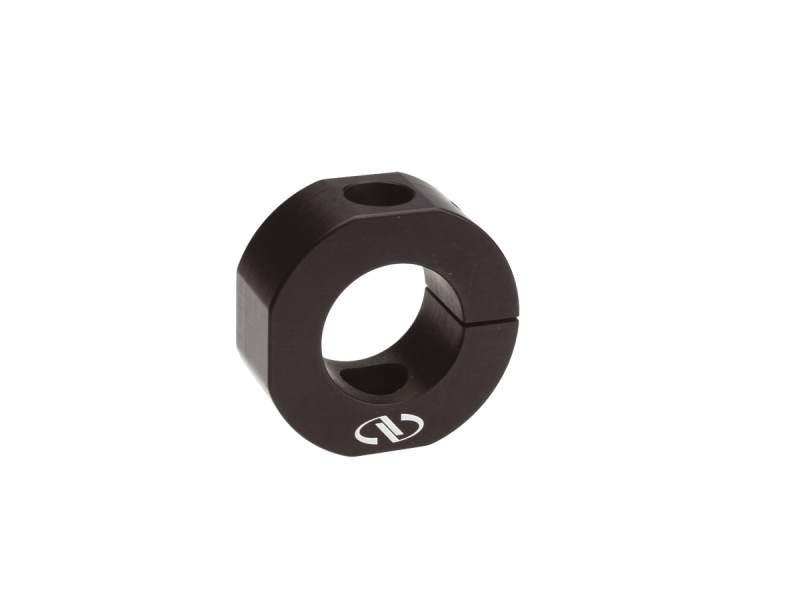

Post Mounting Ring, 1/2 inch LT Series Lens Tubes

The LT05-PR Post Mounting Ring allows 1/2 inch LT Series lens tubes to be post mounted. It attaches to posts via a counterbored through hole and securely holds the lens tube in place with a circumferential clamp mechanism. This style of clamping more evenly distributes the holding force and minimizes tube deformation and damage.

Specifications

Technical Specs

Type
Lens Mount Adapter

Thread Type
0.535-40

Type
Lens Mount Adapter

Thread Type
0.535-40

Resources & Downloads

3D Product Models

2D Product Drawings

LTXX-PR_DWG(84.2 kB, PDF)

Other

LT05-PR RoHS Certificate(279 kB, PDF)
LT05-PR_RoHS2021.pdf(682.3 kB, PDF)
