Post Clamp, 38.1 mm Diameter Posts, M6 Thread

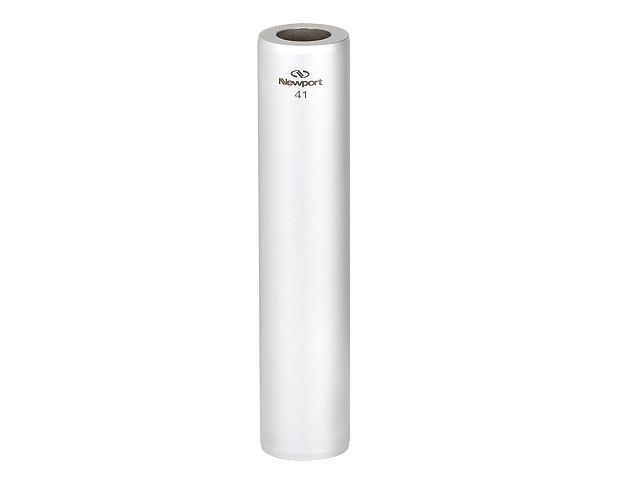

The M-340-RC Metric Rod Clamp may be manually positioned to any height or any angular orientation around the rod axis by tightening the knurled knob. This clamp is compatible with Models M-40, M-41, 42 and 45 rods. The 340-RC rod clamp incorporates a novel locking peg mechanism allowing components to be attached in a variety of angular orientations. The peg mechanism also allows components to be detached and re-attached quickly and easily. The clamp features an array of clearance and M6 tapped holes for flexibility in attaching and orienting a variety of accessories.

Specifications

Technical Specs

Type
Rod Clamp

Inside Diameter
38.1 mm

Type
Rod Clamp

Inside Diameter
38.1 mm

Resources & Downloads

3D Product Models

2D Product Drawings

340-RC-D-WG-S(122.1 kB, PDF)

Other

M-340-RC RoHS Certificate(286.3 kB, PDF)
