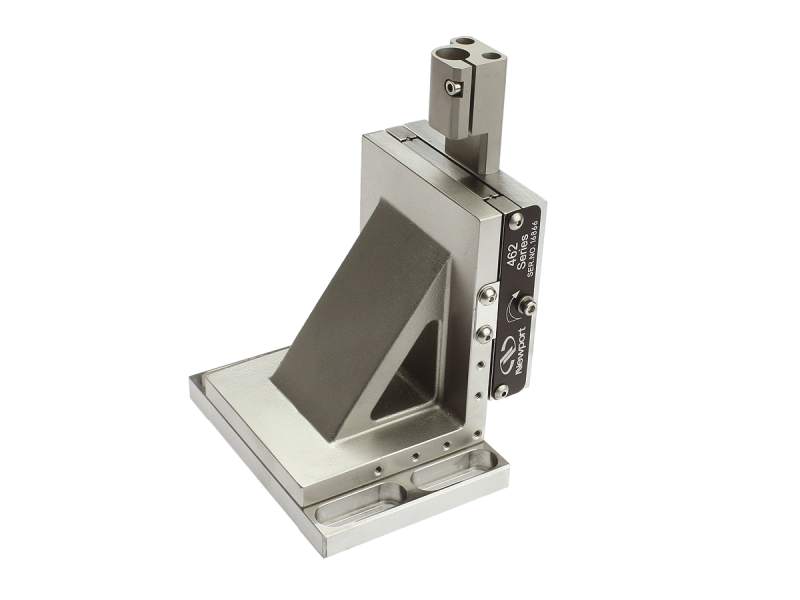

Vertical Linear Stage, ULTRAlign, 25 mm Travel, Crossed-Roller, M4, M6
Model: M-462-Z-M
Product Series Overview
25 mm Travel ULTRAlign Crossed-Roller Bearing StagesThe M-462-Z-M ULTRAlign™ Precision Integrated Crossed-Roller Bearing Linear Stage features stainless steel construction for high stability, with thermally matched, hardened steel crossed-roller bearings for unsurpassed performance. The crossed-roller bearings and precision-manufactured bearing reference surfaces provide exceptionally linear 25.4 inch Z travel, with angular deviation better than 100 μrad about any axis. This Z-axis stage does not depend on springs for support, ensuring maximum vertical load capacity.
ULTRAlign stages overcome the limitations of multi-axis stages derived from traditional tooling industry designs. The actuators are located out-of-the-way of oversized loads. Generous M6 hole patterns provide easy mounting. The mounting base can be removed for a lower profile.
Precision Control and Extra Stiffness
Individually Tested to Guarantee <100 µrad Deviation
Each ULTRAlign Stainless Steel Crossed-Roller Translation Stage is tested individually to ensure it meets the <100 µrad angular deviation requirement. We don't just say it, we guarantee it. The actual test results are included with each stage.
Resources & Downloads
3D Product Models
2D Product Drawings
462-Z-DWG-S(108.8 kB, PDF)
Other
M-462-Z-M_RoHS2021.pdf(685.5 kB, PDF)
