Manual Linear Stage, Miniature, 4 mm Travel, 4.9 N Load Capacity

Dual Dowel Pin Bearing Alloy Steel Stages

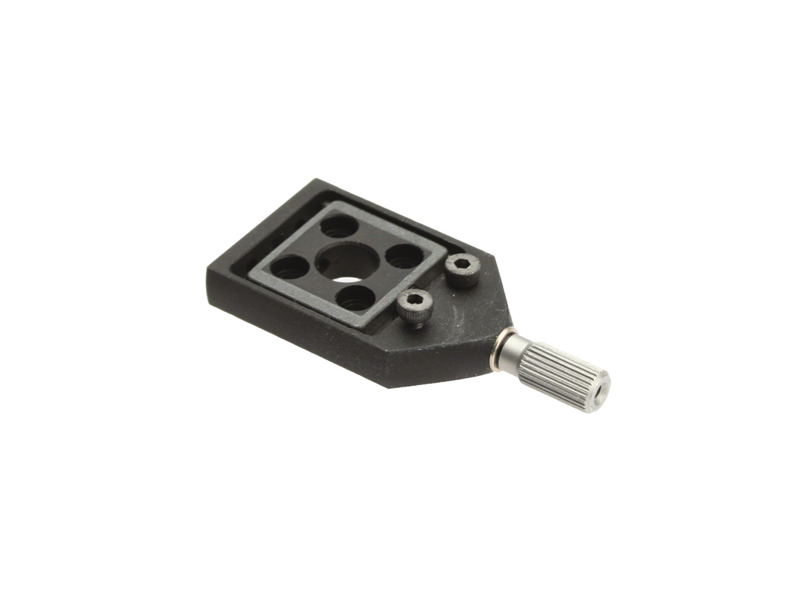

The M-MR1.4 Miniature Linear Stage is one of the smallest stages we offer. It uses a dual dowel pin bearing providing excellent performance for its size. It offers 4 mm of travel and a 4.4 N load capacity. These stages can be combined to form XY and XYZ configurations.

Specifications

Technical Specs

Axes of Travel
X
Maximum Stage Travel
4 mm
Centered Normal Load Capacity
4.9 N
Recommended Actuators
Included

Angular Deviation
5 mrad
Material
Alloy Steel
Bearings
Dowel Pin Bearing
Drive Location
Center drive

Axes of Travel
X
Maximum Stage Travel
4 mm
Centered Normal Load Capacity
4.9 N
Recommended Actuators
Included

Angular Deviation
5 mrad
Material
Alloy Steel
Bearings
Dowel Pin Bearing
Drive Location
Center drive

Resources & Downloads

3D Product Models

2D Product Drawings

M-MR1-4-S(85.9 kB, PDF)
