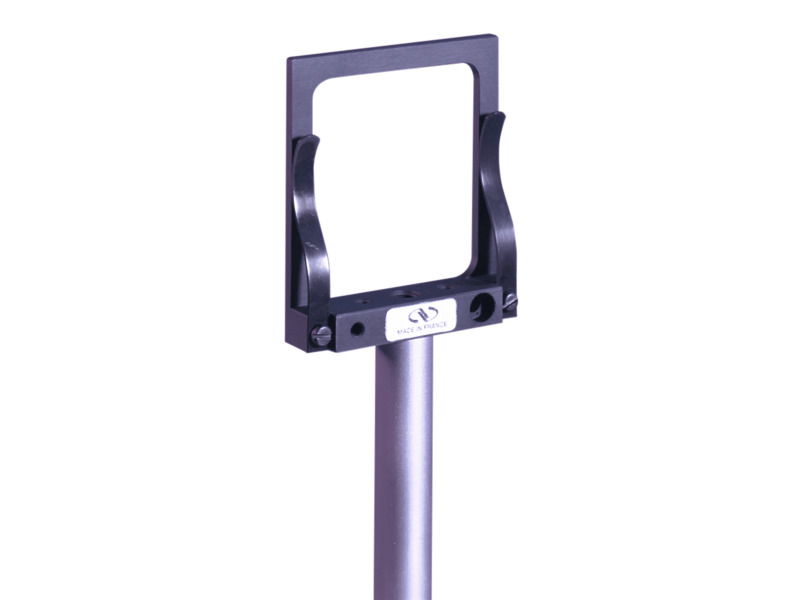

Optical Filter Mount, Spring-Loaded, 50.8 x 50.8 mm Square Optics

The M-PPF50 Spring-Loaded Filter mount supports 2.0 in. (50.8 mm) square filters with a thickness of up to 5 mm. Two steel springs hold the filter on a frame with a 1.57 in. (40 mm) clear aperture. Two M-PPF50 filter holders can be screwed to one another to form a unit that holds two filters. This filter holder has an M6 threaded hole for post mounting.

Specifications

Technical Specs

Filter Shape
Square
Filter Dimensions
50.8 x 50.8 mm
Maximum Thickness
5 mm
Number of Filters
1

Mounting Threads
M6
Material
Anodized Aluminum
Filter Size Circular or Square
50.8 mm

Filter Shape
Square
Filter Dimensions
50.8 x 50.8 mm
Maximum Thickness
5 mm
Number of Filters
1

Mounting Threads
M6
Material
Anodized Aluminum
Filter Size Circular or Square
50.8 mm

Resources & Downloads

3D Product Models

2D Product Drawings

PPF50-S(80.1 kB, PDF)

Other

M-PPF50 RoHS Certificate(278.4 kB, PDF)
