Multi-Functional Optical Chip Modulator, FOG, 1550 nm

The M-PY-1550 is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler, and dual electro-optic phase modulators. Based on Lithium Niobate (LiNbO3), M-PY-1550 is fabricated with Proton Exchange (PE) optical waveguides. The M-PY-1550 features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk-induced nonreciprocity.

The M-PY-1550 assures high reliability and performance over a wide temperature range.

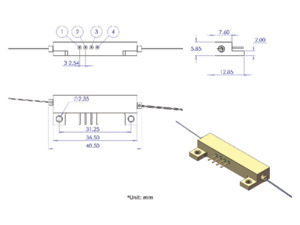

Specifications

Technical Specs

Type
Phase Modulator
Fiber Type
Corning RCPM15 PM Fiber
Material
LiNbO3
Fiber Connector
FC/APC
Operating Wavelength
1550 ± 20 nm
Maximum Insertion Loss
3.8 dB
Typical Insertion Loss
≤ 3.5 dB
Bandwidth
DC to 100 MHz minimum, 130 MHz typical

Operating Temperature
-45ºC to + 70ºC
Extinction Ratio
≥ 60 dB
Length
1.5 m
Cladding Diameter
80 μm
Power Requirements
+/- 15 V Max Input

Type
Phase Modulator
Fiber Type
Corning RCPM15 PM Fiber
Material
LiNbO3
Fiber Connector
FC/APC
Operating Wavelength
1550 ± 20 nm
Maximum Insertion Loss
3.8 dB
Typical Insertion Loss
≤ 3.5 dB
Bandwidth
DC to 100 MHz minimum, 130 MHz typical

Operating Temperature
-45ºC to + 70ºC
Extinction Ratio
≥ 60 dB
Length
1.5 m
Cladding Diameter
80 μm
Power Requirements
+/- 15 V Max Input

Resources & Downloads

DS-062302 M-PY-1550 Datasheet.pdf(1.2 MB, PDF)
