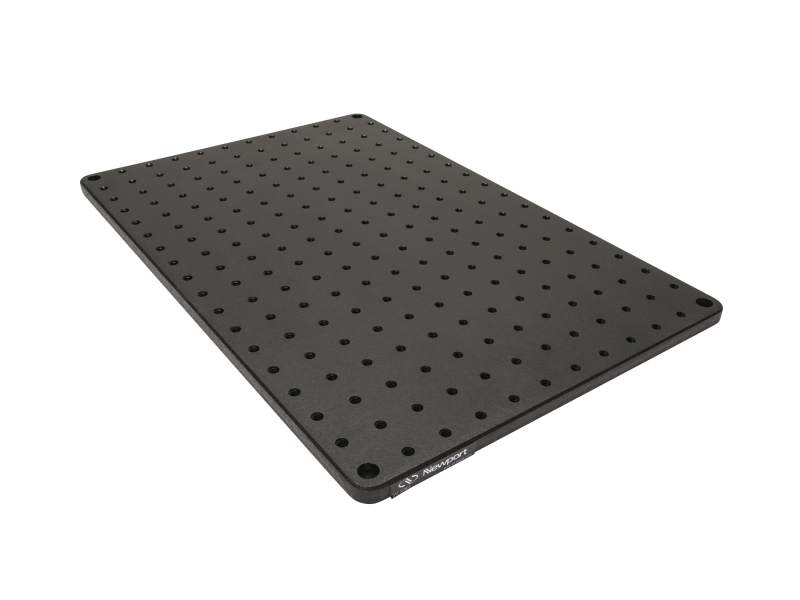

Optical Breadboard Plate, Solid Aluminum, 300 x 450 mm, 25 mm M6 Grid
Model: M-SA2-12X18
Product Series Overview
Solid Aluminum Optical Breadboard PlatesThe M-SA2-12X18 Solid Aluminum Optical Breadboardoffers a combination of durability, quality workmanship, and affordability. This 13 mm thick, 450 mm x 750 mm solid aluminum plate is perfect for all kinds of non-critical applications where higher performance and higher priced breadboards are simply not necessary. A wide variety of breadboard accessories make it easy to incorporate these breadboards into larger optical systems with ease.
Convenient Platform for Optical Assemblies
These solid aluminum, nonmagnetic, optical breadboard plates provide a low cost, convenient platform for building optical assemblies, small optical experiments and optical subsystems. Our wide variety of breadboard accessories make it easy to incorporate these breadboards into larger optical systems with ease.
Low Reflectance Working Surface
These solid aluminum optical breadboards have a matt black anodized surface that reduces unwanted reflections compared to honeycomb breadboards that use a stainless steel top skin working surface. Anodized aluminum is also non-magnetic compared to stainless steel.
Counterbored Through Holes for Easy Mounting
SA2 solid aluminum optical breadboards feature four counterbored through holes in the breadboard corners, making it easy to retrofit to existing optical tables for increased workspace and convenience. As compared to competitive solid breadboards, our mounting through holes are located on the mounting hole grid. This allows an SA2 breadboard mounted to an optical table to have its hole pattern aligned with the optical table hole pattern instead of being offset from it.
Resources & Downloads
3D Product Models
2D Product Drawings
SA2_90028936F(282.7 kB, PDF)
Other
M-SA2-12X18 RoHS Certificate(275.1 kB, PDF)
