Manual Rotation Stage, Steel, 79 mm Diameter, 23 mm Height, 4° Fine, M4 & M6

Precision Steel Rotation Stages, UTR Series

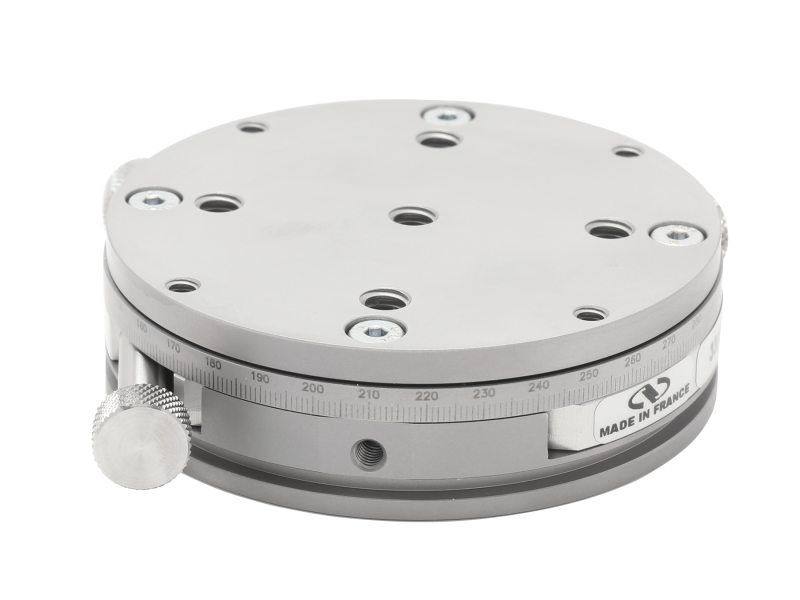

The M-UTR80S Precision Low-Profile Metric Rotation Stage is ideal for ±2° fine-tuning angular orientation of any component after rotating it to an approximate angle. Cross-roller bearings are preloaded in precision-ground, tool steel races for a smooth, accurate trajectory with minimum eccentricity. Disengaging the side-mounted clutch knob permits continuous 360° free rotation. Once the approximate angular orientation is obtained, a zero-backlash manual drive provides a fine adjustment of 4°. Scale markings and a vernier on the side of the rotation stage measure angular position with 1 arc min resolution.

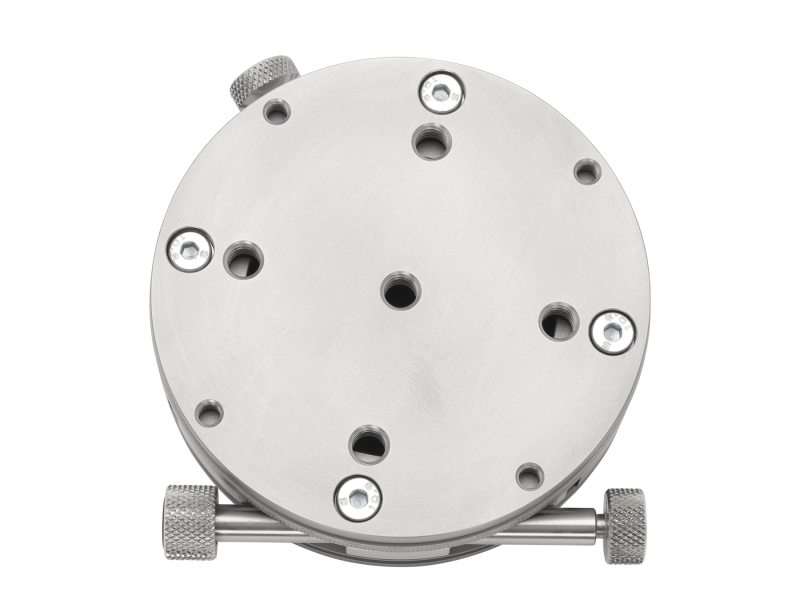

Components may be mounted to the top of the 79 mm diameter rotation stage via M4 and M6 tapped holes. Please refer to the Related Products for possible options.

360° Coarse Rotation - 4° Fine Rotation

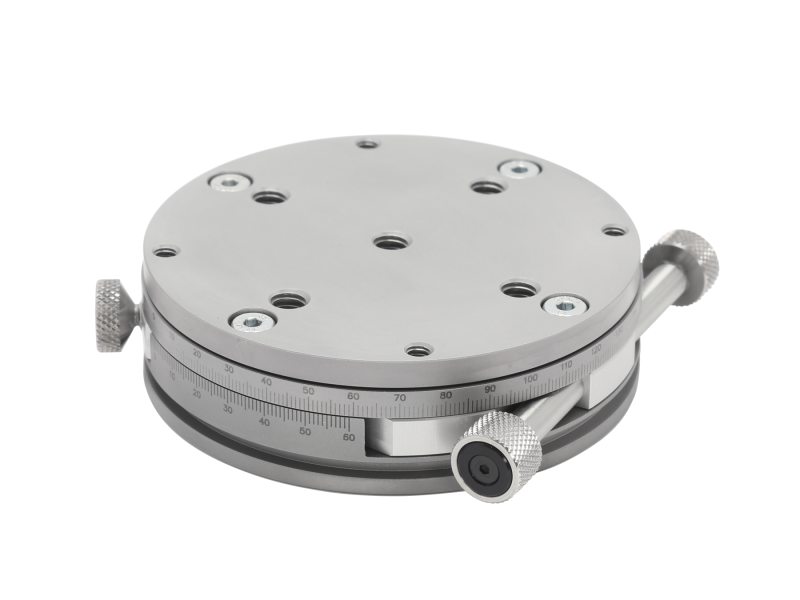

Disengaging the side-mounted clutch knob permits continuous 360° free rotation. Once the approximate angular orientation is obtained, a zero-backlash manual drive provides a fine adjustment of 4°, which can be locked down by the lock knob opposing the fine adjustment knob once the final alignment is achieved. Scale markings and a vernier on the side of the rotation stage measure angular position with 1 arc min resolution. Sensitivities range from 2 to 6 arc second depending on the model.

Table Mounting

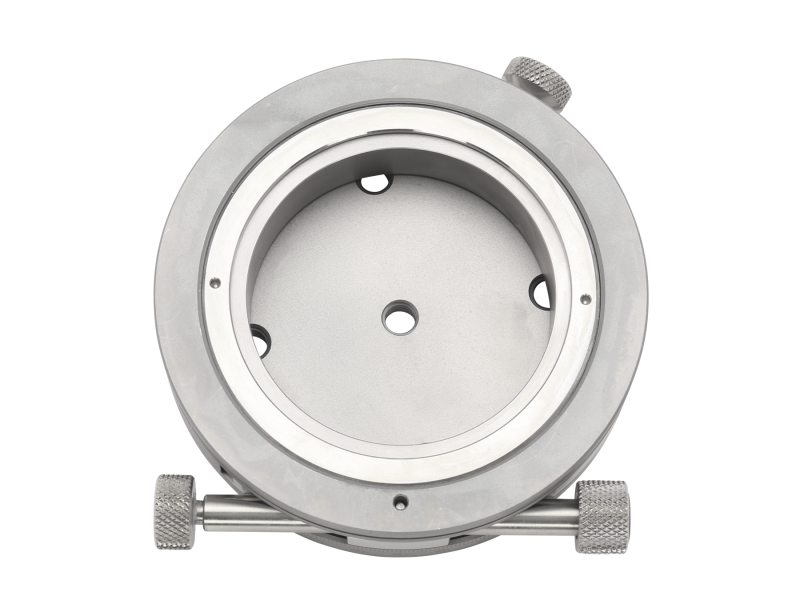

UTR Series stages can be table mounted using the optional PBN Series Base Plate. Stages mount with the included BR Series Mounting Bridles, through the stage collar near the base. Shown in the photo is a UTR80S mounted to a M-PBN8 base plate. Alternative solution for table mounting is to use Mounting Bridle when the base plate cannot be used.

Vertical Orientation Post Mounting

Although they are most commonly mounted horizontally, (M-)UTR80S low profile rotation stages can be post mounted in a vertical orientation using the M4 threaded hole located on the side of the stage. Shown in the photo is a UTR80S mounted to 1 in. optical pedestal.

Specifications

Technical Specs

Coarse Travel
360°
Fine Travel
4°
Diameter
79 mm
Height
23 mm
Load Capacity
200 N
Sensitivity
4 arc sec
Thread Type
M4 and M6
Material
Steel
Graduations
1°
Vernier
1 arc min

Maximum Drive Torque
1.3 Nm
Maximum Reverse Drive Torque
0.4 Nm
Resolution
0.017°
Transverse Stiffness
30 µrad/Nm
Wobble
±60 µrad
Weight
0.8 kg
Included Actuators
Adjustment Screw
Included Bridles

Coarse Travel
360°
Fine Travel
4°
Diameter
79 mm
Height
23 mm
Load Capacity
200 N
Sensitivity
4 arc sec
Thread Type
M4 and M6
Material
Steel
Graduations
1°
Vernier
1 arc min

Maximum Drive Torque
1.3 Nm
Maximum Reverse Drive Torque
0.4 Nm
Resolution
0.017°
Transverse Stiffness
30 µrad/Nm
Wobble
±60 µrad
Weight
0.8 kg
Included Actuators
Adjustment Screw
Included Bridles

Resources & Downloads

Drawings And Cad

UTR4680S DWG-S(143.3 kB, PDF)

Other

M-UTR80S RoHS Certificate(283.2 kB, PDF)
