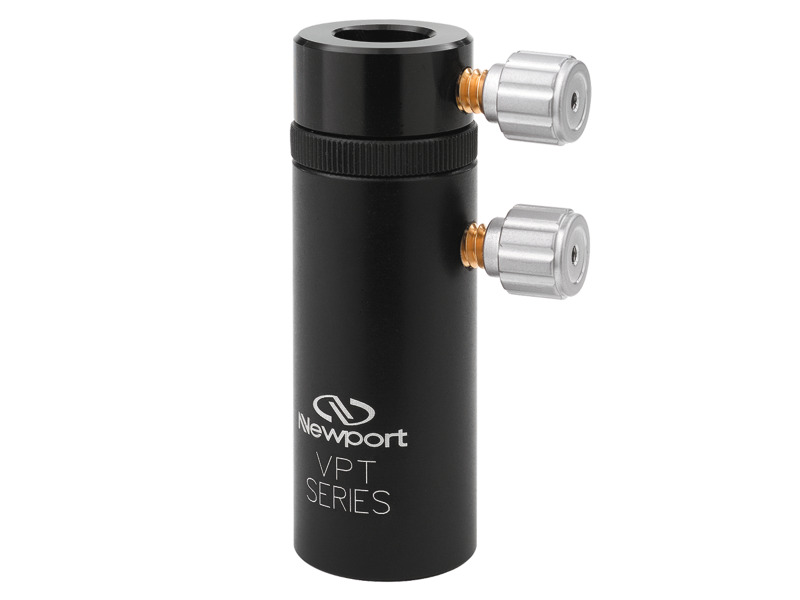

Optical Post Holder, Translating, 76.2-92.5 mm, 12.7 mm Posts, M6

The M-VPT-3 Translating Optical Post Holder provides precise 76.2 to 92.5 mm vertical adjustment for 12.7 mm diameter optical post mounted components. Posts can be coarsely set, precisely adjusted for height, and then locked for high stability. A threaded M6 hole in the base can be used with the M-PS-A Pedestal Post Adapter.

Specifications

Technical Specs

Type
Optical Post Holder
Height
76.2-92.5 mm
Thread Type
M6

Pack Quantity
1
Inside Diameter
12.7

Type
Optical Post Holder
Height
76.2-92.5 mm
Thread Type
M6

Pack Quantity
1
Inside Diameter
12.7

Resources & Downloads

3D Product Models

2D Product Drawings

VPT-S(180.9 kB, PDF)

Other

M-VPT-3 RoHS Certificate(0, PDF)
