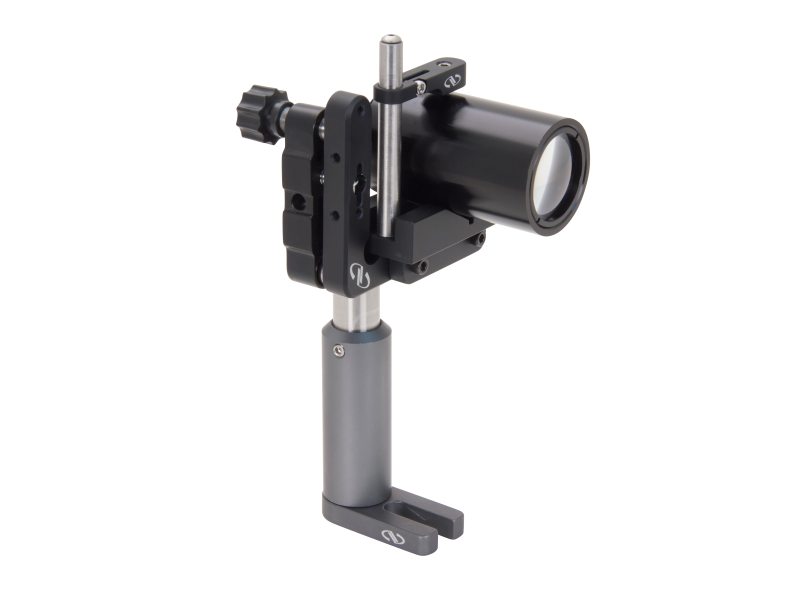

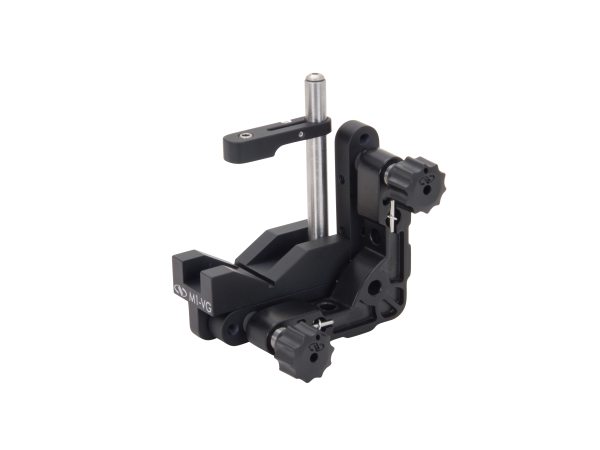

V-Groove Mount, M1, 2 Knob Actuators

The M1-VG V-Groove mounts are ideal for mounting cylindrical objects like lens tubes. The M1-VG has a large Vie platform for holding cylindrical objects from 0.25 in. (6.4 mm) to 1.5 in (38.1 mm) in diameter. The M1-VG is configurable for right- or left-handed operations. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec

Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Special Features
V-Groove Mount

Mechanism
Kinematic
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec

Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Special Features
V-Groove Mount

Resources & Downloads

3D Product Models

2D Product Drawings

M1-VG-354(163.7 kB, PDF)

Other

M1-VG RoHS Certificate(278.1 kB, PDF)
