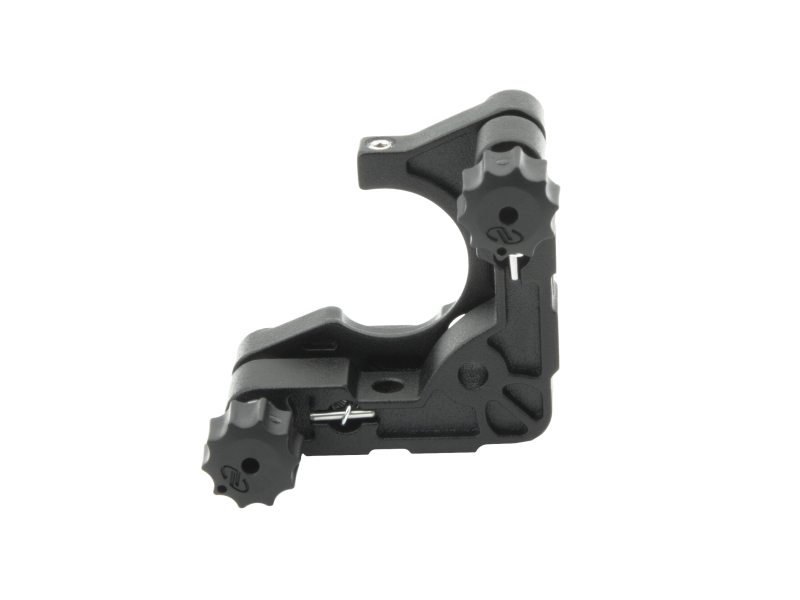

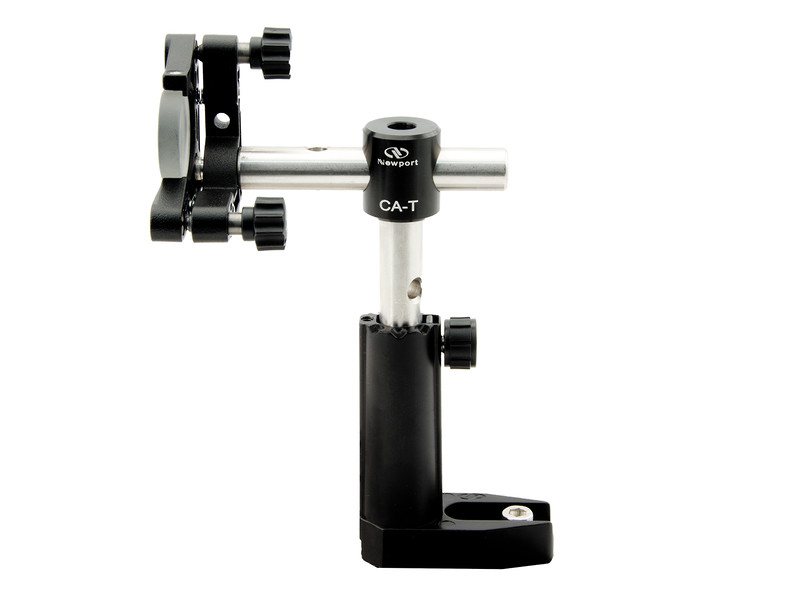

Mirror Mount, Lab Standard, Clear Edge, 1.0 in., 2 Knob Actuators

The M1Q Mirror Mount is ideal for general purpose applications that require a compact, robust, kinematic design at an economical price. The M1Q has a clear edge-aperture for 1 inch (25.4 mm) diameter optics. UPA-series adaptors, which are compatible with the M1 mount, allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment. This product is also available in 10-piece saving pack M1Q-PK.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy

Angular Range
±4°
Optic Loading
Front
Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy

Angular Range
±4°
Optic Loading
Front
Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

M1Q Drawing(324.6 kB, PDF)

Other

M1Q RoHS Certificate(278.8 kB, PDF)
M1Q_RoHS2021.pdf(682.2 kB, PDF)
