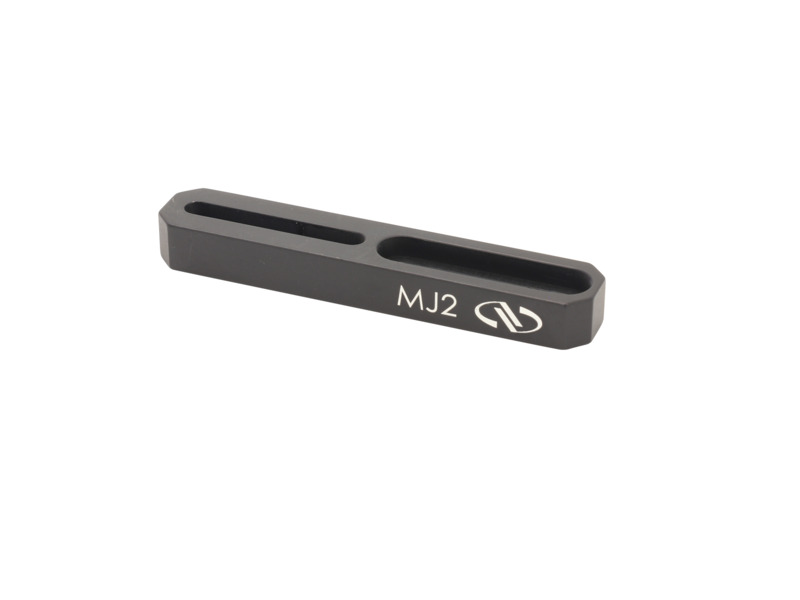

Offset Mounting Post Joist, 10-70 mm

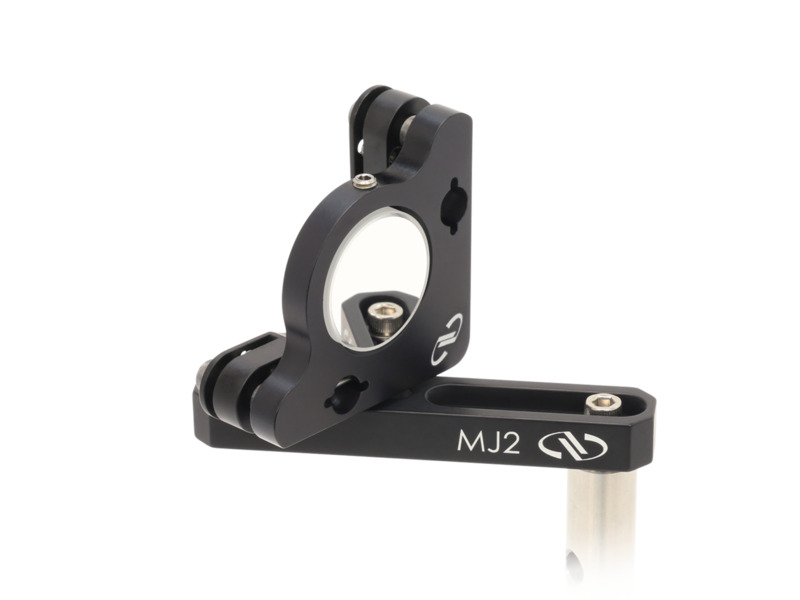

The MJ2 provides adjustable, offset mounting of optomechanical elements with approximately 10-70 mm (~0.40-2.75”) offset from the post center to the optomechanical component mount. The MJ2 has two counterbored, 30.5 mm (1.2”) slots with opposing orientations to allow for post mounting and optomechanical component mounting respectively.
Resources & Downloads
3D Product Models
2D Product Drawings
MJ2 MJ3 DWG(74.6 kB, PDF)
Other
MJ_RoHS2021.pdf(282.7 kB, PDF)
