Cube Mount Base, Optics Cage Plus

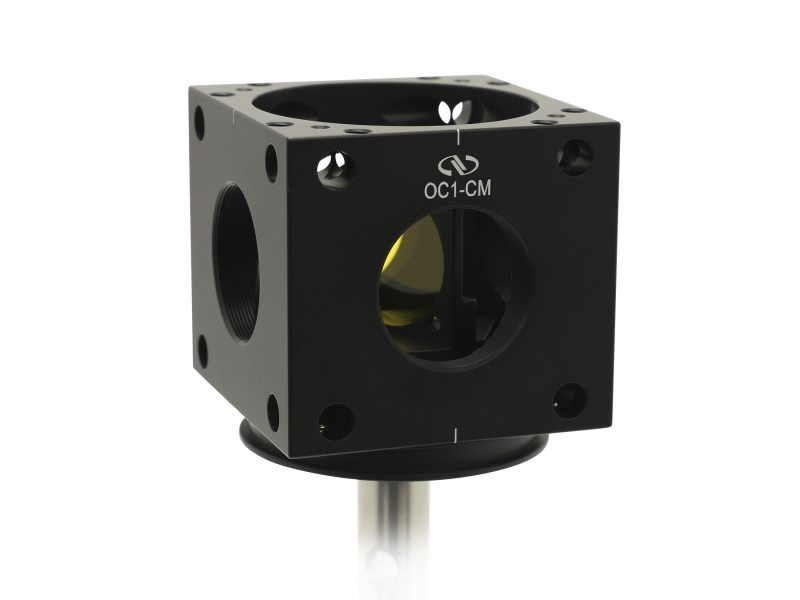

Optics Cage Plus Mounting Cube

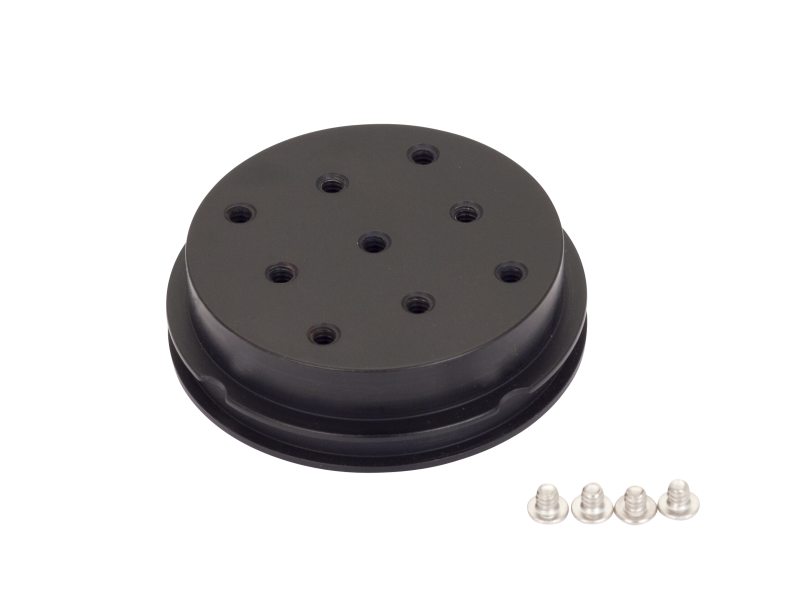

OC1-CM-B Cube Mount Base is designed to support OC1-CM-P prism mount, OC1-CM-F beamsplitter mount, or OC1-CM-D dichroic filter mount within the OC1-CM mounting cube. It features an 8-32 threaded hole at the bottom for post mounting.

Specifications

Technical Specs

Type
Cube Base
Material
Aluminum

Type
Cube Base
Material
Aluminum

Resources & Downloads

Drawings And Cad

OC1-CM-B-334(121.2 kB, PDF)

Other

OC1-CM-B RoHS Certificate(277.5 kB, PDF)
