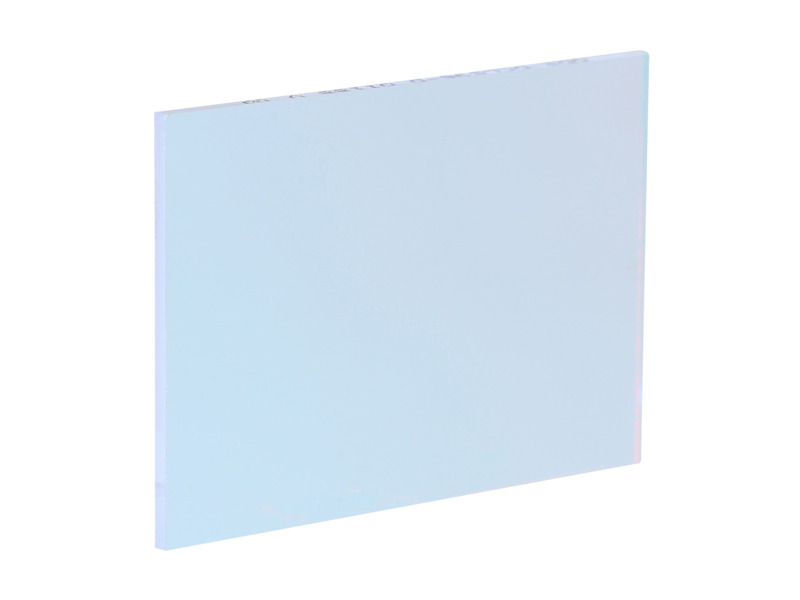

ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 596 nm 50% Cut-on Edge Wavelength

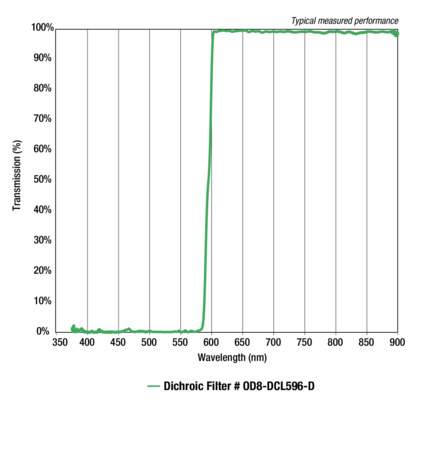

ODiate® Fluorescence Dichroic Beamsplitters

The OD8-DCL596-D Dichroic Beamsplitter is specified to reflect the excitation and transmit the emission of mCherry / TexasRed and supports similar alternative fluorophores, designed in conjunction with OD8-EX565-59-B and OD8-EM629-52-B. The filter is manufactured to provide maximum signal and sensitivity delivering exceptionally high excitation passband reflection ≥ 98% avg and emission passband transmission ≥ 96% avg for a 596 nm 50% Cut-on edge wavelength.

In addition to mCherry & TexasRed the following fluorophores are also compatible with this set:

5-ROX, Abberior CAGE 590 (uncaged), Abberior STAR 580, Abberior STAR ORANGE, Alexa Fluor^® 568, Alexa Fluor^® 594, AsRed2, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY^® TR-X, BODIPY^® TR-X (Phallacidin), Calcium Crimson, CellTrace BODIPY^® TR, CellTracker Red CMTPX, CF 583, CF 594, Cresyl Violet perchlorate, Crystal Violet (glycerol), FluoSpheres^® Red, FusionRed, HCS LipidTOX Red Neutral Lipid Stain, HCS LipidTOX Red Phospholipidosis, Katushka2S, LIVE/DEAD^® Fixable Red Dead Cell Stain, MitoTracker^® Red, mKate2, mPlum, mRFP1, Nile red, Nile red (phospholipid), PromoFluor-594, ReAsH, Spectrum Red, Texas Red^® (Dextran), Texas Red™ DHPE, Texas Red^® R-PE, Texas Red^®-X, TurboFP602, TurboFP635, TurboFP650, X-rhod-1,X-Rhod-5F.

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

Specifications

Technical Specs

Type
Fluorescence Dichroic Beamsplitter
Cut-on/Cut-off Wavelength
596 nm (50%)
Reflectance Band
≥98% avg, 543-587.5 nm
≥98% avg, 375-587.5
Transmittance Band
≥96% avg, 604.5-652 nm
≥95% avg, 604.5-900 nm
Transmitted Beam Deviation
≤ 1 wave PV @ 632.8 nm
Angle of Incidence
45°±1.5°
Cone Half-angle
< 2°
Material
Fused Silica
Size
25.2 x 35.6 mm

Thickness
1.0 mm
Thickness Tolerance
±0.1 mm
Surface Quality
60-40 scratch-dig
Parallelism
≤ 5 arcsecond
Fluorophores
mCherry & TexasRed
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Operating Temperature
-50 to 100°C
Cleaning
See How to Clean Optics

Type
Fluorescence Dichroic Beamsplitter
Cut-on/Cut-off Wavelength
596 nm (50%)
Reflectance Band
≥98% avg, 543-587.5 nm
≥98% avg, 375-587.5
Transmittance Band
≥96% avg, 604.5-652 nm
≥95% avg, 604.5-900 nm
Transmitted Beam Deviation
≤ 1 wave PV @ 632.8 nm
Angle of Incidence
45°±1.5°
Cone Half-angle
< 2°
Material
Fused Silica
Size
25.2 x 35.6 mm

Thickness
1.0 mm
Thickness Tolerance
±0.1 mm
Surface Quality
60-40 scratch-dig
Parallelism
≤ 5 arcsecond
Fluorophores
mCherry & TexasRed
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Operating Temperature
-50 to 100°C
Cleaning
See How to Clean Optics
