ODiate® Emission Filter, 25.0 mm, 593 nm CWL, 54 nm FWHM

The OD8-EM593-54-B Emission Filter is specified for emission of TRITC and supports similar alternative fluorophores, designed in conjunction with OD8-EX539-31-B and OD8-DCL561-D. The filter is manufactured to provide maximum signal and sensitivity delivering exceptionally high passband transmission ≥ 96% avg for 593 nm CWL and 54 nm FWHM and enhanced blocking ≥ OD10 avg over the corresponding excitation passband.

Alternate Fluorophores

In addition to TRITC the following fluorophores are also compatible with this set:

5-TAMRA (MeOH), Abberior CAGE 552 (uncaged), Abberior FLIP 565 (on state), Alexa Fluor^® 546, Alexa Fluor^® 555, ATTO 550, BODIPY^® TMR-X, C3-Thiacyanine (EtOH), C3-Thiacyanine (PrOH), Calcium Orange, CellMask Orange, CF 543, CF 555, CF 568, Cy^®3, DiI, DiIC18 (3), DsRed, DsRed Express, DsRed Tandem-Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask Orange, HiLyte Fluor 555, HiLyte Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker^® Orange, mOrange, mOrange2, OFP, PO-PRO-3, Pontamine Fast Scarlet 4B, POPO-3, Pro-Q^® Diamond, PromoFluor-546, PromoFluor-555, Quasar^® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX^® Orange, TagRFP, tdTomato, Tetramethylrhodamine (TAMRA, TRITC), TurboRFP.

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

Specifications

Technical Specs

Type
Fluorescence Emission Filter
Fluorophores
TRITC
Material
BOROFLOAT^® 33
Center Wavelength
593 nm
FWHM
31 nm
Angle of Incidence
0°±5°
Cone Half-angle
<7°
Size
Ø25.0 mm
Size Tolerance
+0.0/-0.1 mm
Thickness
2.0 mm (substrate)
3.5 mm (housing)

Surface Quality
60-40 scratch-dig

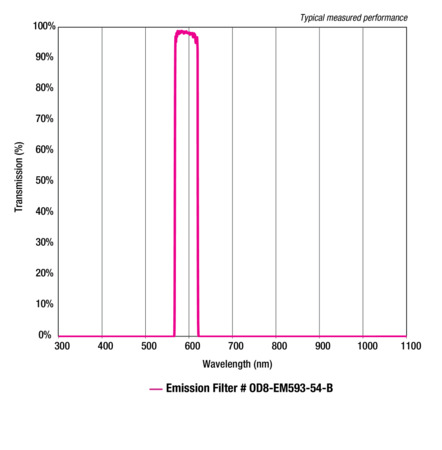

Transmission
≥ 96% avg, 569-617 nm
Parallelism
≤10 arc seconds
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Enhanced Excitation Blocking Range
≥ OD10 avg, 526-552 nm (verified as ≥ OD8 avg)
Blocking Range #1
≥ OD6 avg, 300-557.5 nm
Blocking Range #2
≥ OD4 @ 560.5 nm
Blocking Range #3
≥ OD6 avg, 635.5-900 nm
Blocking Range #4
≥ OD3 avg, 900-1100 nm
Temperature Range
-50 to 100°C

Type
Fluorescence Emission Filter
Fluorophores
TRITC
Material
BOROFLOAT^® 33
Center Wavelength
593 nm
FWHM
31 nm
Angle of Incidence
0°±5°
Cone Half-angle
<7°
Size
Ø25.0 mm
Size Tolerance
+0.0/-0.1 mm
Thickness
2.0 mm (substrate)
3.5 mm (housing)

Surface Quality
60-40 scratch-dig
Transmission
≥ 96% avg, 569-617 nm
Parallelism
≤10 arc seconds
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Enhanced Excitation Blocking Range
≥ OD10 avg, 526-552 nm (verified as ≥ OD8 avg)
Blocking Range #1
≥ OD6 avg, 300-557.5 nm
Blocking Range #2
≥ OD4 @ 560.5 nm
Blocking Range #3
≥ OD6 avg, 635.5-900 nm
Blocking Range #4
≥ OD3 avg, 900-1100 nm
Temperature Range
-50 to 100°C
