High-Energy Pinhole, Molybdenum, 15 µm, Unmounted
High-Energy Pinhole, Molybdenum, 15 µm, Unmounted
Model: PH-15
Product Series Overview
High Energy Unmounted Molybdenum PinholesThe PH-15 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 15 ± 1.5 µm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is unmounted.
Resources & Downloads
Other
PH-15 RoHS Certificate(263.1 kB, PDF) PH-15_ROHS2-2021.pdf(279.8 kB, PDF)
Related Products
Customers Who Bought This Item Also Bought
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| PH-10High-Energy Pinhole, Molybdenum, 10 µm, Unmounted | |||||
| PH-20High-Energy Pinhole, Molybdenum, 20 µm, Unmounted | |||||
| PH-30High-Energy Pinhole, Molybdenum, 30 µm, Unmounted | |||||
 | 900PH-15High-Energy Pinhole, Molybdenum, 15 µm, 900 Series | |||||
| 900PH-20High-Energy Pinhole, Molybdenum, 20 µm, 900 Series | |||||
| PH-25High-Energy Pinhole, Molybdenum, 25 µm, Unmounted |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

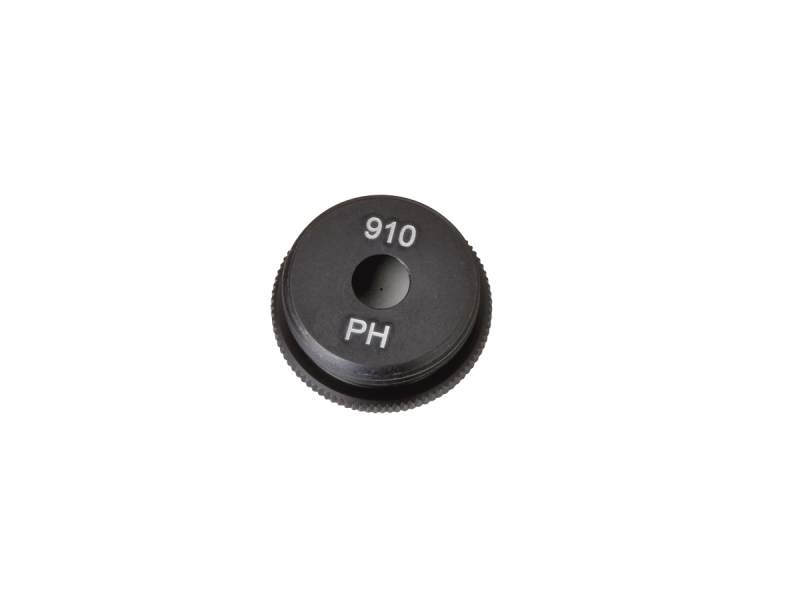

 | 910P-MNTHigh-Energy Pinhole, Requires Molybdenum Pinhole, 0.875-20 Thread, 910A Series | |||||
 | 910ASpatial Filter, Compact, Five-Axis, XY θxθy 100TPI, Z 80TPI | |||||
 | 900P-MNTHigh Energy Pinhole Mount, Requires Unmounted Pinhole | |||||

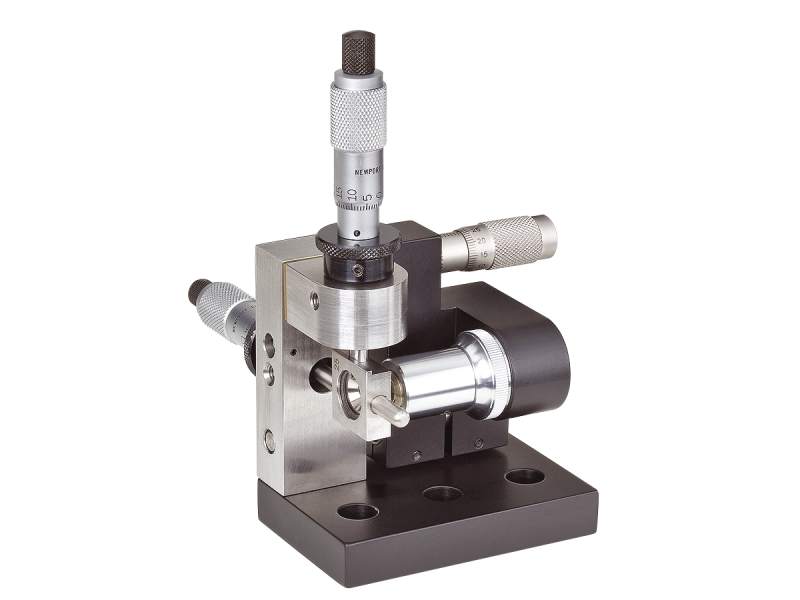

 | 900Spatial Filter, Three-Axis | |||||
 | M-900Spatial Filter, Three-Axis, Metric |
