Optical Pedestal, Forkless Mounting, 1 in. Height, 1 in. Diameter, 8-32
Optical Pedestal, Forkless Mounting, 1 in. Height, 1 in. Diameter, 8-32
Model: PX-1F
Product Series Overview

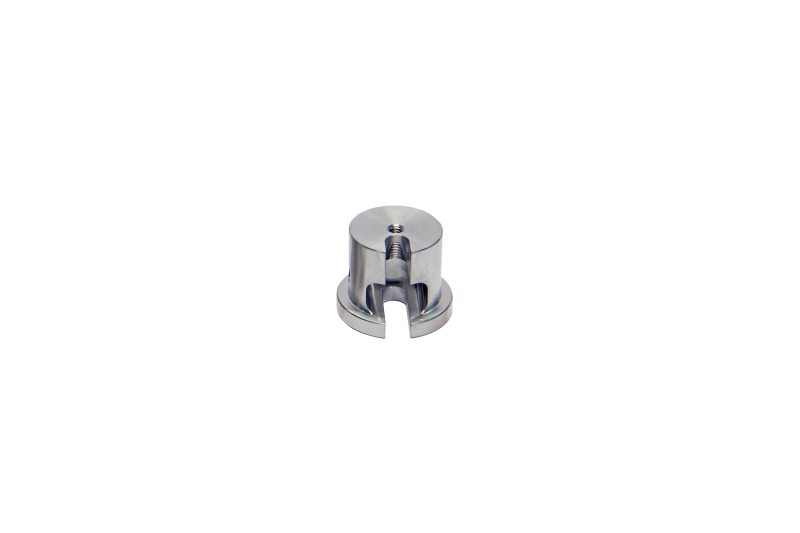

1.0 in. Optical Pedestals, PX Series ForklessThe PX-1F Forkless Optical Pedestal has a unique internal slotted base allowing it to be directly mounted to an optical table without a clamping fork. The 0.755 in. long slot provides flexibility in positioning the pedestal before securing it to one of the optical table's holes. This patent-pending feature saves 3X the space of a standard pedestal while still providing positional flexibility and long-term stability. This 1.0 in. diameter stainless steel post has a 1.0 in. height. Cross-drilled holes allow 3/16 in. hex wrenches to aid in tightening and loosening assembled posts.
Resources & Downloads
3D Product Models
2D Product Drawings
PX-SERIES-Pedestal.pdf(411.8 kB, PDF)
Other
PX-1F RoHS Certificate(279.5 kB, PDF) PX-1F_RoHS2021.pdf(688.1 kB, PDF)
