Post Mount, Beam Tube, Aegis Qube™ Series
Post Mount, Beam Tube, Aegis Qube™ Series
Model: Q-BT-P
Product Series Overview

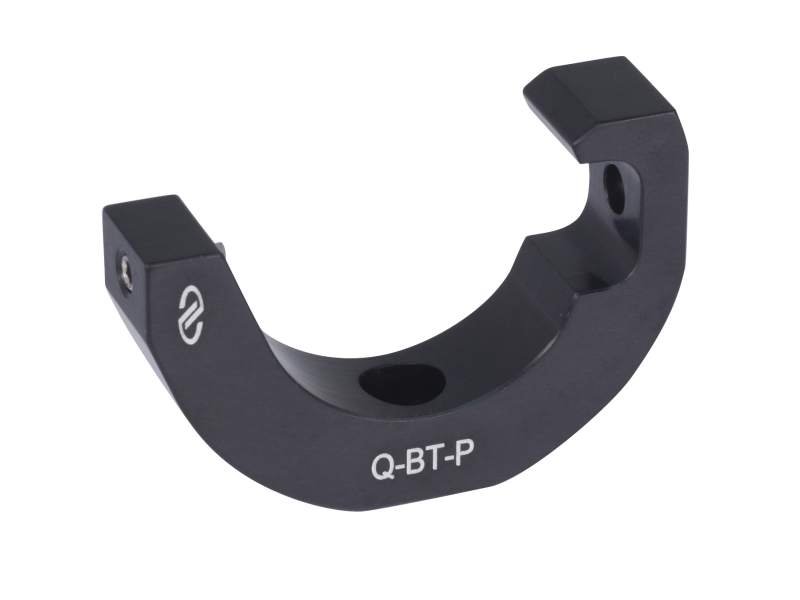

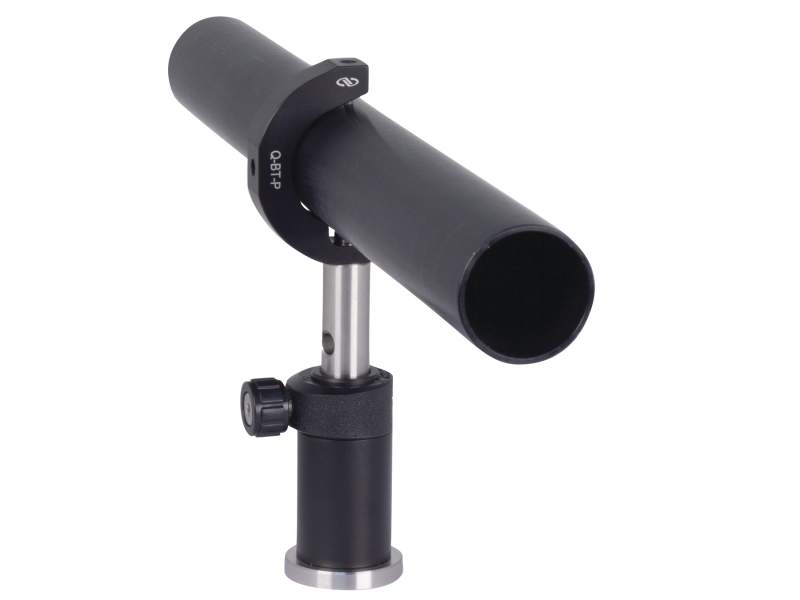

Beam Tubes, Aegis QubeBeam tubes can be post-mounted using the Q-BT-P Beam Tube Mount. Its innovative design includes an open side allowing beam tubes to be easily added or removed from a set up. This open-side feature also allows the BT-series beam tubes to be mounted in the closest possible proximity; actually touching. An additional counterbored clearance hole (for 8-32 or M4 caphead screws) allows the Q-BT-P to mounted with the open side facing up providing the advantage of having the beam tubes added or removed from above the setup.
Resources & Downloads
Drawings And Cad
Q-BT-P-1(113.5 kB, PDF)
Other
Q-BT-P RoHS Certificate(278.5 kB, PDF) Q-BT-P_RoHS2021.pdf(680.2 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | Q-BT-2Beam Tube, 2 inch, Aegis Qube™ Series | |||||
 | Q-BT-6Beam Tube, 6 inch, Aegis Qube™ Series | |||||
 | Q-BT-12Beam Tube, 12 inch, Aegis Qube™ Series | |||||
 | Q-BT-3Beam Tube, 3 inch, Aegis Qube™ Series | |||||
 | Q-BT-1Beam Tube, 1 inch, Aegis Qube™ Series | |||||
 | Q-BT-4.5Beam Tube, 4.5 inch, Aegis Qube™ Series |
