Optical Post Holder, 1.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork

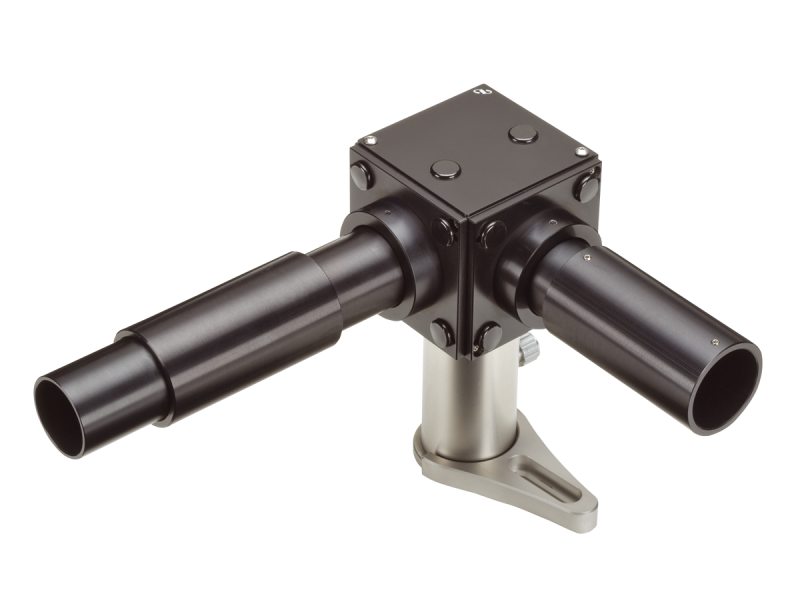

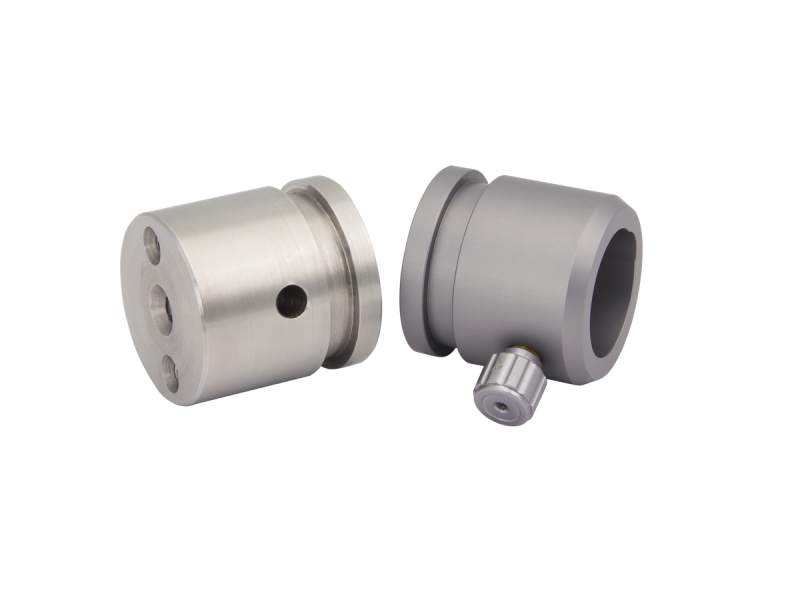

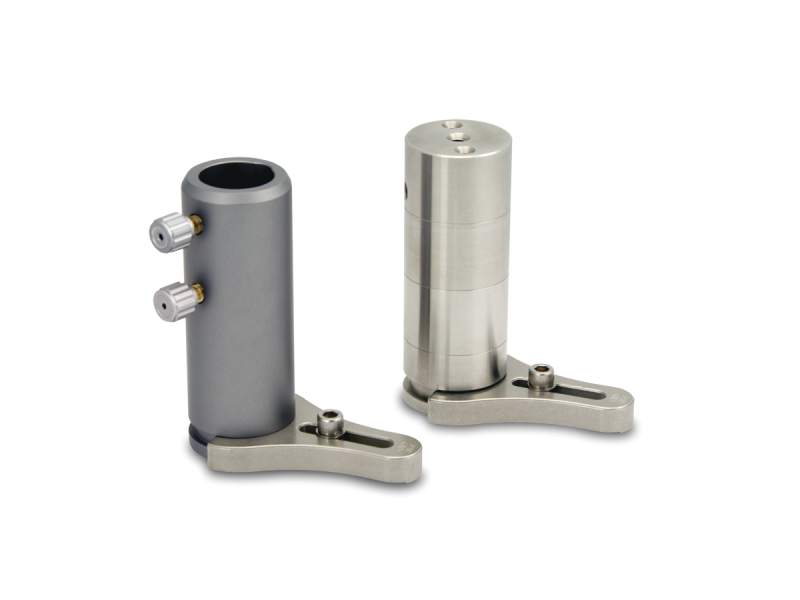

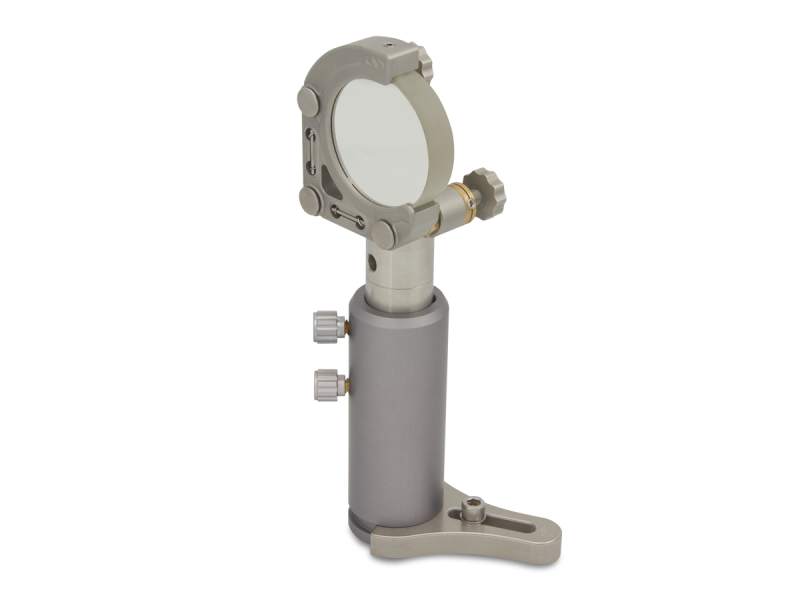

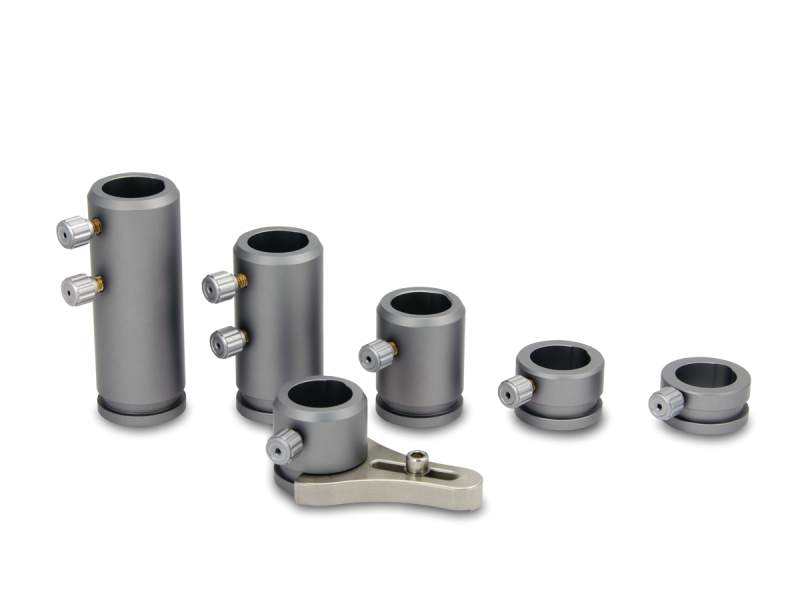

The Q-TMS-1 Optical Pedestal Post Holder with Clamping Fork provides a means to hold and adjust the PS series Pedestal and Extension Posts. This 1.0 in. (25.4 mm) height holder for 1.0 in. (25.4 mm) diameter pedestal posts includes a clamping fork to allow mounting anywhere on an optical table. These holders are ideal for the Aegis Qube beam routing system.

Specifications

Technical Specs

Type
Pedestal Post Holder
Height
25.4 mm

Inside Diameter
25.4 mm

Type
Pedestal Post Holder
Height
25.4 mm

Inside Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

New Q-TMS(471.6 kB, PDF)

Other

Q-TMS-1 RoHS Certificate(259.9 kB, PDF)
