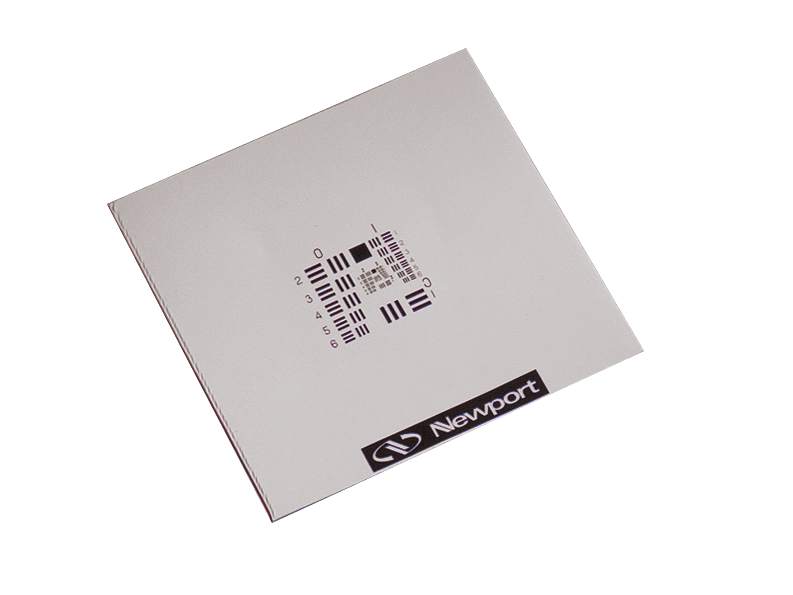

RES-2 Resolution Test Target

The RES-2 Resolution Test Targets is emulsion on paper positives and may be used for photo lens testing. The RES-2 is a lesser expensive alternative to our RES-1 glass test target. Please note that for RES-2, the printing of higher resolution groups beyond Group 4 – Element 4 is done on a best effort basis. Because the grain structure of the paper substrate is unable to support the smaller features, the lines pairs become indiscernible at the higher resolutions. For the most stringent applications, please choose RES-1.

Specifications

Technical Specs

Type
Resolution Test Target
Dimensions
50 x 50 mm
Material
Heavy White Paper

Type
Resolution Test Target
Dimensions
50 x 50 mm
Material
Heavy White Paper

Resources & Downloads

Other

RES-2_ROHS2-2021.pdf(278.5 kB, PDF)
