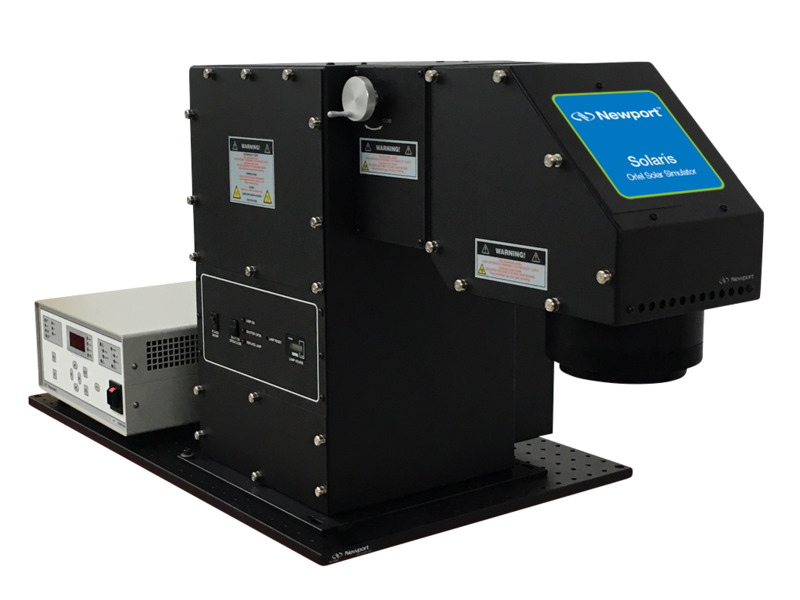

Solaris Solar Simulator, Class A+AA, IEC, 450 W Xenon, 2 x 2 in.

The SOLARIS-2 is a Class A+AA Solar Simulator with a 450 Watt Xenon, Ozone Free source illuminated over a 2 inch x 2 inch area, certified to IEC 60904-9:2020 standards for Spectral Match, Spatial Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. This model uses a single lamp design to meet performance criteria without compromising the 1 SUN output power.

Specifications

Technical Specs

Simulator Class
Class A+AA
Lamp Type
Xenon
Lamp Wattage
450 W
Output Beam Size
2 x 2 in.
Beam Uniformity
≤2%
Beam Divergence, Half Angle
<±4 °
Typical Output Power
100mW/cm2 (1 Sun)±20% Adjustable
0.1 to 1.0 Sun with Attenuator

Temporal Instability
≤0.5% STI≤2.0% LTI
Temporal Instability Classification
A (IEC 60904-9 2020)
Uniformity
≤2 %
Uniformity Classification
A (IEC 60904-9 2020)
Working Distance
12.0 ±0.5 in.
Line Regulation
0.01%
Power Requirements
Lamp Housing: 95-264 VAC / 3A (Max) / 47 - 63 Hz
Power Supply: 95-264 VAC / 12A (Max) / 47 - 63 Hz
