Plano-Concave Lens, Nano-Textured Fused Silica, 12.7 mm, -44.4 mm EFL, 500-1100 nm

Nanotexture Surface Plano-Concave Lenses

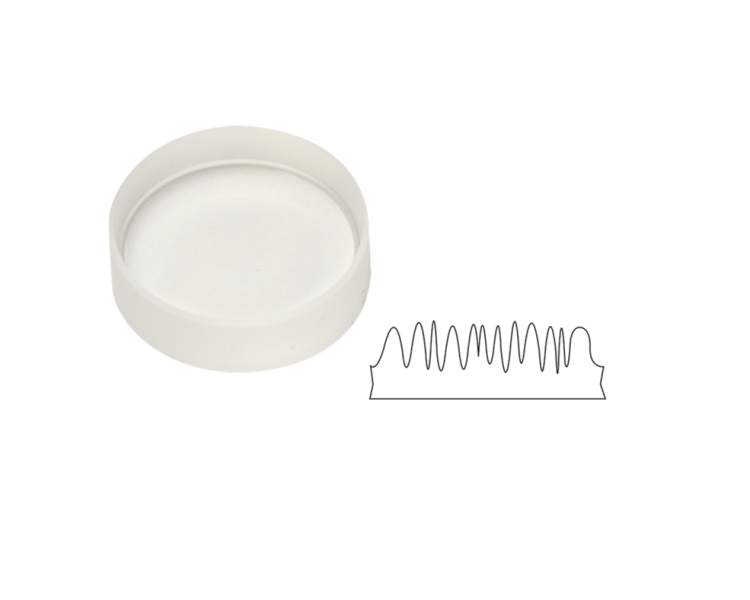

The SPC502RAR.L Fused Silica Plano-Concave Lens is made of high purity UV Grade Fused Silica Corning 7980 0A material. It is 12.7 mm diameter plano-concave lens with an effective focal length of -44.4 mm. The front and back surfaces have sub-wavelength nano-textures etched into the surface creating a high performance anti-reflection effect. The RAR.L pattern is optimized for 500-1100 nm. The surface quality of the lens is 10-5 scratch dig with high damage thresholds.

Specifications

Technical Specs

Lens Shape
Plano-Concave
Diameter
12.7 mm
Lens Material
UV Fused Silica
Antireflection Coating
500-1100 nm
Reflectivity
R<0.1% @ 500-800 nm, R<0.3% @ 900-1100 nm
Surface Quality
10-5 scratch-dig
Surface Accuracy, Irregularity
λ/10 at 632.8 nm, power removed

Radius of Curvature (R)
-20.34 mm
Edge Thickness (Te)
4.0 mm
Center Thickness (Tc)
3.0 mm
Design Wavelength
589 nm
Chamfers
0.4 mm bevel
Chamfers Angle/Tolerance
45 ±15°
Clear Aperture
≥ central 67% of diameter

Lens Shape
Plano-Concave
Diameter
12.7 mm
Lens Material
UV Fused Silica
Antireflection Coating
500-1100 nm
Reflectivity
R<0.1% @ 500-800 nm, R<0.3% @ 900-1100 nm
Surface Quality
10-5 scratch-dig
Surface Accuracy, Irregularity
λ/10 at 632.8 nm, power removed

Radius of Curvature (R)
-20.34 mm
Edge Thickness (Te)
4.0 mm
Center Thickness (Tc)
3.0 mm
Design Wavelength
589 nm
Chamfers
0.4 mm bevel
Chamfers Angle/Tolerance
45 ±15°
Clear Aperture
≥ central 67% of diameter
