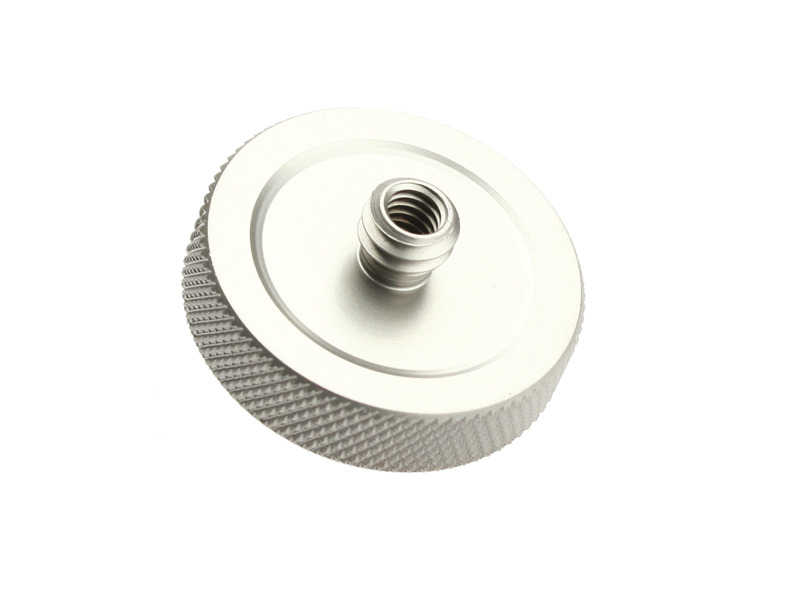

Thread Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20

The SS-1-B Thread Adaptor converts a 1/4-20 hole into an 8-32 for mounting components close to the table surface. 1.0 in. diameter with a 1/4 in. height.

Specifications

Technical Specs

Type
Thread Adapter
Height
6.35 mm

Material
Stainless Steel
Diameter
25.4 mm

Type
Thread Adapter
Height
6.35 mm

Material
Stainless Steel
Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

Ss1a-S(152.5 kB, PDF)

Other

SS-1-B RoHS Certificate(277.4 kB, PDF)
SS-1-B_RoHS2021.pdf(679.7 kB, PDF)
