Mirror Mount, Suprema, Threaded Rear Load, 2.0 in., (3) 100-TPI Locking Knob Actuators
Model: ST200T-R3K
Product Series Overview

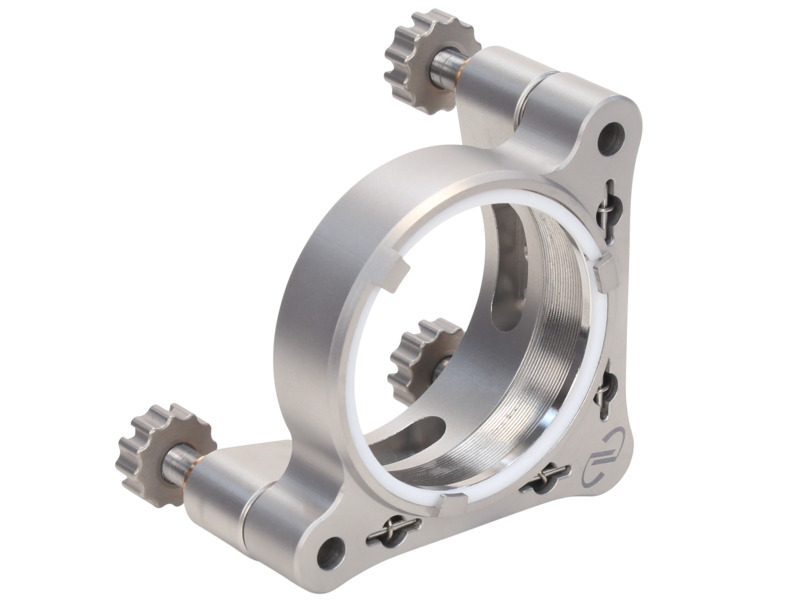

Suprema® Low-Drift Mirror MountsThe ST200T-R3K Suprema® Stainless Steel 2.0 inch rear-load kinematic mirror mount offers superior performance in a compact footprint. Three 100 TPI precision adjustment screws can be aligned easily using integrated knobs for a ±5° tip and tilt range as well as translation. The mount also features a lever lock for each actuator that can be adjusted with a 5/64 in. (M2) Allen wrench to prevent unwanted movement. Ideal for OEM applications, the ST200T-R3K mount incorporates six 8-32 (M4) counterbored thru-holes for mounting purposes. In addition, we have incorporated pin slot cuts for standard 5/64 in. dowel pins to enable repeatable system integration and to prevent clocking effects.
Soft Contact Rear Optic Loading
This mount features a rear-loading optic face plate, a retaining ring and an additional PTFE backup ring that provide soft contact to gently secure the optical component from the rear, holding it against three points on the front plate of the mount. The threaded retaining ring accommodates variable optic thicknesses.
Resources & Downloads
3D Product Models
2D Product Drawings
ST200T-R2K & ST200T-R3K Drawing(169.7 kB, PDF)
