Mirror Mount, Suprema, Threaded Rear Load, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators
Model: ST50T-R3H
Product Series Overview

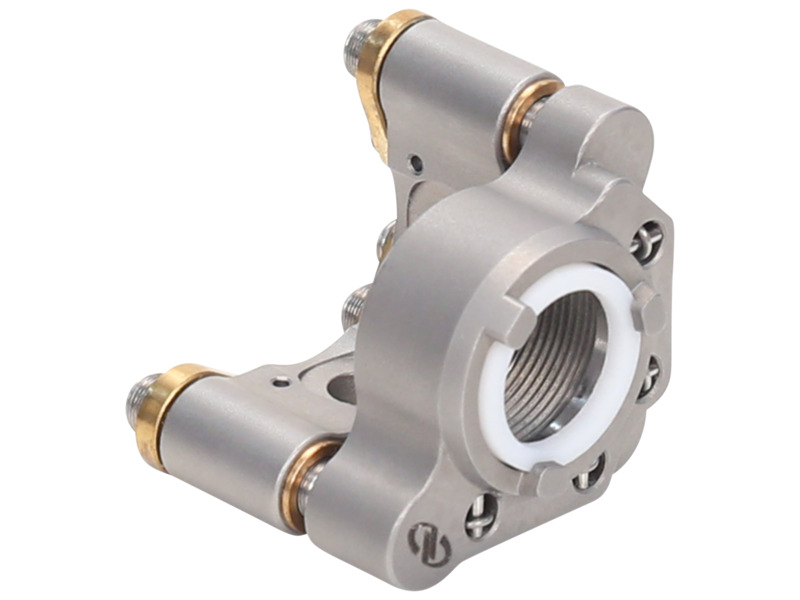

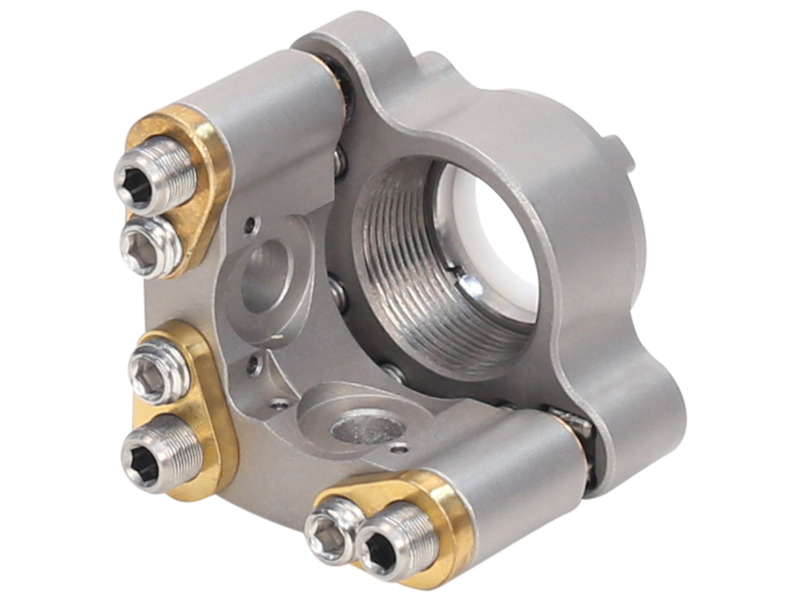

Suprema® Hex-Driven Mirror MountsThe ST50T-R3H Suprema® Stainless Steel Stainless Steel 0.5 inch rear-load kinematic mirror mount offers superior performance in a compact footprint. It features a rear-loading optic face plate designed for holding ½ inch (12.7 mm) diameter optics at a height of ½ inch. Three 100 TPI precision adjustment screws can be aligned using a 5/64 in. (M2) Allen wrench for a ±5° tip and tilt range as well as translation. The mount also features a lever lock for each actuator that can be tightened with the same Allen wrench to prevent unwanted movement. Ideal for OEM applications, the ST50T-R3H mount incorporates two #8 (M4) counterbored thru-holes for mounting purposes. In addition, we have incorporated pin slot cuts for standard 5/64 in. dowel pins to enable repeatable system integration and to prevent clocking effects.
Soft Contact Rear Optic Loading
This mount features a rear-loading optic face plate, a retaining ring and an additional PTFE backup ring that provide soft contact to gently secure the optical component from the rear, holding it against three points on the front plate of the mount. The threaded retaining ring accommodates variable optic thicknesses.
Resources & Downloads
3D Product Models
2D Product Drawings
ST50T-R2H & ST50T-R3H Drawing(155 kB, PDF)
