Mirror Mount 10 Pack, Suprema® SU100-F3K, 1.0 in., 3 Knob Adjustment
Model: SU100-F3K-PK
Product Series Overview
Suprema® Low-Drift Mirror MountsUnmatched Performance
The Classic Suprema is the industry's best performing modular optical mount, setting the standard for stability and adjustability in today's demanding research and industrial applications. Suprema mounts provide the feel necessary to tune the most sensitive set-ups and the stability to hold that position better than any other mount on the market.

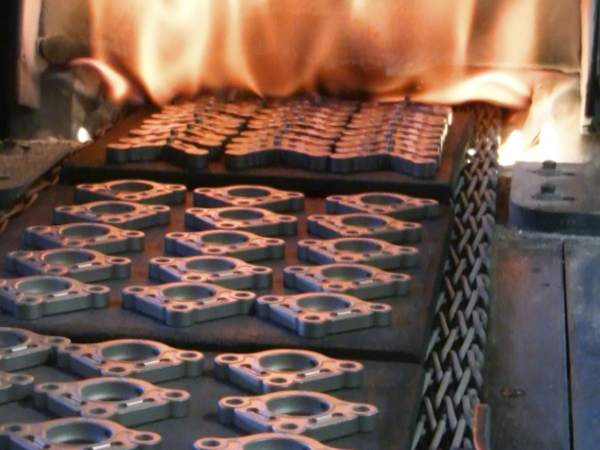

In-Process Heat Treatment
Every Suprema mount is heat treated as part of the fabrication process. Heat treating relieves the build up of fabrication stresses which improve the overall stability of the mount.

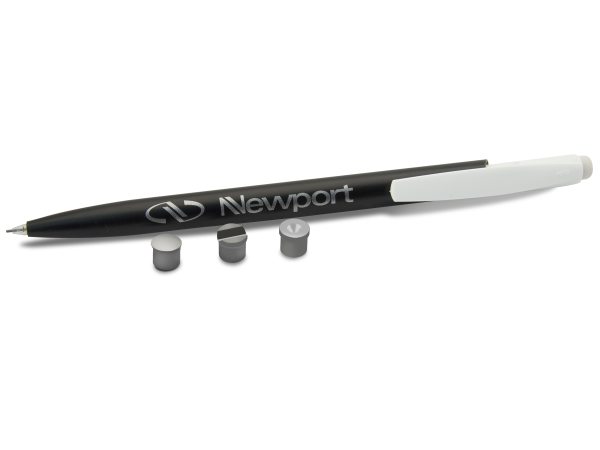

Precision Polished Carbide Pads
All 1" (25.4 mm) and 2" (50.8 mm) Suprema mirror mounts are made with super hard 10 µ-in. precision-polished tungsten carbide kinematic pads ensuring a highly stable kinematic mechanism.

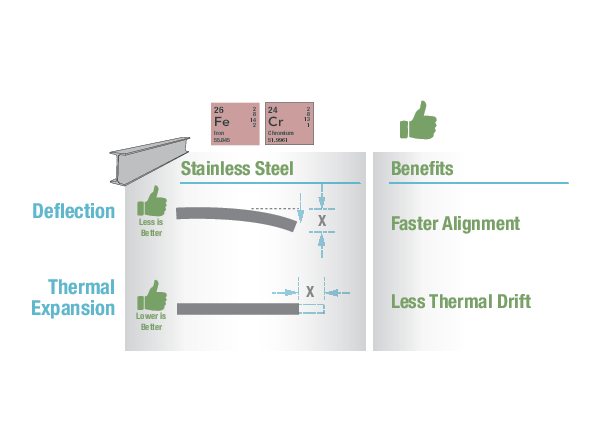

The Stainless Steel Advantage
All Suprema mirror mounts are made from stainless steel making them the most stable and easiest to align. Stainless steel is 3X stiffer than aluminum so it flexes significantly less allowing easier alignment. Stainless steel's coefficient of thermal expansion is lower than aluminum making it more stable during temperature fluctuations. Stainless steel makes Suprema the flag ship of Newport’s mirror mount offering.
Resources & Downloads
Drawings And Cad
SU100 and SX100(287.9 kB, PDF)
Other
SU100-F3K-PK RoHS Certificate(258.1 kB, PDF)
