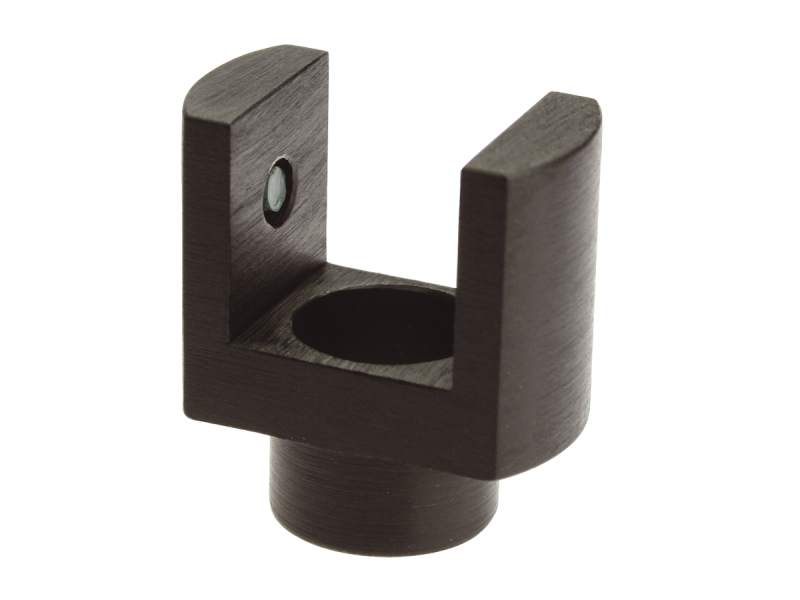

Cube Beamsplitter Holder, 0.5 in. Cubes, For 0.5 in. Mirror Mounts

The UPA-CH.5 Cube Beamsplitter Holder allows 0.5 inch (12.7 mm) cube beamsplitters to be mounted to a 0.5 inch (12.7 mm) mirror mount. They have a clear aperture to allow a transmissive beam to pass through the mount.

Specifications

Technical Specs

Optic Diameter
12.7 mm

Special Features
Mounting adapter

Optic Diameter
12.7 mm

Special Features
Mounting adapter

Resources & Downloads

3D Product Models

2D Product Drawings

UPA-CH5D-S(79.4 kB, PDF)

Other

UPA-CH-5_RoHS2021.pdf(681.1 kB, PDF)
