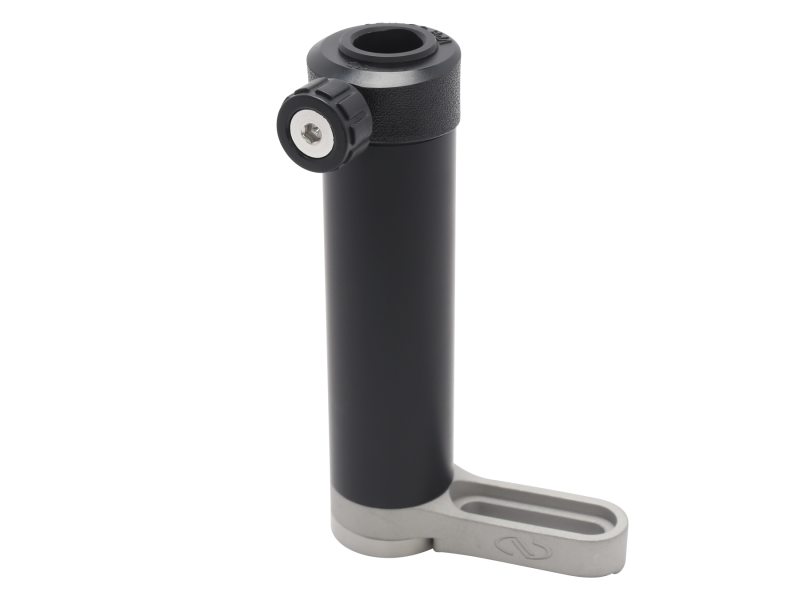

Optical Post Holder, Swivel Base, 4.0 in. Height, 0.5 in. Posts

The VPH-4SC Swivel Clamp Optical Post Holder has a 4 inch (101.6 mm) height, base magnet for initial positioning, and a swivel clamp for aligning with optical table holes for final lock down. The swivel clamp optical post holder also incorporates a spring-loaded brake shoe design which applies a constant force to 0.5 in. (12.7 mm) diameter optical posts even when the thumbscrew is loosened. This allows the orientation of an optical mount to be easily adjusted with one hand.
Resources & Downloads
3D Product Models
2D Product Drawings
VPH-SC Dimensions(203.2 kB, PDF)
Other
VPH-4SC RoHS2-2021 Certificate(677 kB, PDF)
