Optical Post Holder, Translating, Pedestal Base, 3.13-3.46 in., 0.5 in. Posts

Translating Optical Post Holders

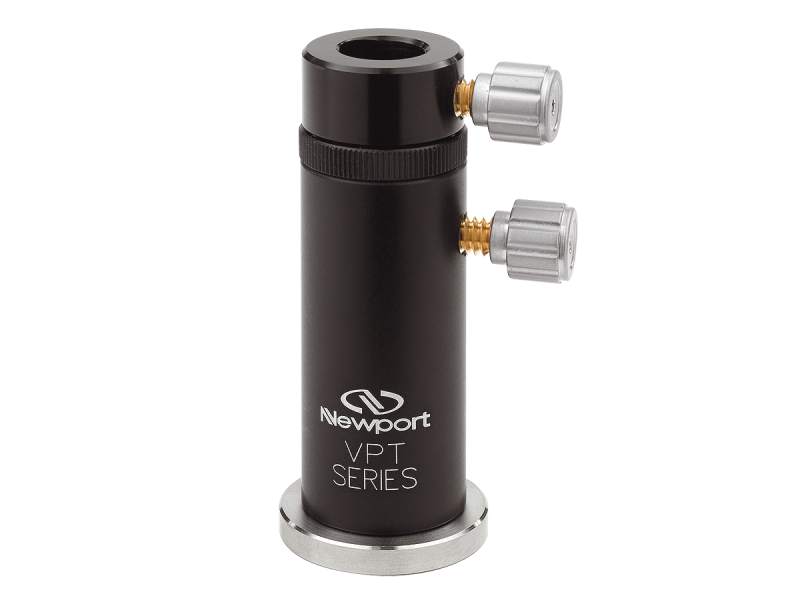

The VPT-3-P Translating Pedestal Post Holder provides precise 3.13 to 3.46 in. vertical adjustment for 1/2 in. post-mounted components. Posts can be coarsely set, precisely adjusted for height, and then locked for high stability.

Specifications

Technical Specs

Type
Pedestal Base Post Holder
Height
79.5-87.9 mm
Thread Type
Pedestal base
Material
Aluminum

Pack Quantity
1
Inside Diameter
12.7

Type
Pedestal Base Post Holder
Height
79.5-87.9 mm
Thread Type
Pedestal base
Material
Aluminum

Pack Quantity
1
Inside Diameter
12.7

Resources & Downloads

Drawings And Cad

VPT-X-P-S(211.7 kB, PDF)

Other

VPT-3-P RoHS Certificate(279.1 kB, PDF)
