Support Rod, Microlock Breadboard, 5 in. Height, 1.56 in. Diameter, 1/4-20

1.5 in. Optical Breadboard Support Posts

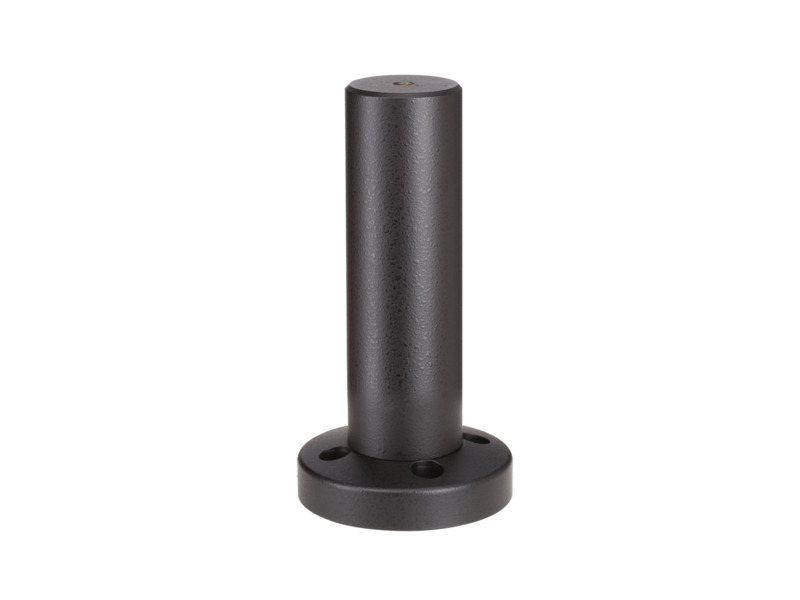

The XP-5 Post attaches directly to Microlock™ Tiedowns in a breadboard providing a stable way to offset a breadboard from its primary support. The post has a 5.0 in. height and 1/4-20 thread. Intermediate heights can be achieved by using the SR-series spacers and extensions or Model P-3, P-5, or P-7 platform posts between the breadboard and the support post.

Specifications

Technical Specs

Type
Optical Support Post
Mounting Holes
1/4-20

Diameter
1.56 in.

Type
Optical Support Post
Mounting Holes
1/4-20

Diameter
1.56 in.

Resources & Downloads

3D Product Models

2D Product Drawings

XP-SERIES Drawing(76.2 kB, PDF)

Other

XP-5 RoHS Certificate(280.1 kB, PDF)

Related Products

1.5-in. Diameter Spacers

Description	Compatibility
Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Learn More
Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Learn More
Pedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Learn More
Pedestal Pillar Spacer, 0.50 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Learn More
