Advanced Motion Control Products
Our advanced motion products represent technology platform solutions with modified standards or custom development including, but not limited to, higher load capacity, higher speed capability, long travel, higher resolution and sensitivity. Below are examples of advanced products in motorized actuators, rotation stages, long travel linear stages and high resolution Z-stage offering.
Contact us or call 877-835-9620 to discuss your custom motion system needs.
Motorized Actuators

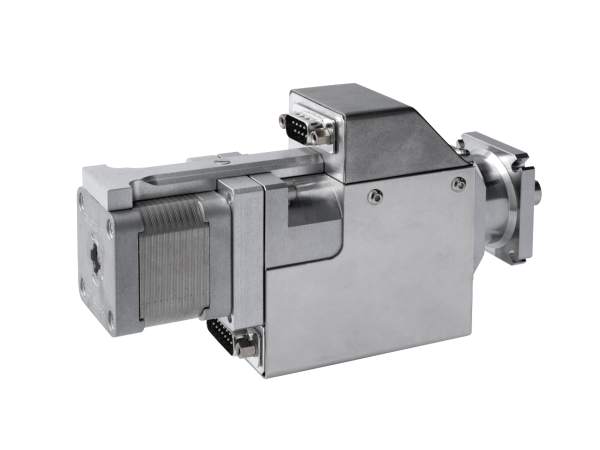

Up to 30 mm travel, 50 kg load capacity, 50 nm resolution, high level of cleanliness

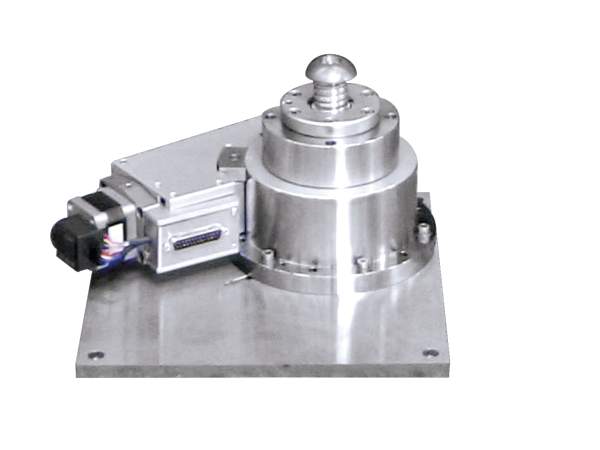

Vertical actuator with 250kg load capacity and V6 preparation, using a RV120 rotary stage and lead screw
Up to 500 kg load capacity, high stiffness with 0.5 µm sensitivity
Rotation Stages

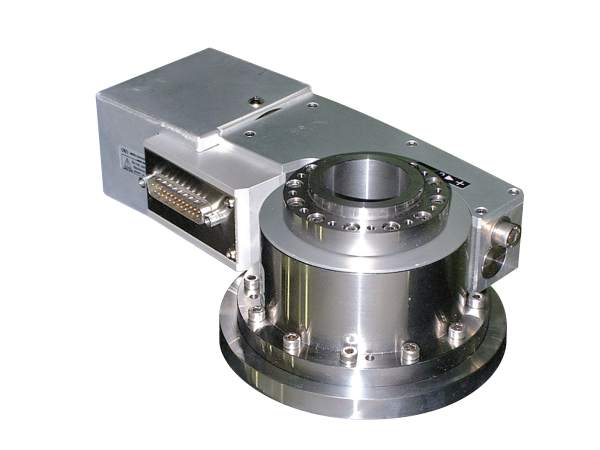

A RVU80V6 used in the kinematic chain of a large mirror mount

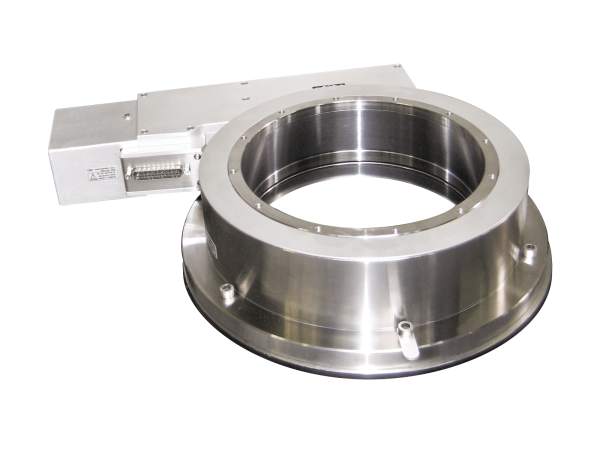

The RVU240 used in an azimuth/elevation mirror mount

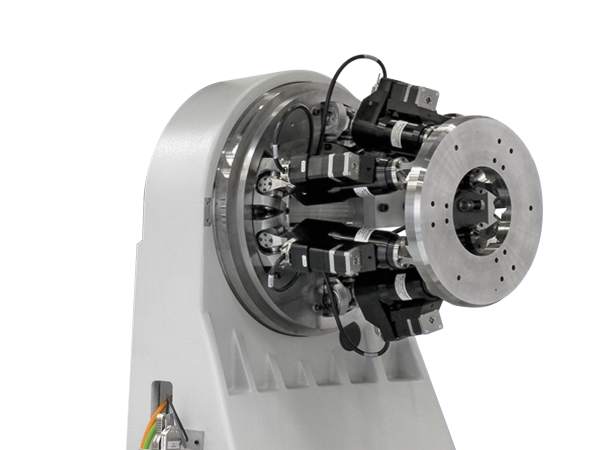

The RVU500 moving an Hexapod with a heavy cantilevered load

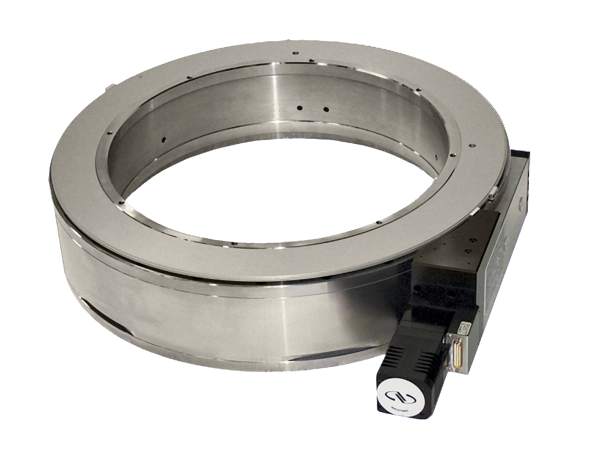

RTM660 rotary stage, 600 kg load capacity. Can support several tons

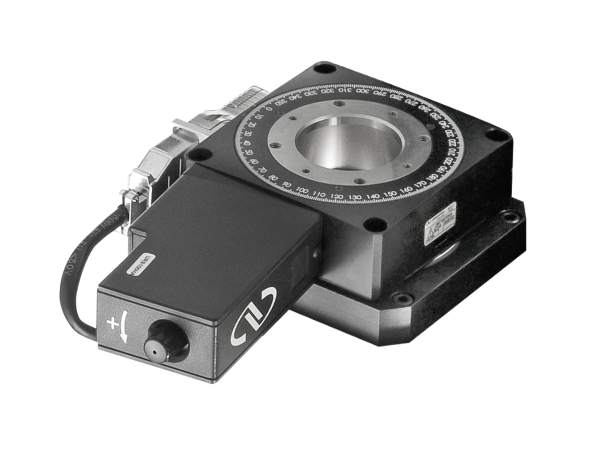

Custom URS stage with direct reading encoder for accuracy of 0.001° with error mapping
Long Travel Linear Stages

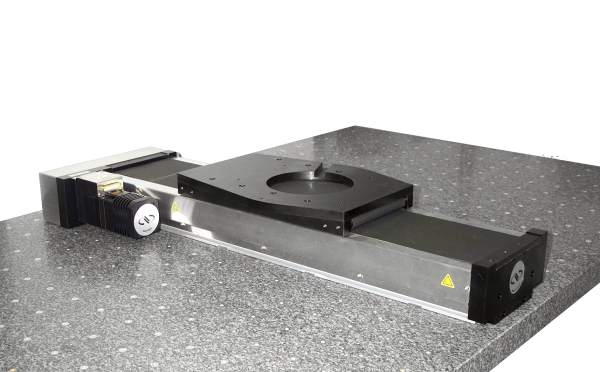

The TBU series stage - travel 400 to 1600 mm. DC or stepper motor, optional linear scale encoder

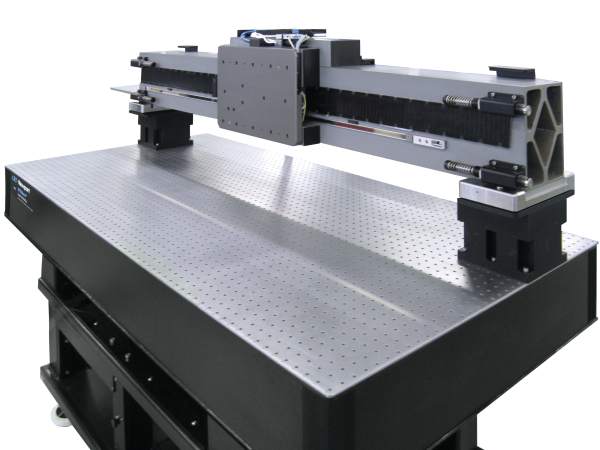

SinguLYS 1200 - high speed, high accuracy stage based on air-bearing carriage and ceramic beam
High Resolution Z-stage

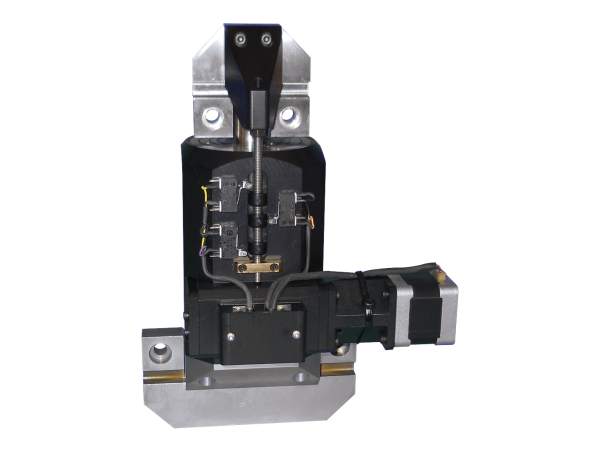

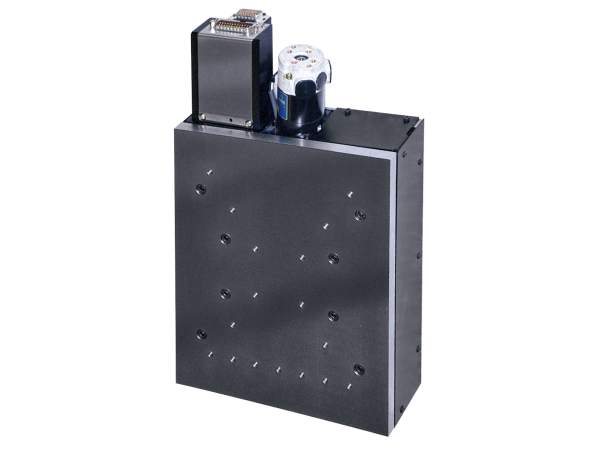

Vertical linear stage with backlash-free ballscrew, 20 kg load capacity, steel construction, 10 nm sensitivity

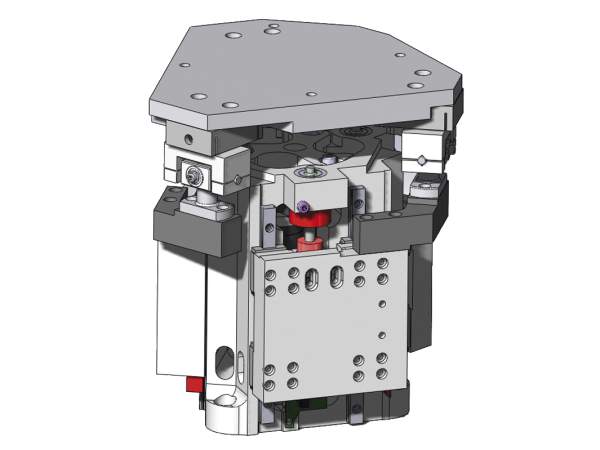

Custom high resolution Z tip tilt stage with 25mm travel in Z, +/- 3° in tip & tilt and encoder resolution of 0.6 nm
