Manufacturing Grade Composite Core Optical Breadboards
Manufacturing Grade Composite Core Optical Breadboards
Composite core optical breadboards are designed for applications that do not require much damping. They are the most cost effective, light weight solution for less demanding applications.
- Low cost 28 mm thick breadboards for less demanding applications
- Light weight composite core
- 3.4 mm 400 Series Stainless Steel working surface
- 19 mm deep sealed holes with easy clean polymer cup See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-TD-11 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 300 x 300 x 28 mm, M6 Holes | |||||
| M-TD-12 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 300 x 600 x 28 mm, M6 Holes | |||||
| M-TD-13 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 300 x 900 x 28 mm, M6 Holes | |||||
| M-TD-22 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 600 x 600 x 28 mm, M6 Holes | |||||
| M-TD-23 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 600 x 900 x 28 mm, M6 Holes | |||||
| TD-11 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 12 x 12 x 1.1 in., 1/4-20 Holes | |||||
| TD-12 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 12 x 24 x 1.1 in., 1/4-20 Holes | |||||
| TD-13 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 12 x 36 x 1.1 in., 1/4-20 Holes | |||||
| TD-22 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 24 x 24 x 1.1 in., 1/4-20 Holes | |||||
| TD-23 TD Low Cost Composite Core BreadboardsOptical Breadboard, Composite Core, 24 x 36 x 1.1 in., 1/4-20 Holes |
Selection Guide
<h3 class="text-center">Optical Breadboard Selection Guide</h3>
Optical breadboards are selected based on performance criteria like damping and stiffness based on the application. Once the type of breadboard required is determined you can choose the surface size that will support your application.

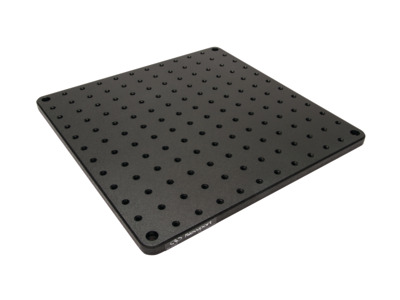

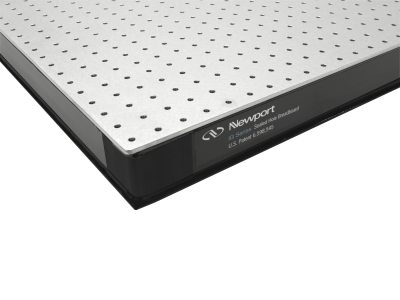

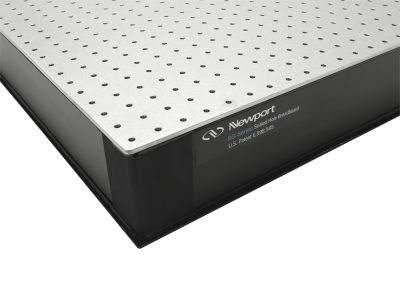

| Precision Grade | Scientific Grade | Industrial Grade | Manufacturing Grade | Solid Aluminum | |
| Applications | Interferometry and critical high resolution experiments | Electro-optical experiments & processes | Industrial equipment platforms and less critical experiments | Telecom device manufacturing requiring a low cost, high-quality mounting surface | Classroom demonstrations and equipment setups |
| Damping Performance | ★★★★★ | ★★★★ | ★★★ | ★★ | ★ |
| Stiffness | ★★★★★ | ★★★★★ | ★★★ | ★★ | ★ |
| Cost | $$$$$ | $$$$ | $$$ | $$ | $ |
| Working Surface | 4.8 mm Thick 430 Stainless Steel | 3.4 mm Thick 430 Stainless Steel | Anodized Aluminum | ||
| Bottom Skin | 3.4 mm thick Carbon Steel | N/A | |||
| Core Design | Vertically Bonded Trussed Honeycomb | Formed Composite | N/A | ||
| Side Panels | Modal Dampers | Highly Damped Composite Wood | N/A | ||
| Ferromagnetism | Magnetic | Non-Magnetic | |||
| Mounting Holes | Tapped and Individually Sealed | Tapped Through | |||
| Mounting Threads | 1/4-20 (M6) on 1 in. (25 mm) Grid | ||||
| Standard Version | PG | SG | IG | TD | SA2 |
| Microlock Version | PG-ML | SG-ML | IG-ML | N/A | N/A |
| Double Density Hole Version | N/A | SGD | N/A | N/A | SA2-D |
| LaserClean Version | N/A | LC | N/A | N/A | N/A |
Features

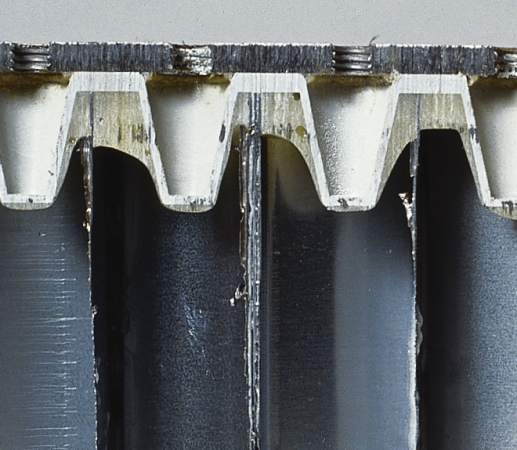

Individually Sealed Mounting Holes
All of Newport's optical breadboards are designed with individually sealed mounting holes. Those mounting holes feature 19 mm screw depth. In contrast to some of the other products in the market that has channel for a row of holes or just a polymeric film, Newport's individually sealed holes are more reliable and easier to clean. This is because we believe in the integrity of the product - especially the core. When dust and liquids go into your optical breadboard and table, it may have a long term effect on the damping performance of the product and make the product degrade over time. A good quality breadboard and table lasts long time - tens of years and more. It's a good investment for a product with sealed mounting holes.

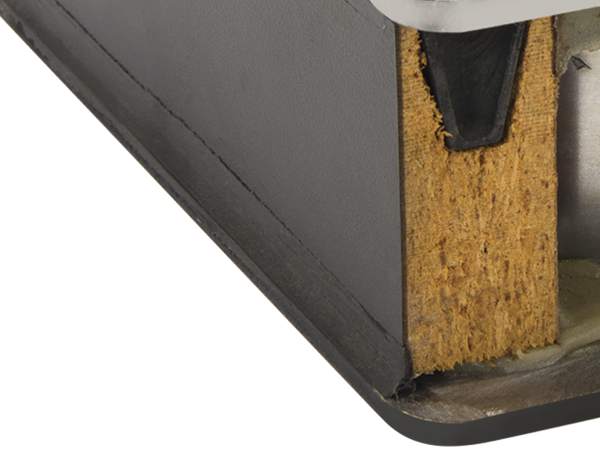

Highly Damped Side Panel
Side panels for optical tables do more than just covers. They should contribute to the overall damping performance of the table. Newport's optical breadboards and tables use highly damped composite wood as side panels to help eliminating vibrations from the side. Composite wood has much better damping performance than steel – it simply does. Materials with a high elasticity (steel, for example, and other hard metals) tend to allow vibration or ringing. Materials with low elasticity such as wood tend to dampen vibration and ringing - For example, hi-fi speakers are almost all enclosed by composite wood to damp the acoustic vibrations.
Low Cost, Light Weight Composite Core
As a more affordable solution, TD series breadboard features a low cost and light weight 20.6 mm precision formed composite core for less demanding applications.
3.4 mm 400 Series Stainless Steel Working Surface
3.4 mm 400 series stainless steel working surface is a more affordable solution than 4.8 mm. When combined with Newport's uniquely designed core structure, the product provides good damping performance and is suitable for majority of the standard optical applications.
