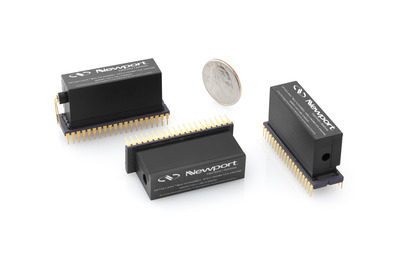

OptoFlash^® Spectrometer Engines

OptoFlash^® empowers spectral analysis across various industries including: clinical chemical analyzers, food and beverage analysis, environmental analysis (soil, water, and air), precision agriculture, and waste stream sorting. Select from pre-configured spectral engines, or customize up to 10 discrete channels from over 50 available standard wavelengths. Ideal for applications where pre-determined wavelength detection is essential to acquiring fast sample measurements for your unique OEM applications. Reimagine your instrument with OptoFlash.

Low size, weight and power (SWaP) spectrometer engine
Simplified spectral measurements
Field-proven OEM reliability
Excellent temperature stability
Customizable discrete wavelength channels

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

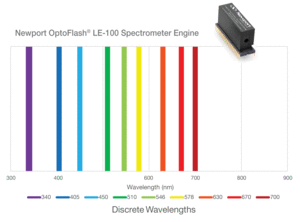

		LE-100 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 510, 546, 578, 630, 670, 700 nm	UNIVERSAL

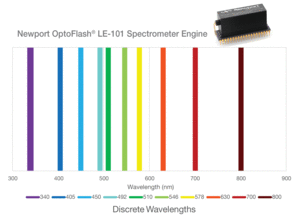

		LE-101 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 492, 510, 546, 578, 630, 700, 800 nm	UNIVERSAL
		LE-102 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 505, 546, 578, 620, 670, 700 nm	UNIVERSAL
		LE-103 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 510, 546, 578, 630, 700 nm	UNIVERSAL
		LE-104 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 510, 546, 578, 630, 670 nm	UNIVERSAL
		LE-105 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 505, 546, 600, 630, 700, 800 nm	UNIVERSAL
		LE-106 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 505, 546, 578, 630, 670, 750 nm	UNIVERSAL
		LE-107 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 505, 546, 570, 610, 660, 700 nm	UNIVERSAL
		LE-108 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 405, 450, 505, 546, 578, 630, 670, 700 nm	UNIVERSAL
		LE-109 OptoFlash® Spectrometer EnginesSpectrometer Engine, 340, 380, 405, 450, 505, 546, 578, 630, 670, 700 nm	UNIVERSAL

Show All

Features

OptoFlash® Multichannel Spectrometer Engine- Measuring Spectral Data in a Flash

Discover the measurement simplicity of OptoFlash® spectrometer engines, trusted by leading analytical instrumentation companies worldwide. Offering a customizable spectral range, excellent temperature stability, and vibration insensitivity, OptoFlash empowers spectral measurements for challenging industrial instruments including:

Environmental analysis
Soil, Water & Air
Precision agriculture
Clinical Chemical Analyzers
Food & Beverage Analysis
Waste Stream Sorting

Ultra-compact Size

Weighing only 30 grams with dimensions of 51mm (L) x 16mm (W) x 25mm (H), the ultra-compact size of OptoFlash with no moving parts delivers the perfect solution for OEM instrument manufacturers seeking to minimize the size and weight of their analytical instruments.

Low Noise Mode

Operating in Low Noise Mode with 0 volt bias, detector dark current of < 10 pA, detector rise time of < 1.2 µsec, full-device linearity >OD4, and stray light average >OD5 (OD3.5 minimum) are achieved.

High Speed Mode

Operating in High Speed Mode with 10 volt bias, detector dark current of < 50 pA, detector rise time of < 0.3 µsec are achieved enabling measuring times ranging from 33ms with linearity ≥OD3.5 to 23 ms with linearity ≥OD2.5

Wavelength Configuration Options

OptoFlash spectrometer engines can be configured with filters of any wavelength from 340 nm to 900 nm. More than 50 standard wavelength options are available to select enabling rapid prototyping of custom devices. Custom wavelengths and bandwidths are routinely manufactured as additional spectral optimization as required.

Channel Count Configuration

OptoFlash devices can be configured with as many as discrete 10 wavelength channels per device. Channels are defined by individual bandpass filters with nominal 8nm bandwidths. For applications where more than 10 channels are required, we design multiple-device configurations with the necessary beam steering optics.

Standard Wavelength Options (nm)

340	380	400	405	410	415	420	430	436	440	450
460	467	470	478	480	490	492	500	505	510	520
530	540	546	550	560	570	578	580	589	590	596
600	610	620	630	640	650	658	660	670	680	690
700	726	750	766	800	805	815	845	850	880	884

Excellent Temperature Stability

OptoFlash devices maintain full spectral fidelity over a range of -20° C to +60° C eliminating the need for special cooling components that are sometimes required in instruments where alternate wavelength discrimination methods are used.

Field-Proven OEM Reliability

OptoFlash devices are field-proven incorporated into analytical instruments making thousands of critical measurements daily. OptoFlash is trusted by leading analytical companies worldwide.

Simplified Spectral Measurements

OptoFlash incorporates high-performance ODiate™ and Stabilife® optical filters sealed within the spectrometer engine, directly coupled to a high-sensitivity Silicon photodiode array in a miniature package to provide spectral demultiplexing and detection in a single, plug-in component. The simplified optical detection path designed for low stray light, improves signal measurements and optimizes system linearity, simultaneously detecting each wavelength with negligible channel-to-channel crosstalk.
