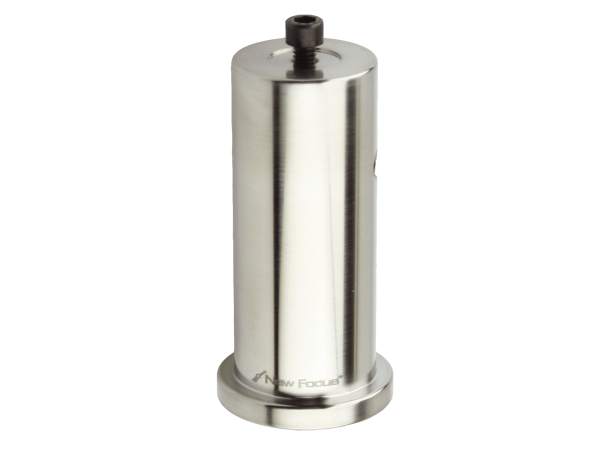

1.0 in. Clean-Passivated Optical Pedestals

When an application requires components to be cleaner and more resistant to corrosion than typical standard products, these 1 in. (24.5 mm) passivated stainless steel optical pedestals are the best choice. They provide highly stable and versatile mounting of optics and mount directly to optical tables using pedestal-base fork clamps. Available in eight different heights, each featuring a cross-drilled hole to aid in tightening and loosening posts.

Extra clean, passivated stainless steel
1.0 in. (25.4 mm) diameter pedestals mount anywhere on tables with fork clamps
More stable and economical than traditional magnetic bases
Available in eleven heights between 0.5 in. (12.7 mm) and 6.0 in. (127 mm)
English or metric thread versions

See All Features

Show Filters:

Showing 18 of 18 total products

Compatibility:

Description	Compatibility	Height	Thread Type	Price
9951Optical Pedestal, Clean-Passivated, 0.5 in. Height, 1 in. Diameter, 8-32	IMPERIAL	12.7 mm	8-32	$29
9957Optical Pedestal, Clean-Passivated, 0.75 in. Height, 1 in. Diameter, 8-32	IMPERIAL	19.05 mm	8-32	$30

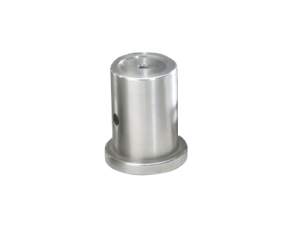

9952Optical Pedestal, Clean-Passivated, 1.0 in. Height, 1 in. Diameter, 8-32	IMPERIAL	25.4 mm	8-32	$30

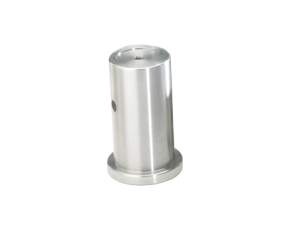

9953Optical Pedestal, Clean-Passivated, 1.5 in. Height, 1 in. Diameter, 8-32	IMPERIAL	38.1 mm	8-32	$34

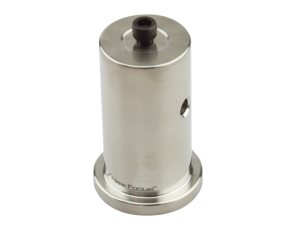

9954Optical Pedestal, Clean-Passivated, 2.0 in. Height, 1 in. Diameter, 8-32	IMPERIAL	50.8 mm	8-32	$34
9955Optical Pedestal, Clean-Passivated, 2.5 in. Height, 1 in. Diameter, 8-32	IMPERIAL	63.5 mm	8-32	$37
9956Optical Pedestal, Clean-Passivated, 3.0 in. Height, 1 in. Diameter, 8-32	IMPERIAL	76.2 mm	8-32	$37

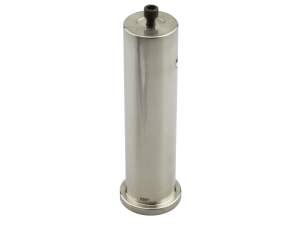

9961Optical Pedestal, Clean-Passivated, 4.0 in. Height, 1 in. Diameter, 8-32	IMPERIAL	101.6 mm	8-32	$45

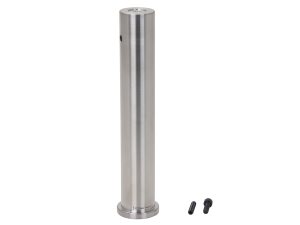

9962Optical Pedestal, Clean-Passivated, 6.0 in. Height, 1 in. Diameter, 8-32	IMPERIAL	152.4 mm	8-32	$58
9951-MOptical Pedestal, Clean-Passivated, 12.7 mm Height, 25.4 mm Diameter, M4	METRIC	12.7 mm	M4	$29
9957-MOptical Pedestal, Clean-Passivated, 19.05 mm Height, 25.4 mm Diameter, M4	METRIC	19.05 mm	M4	$30
9952-MOptical Pedestal, Clean-Passivated, 25.4 mm Height, 25.4 mm Diameter, M4	METRIC	25.4 mm	M4	$30
9953-MOptical Pedestal, Clean-Passivated, 38.1 mm Height, 25.4 mm Diameter, M4	METRIC	38.1 mm	M4	$34
9954-MOptical Pedestal, Clean-Passivated, 50.8 mm Height, 25.4 mm Diameter, M4	METRIC	50.8 mm	M4	$34
9955-MOptical Pedestal, Clean-Passivated, 63.5 mm Height, 25.4 mm Diameter, M4	METRIC	63.5 mm	M4	$37
9956-MOptical Pedestal, Clean-Passivated, 76.2 mm Height, 25.4 mm Diameter, M4	METRIC	76.2 mm	M4	$37
9961-MOptical Pedestal, Clean-Passivated, 101.6 mm Height, 25.4 mm Diameter, M4	METRIC	101.6 mm	M4	$45
9962-MOptical Pedestal, Clean-Passivated, 152.4 mm Height, 25.4 mm Diameter, M4	METRIC	152.4 mm	M4	$58

Show Less

Specifications

Type
Optical Pedestal
Thread Type
8-32, M4

Material
Stainless Steel
Inside Diameter
25.4 mm

Features

Extra Clean, Passivated Pedestals

Stainless steel is already known as being corrosion-resistant, however the passivation process further strengthens its natural coating by improving the exterior surface of the overall part. The passivation process also removes unwanted debris and oils from the surface resulting in a post that is extra clean.

Cross-Drilled Hole for Easy Tightening and Loosening

These pedestals feature a 0.234 in. (5.9 mm) diameter cross-drilled hole. By inserting a 3/16 in. (5 mm) hex wrench (or similar tool) into this hole, it can be used to easily attach or detach an extension post or optical mount on its top.

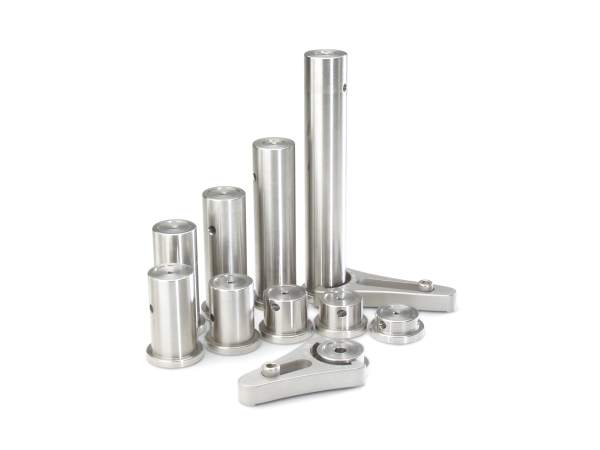

Multiple Fixed Pedestal Heights

These pedestals are available with lengths of 0.5 in. (12.7 mm), 0.75 in. (19.1 mm), 0.88 in. (22.4 mm), 1.0 in. (25.4 mm), 2.0 in. (50.8 mm), 3.0 in. (76.2 mm), 4.0 in. (101.6 mm), and 6.0 in. (152.4 mm) and have cross-drilled holes large enough to use 3/16 in. (5 mm) hex wrenches aid in tightening and loosening posts.

High Stability for Mounting Optical Components

These 1 in. (25.4 mm) diameter stainless-steel optical posts are made from precision ground stainless steel to maintain long-term optical system alignment and come in a variety of heights. Using any of the available pedestal base clamping forks, these stackable pedestals can be clamped anywhere on a table or breadboard. Pedestal bases are machined directly into the posts. Cross-drilled holes large enough to use 3/16 in. (5 mm) hex wrenches aid in tightening and loosening posts. Both ends of each of these posts have a centered 8-32 (M4) threaded hole for mounting components and accessories, as well as attaching posts together.

Accessories

Description	Compatibility	Price
9950Optical Pedestal Spacer Set, (3) 0.25 in. and (6) 0.125 in. Spacers	UNIVERSAL	$90
9916-MClamping Fork, 25.4 mm Diameter Pedestals, Captive M6 Screw, Short Slot	METRIC	$18.70
9909Clamping Fork, 1.0 in. Diameter Pedestals, Captive 1/4-20 Screw, Long Slot	IMPERIAL	$20
9909-MClamping Fork, 25.4 mm Diameter Pedestals, Captive M6 Screw, Long Slot	METRIC	$20

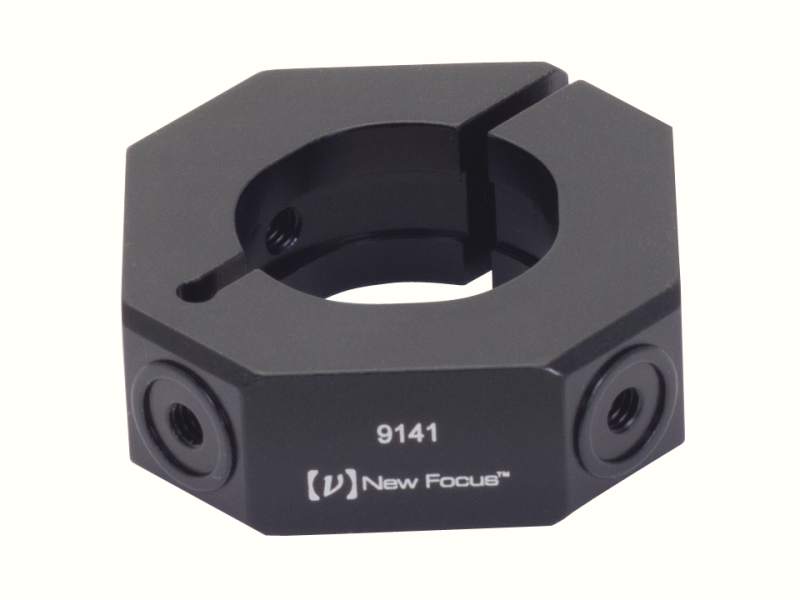

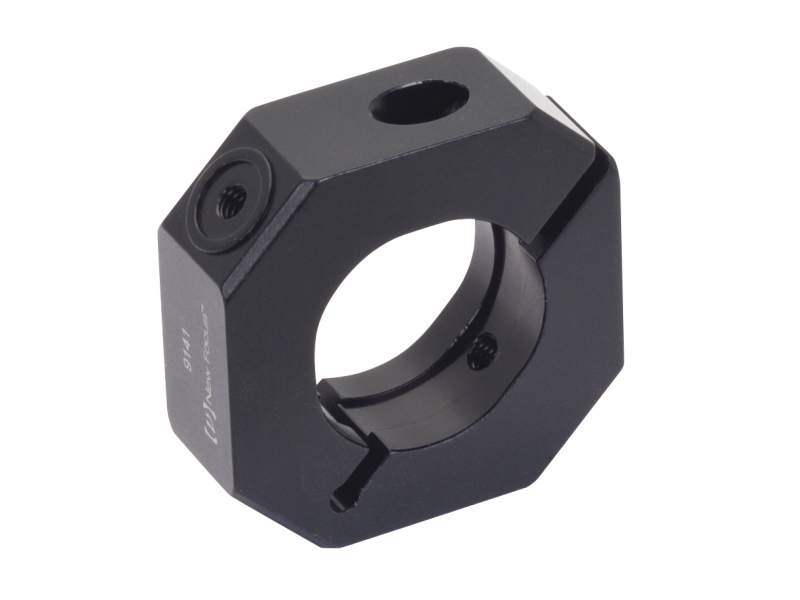

9141NFPost Clamp, 1.0 in. Diameter Pedestals and Posts, 8-32 Thread	IMPERIAL	$75
9141-MPost Clamp, 25.4 mm Diameter Pedestals and Posts, M4 Thread	METRIC	$75
