e•z•Trac™ 19 mm Surface Mount Optical Rails
e•z•Trac™ 19 mm Surface Mount Optical Rails
The 19 mm e•z•Trac™ Optical Rail System offers the lowest profile mounting surface to the variety of carriers and accessories that attach easily and sit flush with the optical table or breadboard.
- Lowest profile mounting rail systems with 12.7 mm height
- Highly customizable with multiple carriers and accessories
- Compatible with Triple-Divide™ translation stages
- Carriers held directly on mounting surface See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

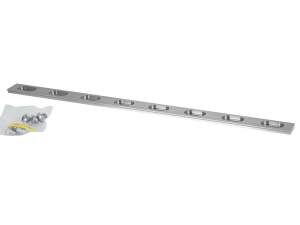

 | 9020NF 19 mm Surface Mount Optical Rails & CarriersezTrac Optical Rail, 12.0 in. Length | |||||

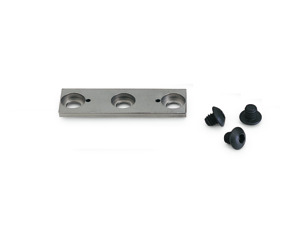

 | 9022NF 19 mm Surface Mount Optical Rails & CarriersezTrac Optical Rail, 2.5 in. Length | |||||

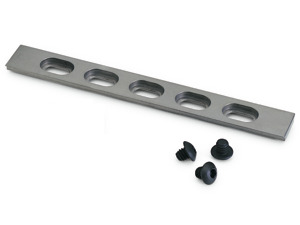

 | 9023NF 19 mm Surface Mount Optical Rails & CarriersezTrac Optical Rail, 6.0 in. Length | |||||

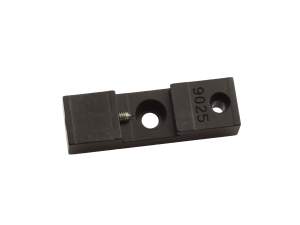

 | 9025NF 19 mm Surface Mount Optical Rails & CarriersOptical Post Carrier, ezTrac, 0.75 in. Width | |||||

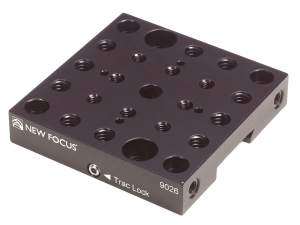

 | 9026 19 mm Surface Mount Optical Rails & CarriersRiser Carrier, 0.5 in. Height, 8-32 and 1/4-20 | |||||
| 9026-M 19 mm Surface Mount Optical Rails & CarriersRiser Carrier, 0.5 in. Height, M4 and M6 | |||||

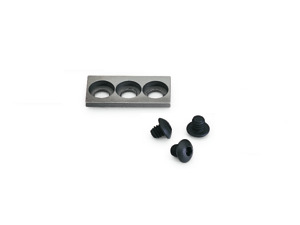

 | 9032 19 mm Surface Mount Optical Rails & CarriersezTrac Optical Rail, 1.5 in. Length | |||||
 | 9035 19 mm Surface Mount Optical Rails & CarriersOptical Post Carrier, Pint-Sized, ezTrac, 0.75 in. Width Post | |||||
 | 9036 19 mm Surface Mount Optical Rails & CarriersRiser Carrier, Pint-Sized, 0.5 in. Height, 8-32 and 1/4-20 Threads | |||||
| 9036-M 19 mm Surface Mount Optical Rails & CarriersRiser Carrier, Pint-Sized, 0.5 in. Height, M4 and M6 Threads |
Features
Low Profile Rail System Mounting

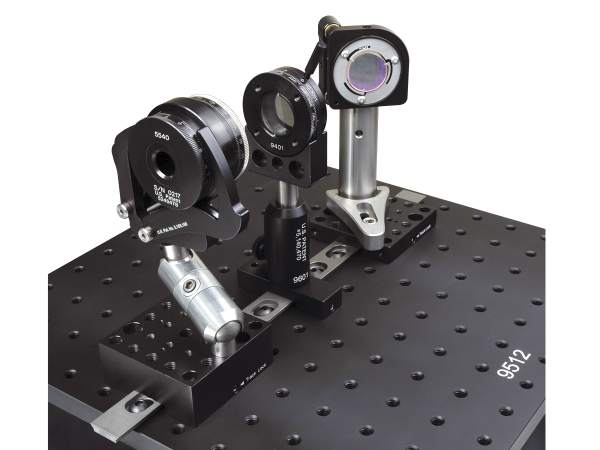

The e•z•Trac™ Optical Rail System is the lowest profile optical rail system. The rails themselves sit just 0.18 in. (4.6 mm) high and mount to optical tables or breadboards by a surface-mount design. Carriers sit flush with the same surface where the rail is attached letting the mounting surface profile sit at only 0.5 in. (12.7 mm) high. The dovetail design ensures carriers clamp down with exceptional stability Each e•z•Trac rail ships with both 1/4-20 and M6 button-head screws.
Compatible with Triple Divide Translation Stages
The e•z•Trac™ rails provide the linear translation to our standard and pint-sized Triple-Divide translation stages, making them fully compatible with both. Precision alignment holes guarantee orthogonality when used with the translation stages.
