ezTrac Optical Rail, 12.0 in. Length

19 mm Surface Mount Optical Rails & Carriers

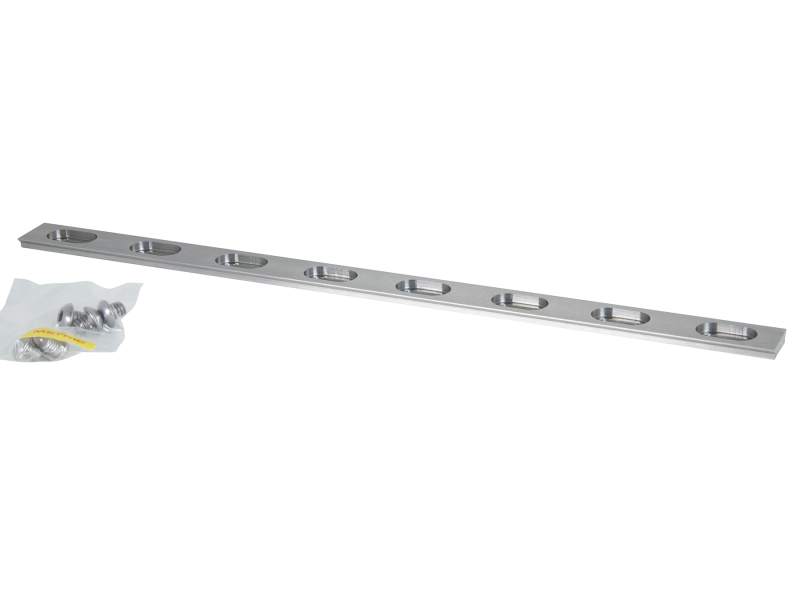

The 9020NF e⋅z⋅Trac Rail mounts directly to our stages or other accessories and lets you quickly configure and reconfigure your stage setup. The track's precision alignment holes guarantee orthogonality when you reconfigure the stages, and the dovetail design ensures that the stages won't suffer from stability problems. The 9022 is 12 inch long and is metric compatible. The rail comes with 3 imperial button head screws and 3 metric button head screws.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
304.8 mm
Thread Type
1-4-20 (M6) C-Bore
Height
4.6 mm

Length
304.8 mm
Width
19.1 mm

Type
Optical Rail
Rail Length
304.8 mm
Thread Type
1-4-20 (M6) C-Bore
Height
4.6 mm

Length
304.8 mm
Width
19.1 mm
