Construction Rail, 1 x 5 in., 1/4-20

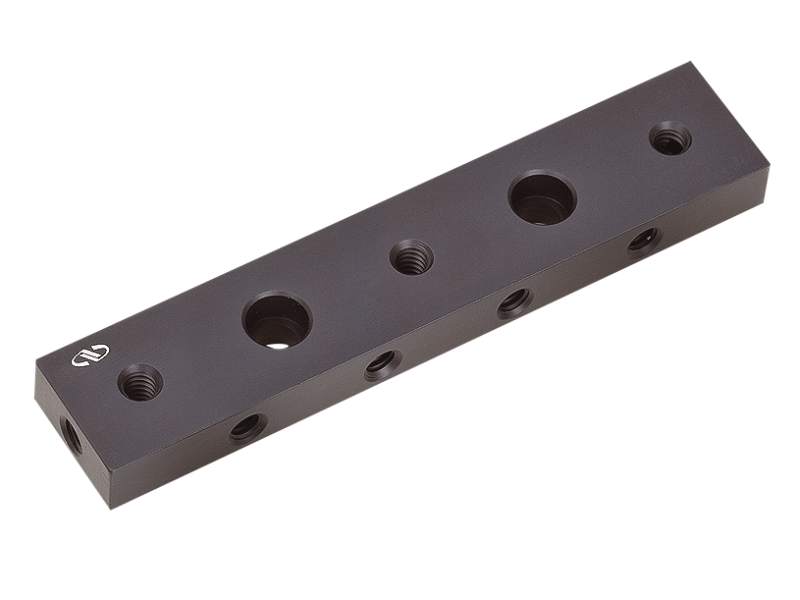

The CR-1 Construction Rail has tapped holes on all surfaces as well as counterbored clearance holes for 1/4-20 (M6) screws. The rail can be attached to a breadboard, a cube, another component, or another rail for modular versatility.
Resources & Downloads
Drawings And Cad
CR-1 DWG-S(127.1 kB, PDF)
Other
CR-1 RoHS Certificate(277.9 kB, PDF) CR-1_RoHS2021.pdf(680.9 kB, PDF)
