New Focus 90 Degree Angle Brackets
New Focus 90 Degree Angle Brackets
We offer two angle plates for orthogonal mounting of New Focus translation stages.
- Compact 90 degree angle brackets
- Both threaded and thru holes
- Open slots speed installation/removal See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

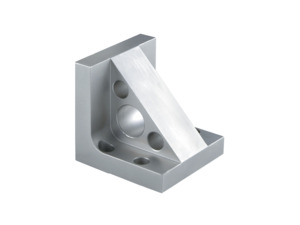

 | 9041 90 Degree Angle Brackets, 906x Series90 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20 | |||||
| 9041-M 90 Degree Angle Brackets, 906x Series90 Degree Angle Bracket, 9066-M Series Stages, M4 and M6 | |||||
 | 9061-A 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9061 Series Stages, XZ and XYZ Configurations | |||||
| 9061-A-M 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9061-M Series Stages, XZ and XYZ Configurations | |||||

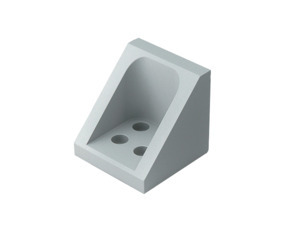

 | 9062-A 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9062 Series Stages, XZ and XYZ Configurations | |||||
| 9062-A-M 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9062-M Series Stages, XZ and XYZ Configurations | |||||

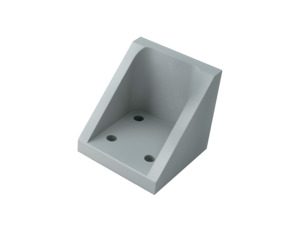

 | 9063-A 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9063 Series Stages, XZ and XYZ Configurations | |||||
| 9063-A-M 90 Degree Angle Brackets, 906x SeriesAngle Bracket, 9063-M Series Stages, XZ and XYZ Configurations | |||||

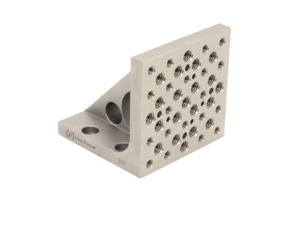

 | 9161 90 Degree Angle Brackets, 906x Series90 Degree Angle Bracket, 9067 Series Stages, 8-32 and 1/4-20 | |||||
| 9161-M 90 Degree Angle Brackets, 906x Series90 Degree Angle Bracket, 9067-M Series Stages, M4 and M6 |
Features

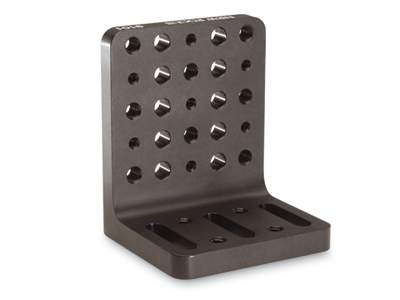

Large Angle Bracket
The large 9101NF bracket has surfaces and edges which are machined with parallelism and perpendicularity to within 0.003". The slots are 1" or, in the metric version, 25.0 mm apart. For easy mounting to the angle plate, there are 1/4-20 (M6) and 8-32 (M4) threaded and through holes.

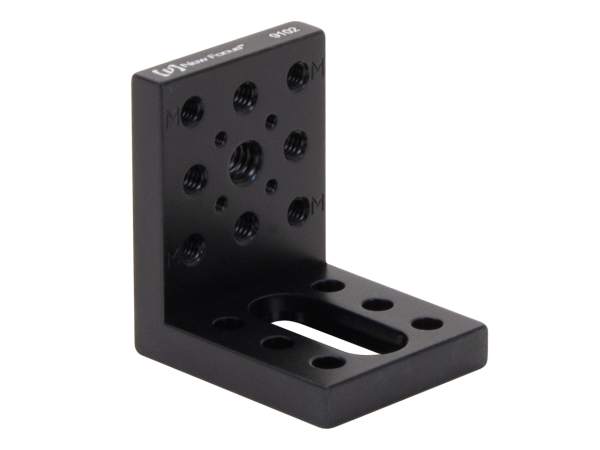

Small Angle Bracket
