Stainless Steel SDS Series 90° Angle Brackets are used to build extra stiff multi-axis stage assemblies. These stainless steel brackets offer more rigidity than standard aluminum brackets and offer tapped holes for mounting industry-standard 25x25-, 40x40- or 65x65-mm stages.
- Stainless steel construction for high rigidity and a sturdy hold
- Brackets for mounting 25x25 mm, 40x40 mm or 65x65 mm stages
- Compatible with SDS and DS Series linear stages
- Compatible with RS Series rotation stages & GON Series goniometers See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-SDS25-BK 90 Degree Angle Brackets, SDS Series90 Degree Angle Bracket, M-SDS25, M2 Thread | |||||
 | M-SDS40-BK 90 Degree Angle Brackets, SDS Series90 Degree Angle Bracket, M-SDS40, M3 Thread | |||||
 | M-SDS65-BK 90 Degree Angle Brackets, SDS Series90 Degree Angle Bracket, M-SDS65, M6 Thread | |||||
| SDS40-BK 90 Degree Angle Brackets, SDS Series90 Degree Angle Bracket, SDS40 Stage | |||||
| SDS65-BK 90 Degree Angle Brackets, SDS Series90 Degree Angle Bracket, SDS65 Stage |
Features
Stainless Steel for Increased Rigidity
Each bracket in this series is made of stainless steel, utilizing the material's increased stiffness for more rigid support of mounted stages an components, compared to aluminum brackets. There are four clearance holes for bolting the bracket to the supporting stage and four threaded holes for mounting the orthogonal stage or components directly.
Designed to Build Multi-axis Configurations
These right angle brackets mount evenly with their compatible stages to offer mounting of additional stages such as GON series Goniometers, RS series rotation stages, DS series Dove-tail Stages or 9061, 2, or 3 series gothic arch stages.

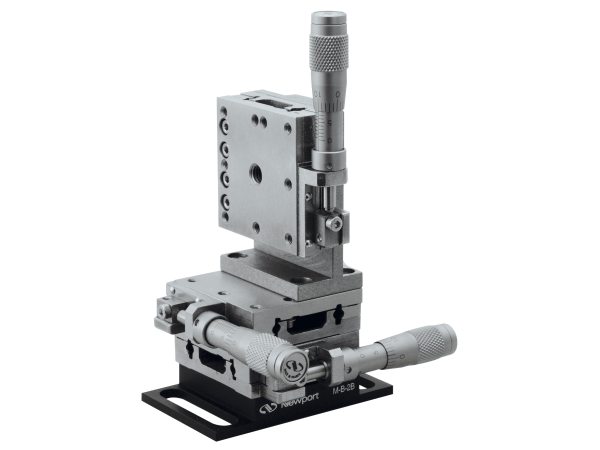

SDS40 stages in XYZ assembly with SDS40-BK angle bracket.
