Standard Bandpass Filters

Our Bandpass Filters pass a narrow spectral band of UV, visible, or NIR radiation and reject out-of-band wavelengths from X-ray to the far IR. Applications include spectra radiometry, medical diagnostics, chemical analysis, colorimetry, astronomy, or any application where spectral isolation is required.

Out-of-band blocking to less than 0.01% (10^-4)
Center wavelengths available from 310 nm to 900 nm
Excellent temperature stability
25.4 mm diameter and 50.8 mm square sizes
Superior lifetime in harsh environmental conditions

See All Features

Show Filters:

Showing 60 of 60 total products

Compatibility:

Description	Compatibility	Center Wavelength	FWHM	Minimum Peak Transmission	Price
10BPF10-310Bandpass Filter, 25.4 mm, 310±2 nm Center, 11±2 nm FWHM	UNIVERSAL	310 nm	11±2 nm	20%	$498

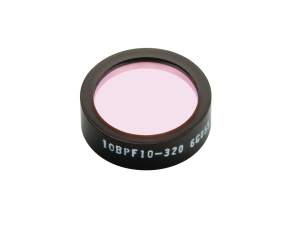

10BPF10-320Bandpass Filter, 25.4 mm, 320±2 nm Center, 12±2 nm FWHM	UNIVERSAL	320 nm	12±2 nm	20%	$508

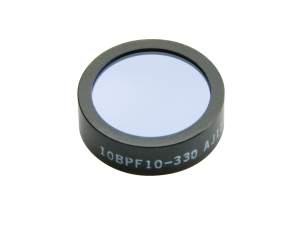

10BPF10-330Bandpass Filter, 25.4 mm, 330±2 nm Center, 11±2 nm FWHM	UNIVERSAL	330 nm	12±2 nm	20%	$378
10BPF10-340Bandpass Filter, 25.4 mm, 340±2 nm Center, 12±2 nm FWHM	UNIVERSAL	340 nm	12±2 nm	35%	$377
10BPF10-350Bandpass Filter, 25.4 mm, 350±2 nm Center, 11±2 nm FWHM	UNIVERSAL	350 nm	11±2 nm	30%	$377

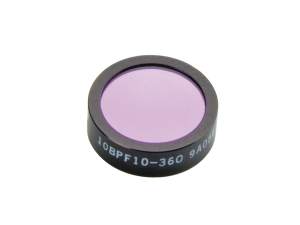

10BPF10-360Bandpass Filter, 25.4 mm, 360±2 nm Center, 11±2 nm FWHM	UNIVERSAL	360 nm	11±2 nm	30%	$377

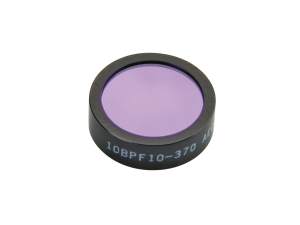

10BPF10-370Bandpass Filter, 25.4 mm, 370±2 nm Center, 12±2 nm FWHM	UNIVERSAL	370 nm	12±2 nm	30%	$377

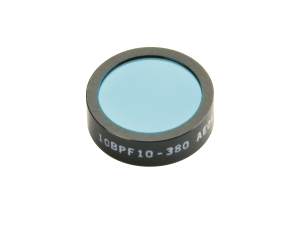

10BPF10-380Bandpass Filter, 25.4 mm, 380±2 nm Center, 12±2 nm FWHM	UNIVERSAL	380 nm	12±2 nm	30%	$366
10BPF10-390Bandpass Filter, 25.4 mm, 390±2 nm Center, 12±2 nm FWHM	UNIVERSAL	390 nm	12±2 nm	30%	$366

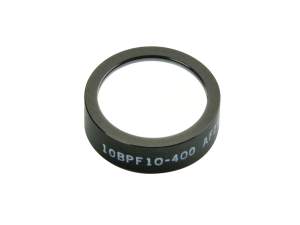

10BPF10-400Bandpass Filter, 25.4 mm, 400±2 nm Center, 10±2 nm FWHM	UNIVERSAL	400 nm	10±2 nm	30%	$147

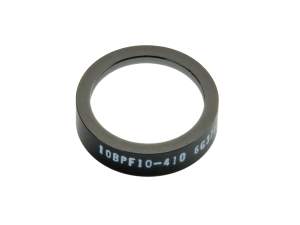

10BPF10-410Bandpass Filter, 25.4 mm, 410±2 nm Center, 10±2 nm FWHM	UNIVERSAL	410 nm	10±2 nm	45%	$169

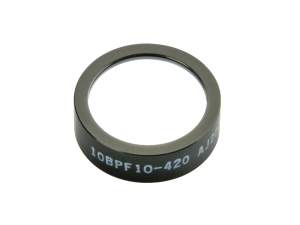

10BPF10-420Bandpass Filter, 25.4 mm, 420±2 nm Center, 10±2 nm FWHM	UNIVERSAL	420 nm	10±2 nm	45%	$169

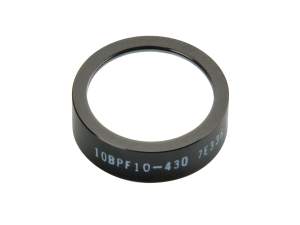

10BPF10-430Bandpass Filter, 25.4 mm, 430±2 nm Center, 10±2 nm FWHM	UNIVERSAL	430 nm	10±2 nm	45%	$147

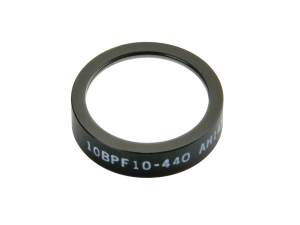

10BPF10-440Bandpass Filter, 25.4 mm, 440±2 nm Center, 10±2 nm FWHM	UNIVERSAL	440 nm	10±2 nm	45%	$147

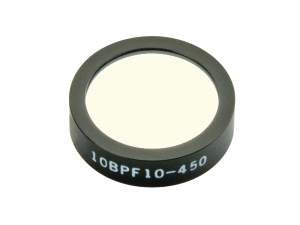

10BPF10-450Bandpass Filter, 25.4 mm, 450±2 nm Center, 10±2 nm FWHM	UNIVERSAL	450 nm	10±2 nm	45%	$147

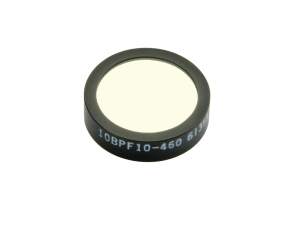

10BPF10-460Bandpass Filter, 25.4 mm, 460±2 nm Center, 10±2 nm FWHM	UNIVERSAL	460 nm	10±2 nm	50%	$126
10BPF10-470Bandpass Filter, 25.4 mm, 470±2 nm Center, 10±2 nm FWHM	UNIVERSAL	470 nm	10±2 nm	50%	$147
10BPF10-480Bandpass Filter, 25.4 mm, 480±2 nm Center, 10±2 nm FWHM	UNIVERSAL	480 nm	10±2 nm	50%	$130
10BPF10-490Bandpass Filter, 25.4 mm, 490±2 nm Center, 10±2 nm FWHM	UNIVERSAL	490 nm	10±2 nm	50%	$147
10BPF10-500Bandpass Filter, 25.4 mm, 500±2 nm Center, 10±2 nm FWHM	UNIVERSAL	500 nm	10±2 nm	50%	$126
10BPF10-510Bandpass Filter, 25.4 mm, 510±2 nm Center, 10±2 nm FWHM	UNIVERSAL	510 nm	10±2 nm	50%	$126
10BPF10-520Bandpass Filter, 25.4 mm, 520±2 nm Center, 10±2 nm FWHM	UNIVERSAL	520 nm	10±2 nm	50%	$126
10BPF10-530Bandpass Filter, 25.4 mm, 530±2 nm Center, 10±2 nm FWHM	UNIVERSAL	530 nm	10±2 nm	50%	$126
10BPF10-540Bandpass Filter, 25.4 mm, 540±2 nm Center, 10±2 nm FWHM	UNIVERSAL	540 nm	10±2 nm	50%	$126
10BPF10-550Bandpass Filter, 25.4 mm, 550±2 nm Center, 10±2 nm FWHM	UNIVERSAL	550 nm	10±2 nm	50%	$126
10BPF10-560Bandpass Filter, 25.4 mm, 560±2 nm Center, 10±2 nm FWHM	UNIVERSAL	560 nm	10±2 nm	50%	$126
10BPF10-570Bandpass Filter, 25.4 mm, 570±2 nm Center, 10±2 nm FWHM	UNIVERSAL	570 nm	10±2 nm	50%	$126
10BPF10-580Bandpass Filter, 25.4 mm, 580±2 nm Center, 10±2 nm FWHM	UNIVERSAL	580 nm	10±2 nm	50%	$126
10BPF10-590Bandpass Filter, 25.4 mm, 590±2 nm Center, 10±2 nm FWHM	UNIVERSAL	590 nm	10±2 nm	50%	$126
10BPF10-600Bandpass Filter, 25.4 mm, 600±2 nm Center, 10±2 nm FWHM	UNIVERSAL	600 nm	10±2 nm	50%	$126
10BPF10-610Bandpass Filter, 25.4 mm, 610±2 nm Center, 10±2 nm FWHM	UNIVERSAL	610 nm	10±2 nm	50%	$126
10BPF10-620Bandpass Filter, 25.4 mm, 620±2 nm Center, 10±2 nm FWHM	UNIVERSAL	620 nm	10±2 nm	50%	$126
10BPF10-630Bandpass Filter, 25.4 mm, 630±2 nm Center, 10±2 nm FWHM	UNIVERSAL	630 nm	10±2 nm	50%	$126
10BPF10-640Bandpass Filter, 25.4 mm, 640±2 nm Center, 10±2 nm FWHM	UNIVERSAL	640 nm	10±2 nm	50%	$147
10BPF10-650Bandpass Filter, 25.4 mm, 650±2 nm Center, 10±2 nm FWHM	UNIVERSAL	650 nm	10±2 nm	50%	$126
10BPF10-660Bandpass Filter, 25.4 mm, 660±2 nm Center, 11±2 nm FWHM	UNIVERSAL	660 nm	11±2 nm	50%	$137
10BPF10-670Bandpass Filter, 25.4 mm, 670±2 nm Center, 11±2 nm FWHM	UNIVERSAL	670 nm	11±2 nm	50%	$137
10BPF10-680Bandpass Filter, 25.4 mm, 680±2 nm Center, 11±2 nm FWHM	UNIVERSAL	680 nm	11±2 nm	50%	$137
10BPF10-690Bandpass Filter, 25.4 mm, 690±2 nm Center, 11±2 nm FWHM	UNIVERSAL	690 nm	11±2 nm	50%	$158
10BPF10-700Bandpass Filter, 25.4 mm, 700±2 nm Center, 12±2 nm FWHM	UNIVERSAL	700 nm	12±2 nm	50%	$137
10BPF10-750Bandpass Filter, 25.4 mm, 750±2 nm Center, 13±2 nm FWHM	UNIVERSAL	750 nm	13±2 nm	50%	$137
10BPF10-800Bandpass Filter, 25.4 mm, 800±2 nm Center, 12±2 nm FWHM	UNIVERSAL	800 nm	12±2 nm	45%	$137
10BPF10-850Bandpass Filter, 25.4 mm, 850±2 nm Center, 13±2 nm FWHM	UNIVERSAL	850 nm	13±2 nm	45%	$137
10BPF10-900Bandpass Filter, 25.4 mm, 900±2 nm Center, 10±2 nm FWHM	UNIVERSAL	900 nm	10±2 nm	45%	$137
10BPF25-400Bandpass Filter, 25.4 mm, 400±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	400 nm	25±3.5 nm	35%	$184
10BPF25-450Bandpass Filter, 25.4 mm, 450±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	450 nm	25±3.5 nm	45%	$184
10BPF25-500Bandpass Filter, 25.4 mm, 500±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	500 nm	25±3.5 nm	50%	$162
10BPF25-550Bandpass Filter, 25.4 mm, 550±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	550 nm	25±3.5 nm	50%	$141
10BPF25-600Bandpass Filter, 25.4 mm, 600±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	600 nm	25±3.5 nm	50%	$162
10BPF25-650Bandpass Filter, 25.4 mm, 650±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	650 nm	25±3.5 nm	50%	$162
10BPF25-700Bandpass Filter, 25.4 mm, 700±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	700 nm	25±3.5 nm	50%	$162
10BPF25-750Bandpass Filter, 25.4 mm, 750±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	750 nm	25±3.5 nm	50%	$141
10BPF70-400Bandpass Filter, 25.4 mm, 400±10 nm Center, 70±30 nm FWHM	UNIVERSAL	400 nm	70±30 nm	60%	$126
10BPF70-450Bandpass Filter, 25.4 mm, 450±10 nm Center, 70±30 nm FWHM	UNIVERSAL	450 nm	70±30 nm	60%	$126
10BPF70-500Bandpass Filter, 25.4 mm, 500±10 nm Center, 70±30 nm FWHM	UNIVERSAL	500 nm	70±30 nm	60%	$126
10BPF70-550Bandpass Filter, 25.4 mm, 550±10 nm Center, 70±30 nm FWHM	UNIVERSAL	550 nm	70±30 nm	60%	$126
10BPF70-600Bandpass Filter, 25.4 mm, 600±10 nm Center, 70±30 nm FWHM	UNIVERSAL	600 nm	70±30 nm	60%	$126
10BPF70-650Bandpass Filter, 25.4 mm, 650±10 nm Center, 70±30 nm FWHM	UNIVERSAL	650 nm	70±30 nm	60%	$126
10BPF70-700Bandpass Filter, 25.4 mm, 700±10 nm Center, 70±30 nm FWHM	UNIVERSAL	700 nm	70±30 nm	60%	$126
10BPF70-750Bandpass Filter, 25.4 mm, 750±10 nm Center, 70±30 nm FWHM	UNIVERSAL	750 nm	70±30 nm	60%	$130

Show Less

Specifications

Type
Bandpass Filter
Size
25.4 mm diameter
Size Tolerance
+0/-0.5 mm
Surface Quality
80-50 scratch-dig

Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Clear Aperture
20.2 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.01 to 0.02 nm/°C

Features

Scribed and Laminated Construction

Scribed and laminated soft coating construction is a commonly used construction for bandpass and edge filters. Optical filter components are coated onto separate substrate plates. These plates are then scribed to remove the film symmetrically around the required specified active film areas of the optical filters to be produced from the plate. The scribed plates are subsequently laminated together with a moisture resistant epoxy. A glass-epoxy-glass seal is formed in the scribed areas forming the best possible barrier to moisture penetration. Filters are cut through the scribed area to their finished size using diamond cutting tools. Additional moisture barriers may be applied to the cut filters if necessary to achieve extended life requirements.

Bandpass Filter Transmission Curves

A bandpass filter is defined by the pass band region. The two wavelengths in the bandpass where the transmittance is equal to 50% of peak transmittance are called the half-power wavelengths. The bandwidth is the difference between the half-power wavelengths which is called the full width at half maximum (FWHM). A center wavelength is defined by calculating the average of the two half-power wavelengths. The band shape is usually defined as a multiple of the BW or FWHM, and it defines the rate of attenuation with respect to wavelength change along the slopes of the bandpass. Please see the individual product page for the transmission curve.
