Compare Description Drawings, CAD & Specs Avail. Price

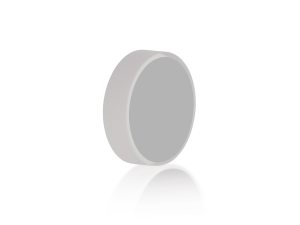

Standard Fused Silica Dielectric Mirrors 05Q20BB.HR2 Standard Fused Silica Dielectric MirrorsDielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 20-10
$161
Standard Fused Silica Dielectric Mirrors 05Q20BB.HR2-PK Standard Fused Silica Dielectric MirrorsMirror Pack, Ultra-Broadband Dielectric, 0.5 in., 0-50°, 350-1100 nm
$1,449
Standard Fused Silica Dielectric Mirrors 05Q620BB.HR2 Standard Fused Silica Dielectric MirrorsDielectric Mirror, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20
$112
Standard Fused Silica Dielectric Mirrors 05Q620BB.HR2-PK Standard Fused Silica Dielectric MirrorsDielectric Mirror Pack, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20, Qty 10
$1,008
Standard Fused Silica Dielectric Mirrors 10Q20BB.HR2 Standard Fused Silica Dielectric MirrorsDielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 20-10
$198
Standard Fused Silica Dielectric Mirrors 10Q620BB.HR2 Standard Fused Silica Dielectric MirrorsDielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 40-20
$154
Standard Fused Silica Dielectric Mirrors 10Q620BB.HR2-PK Standard Fused Silica Dielectric MirrorsDielectric Mirror Pack, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, Qty 10
$1,387
Standard Fused Silica Dielectric Mirrors 20Q620BB.HR2 Standard Fused Silica Dielectric MirrorsDielectric Mirror, High Reflector, 50.8 mm, 0-50°, 350-1100 nm, 40-20
$455

Specifications

Specifications

Features

UV Fused Silica Substrates

Fused Silica is synthetic amorphous silicon dioxide of extremely high purity. This non-crystalline, colorless silica glass combines a low content of inclusions with high refractive index homogeneity, a very low thermal expansion coefficient, and excellent transmittance in the wavelength regime from UV to NIR. As a result, these mirrors will perform better with temperature fluctuations and is ideal for high-energy laser applications due to its high energy damage threshold. For more information, please see our Optical Materials technical note.

Extremely Broad Wavelength Range With High Reflectivity

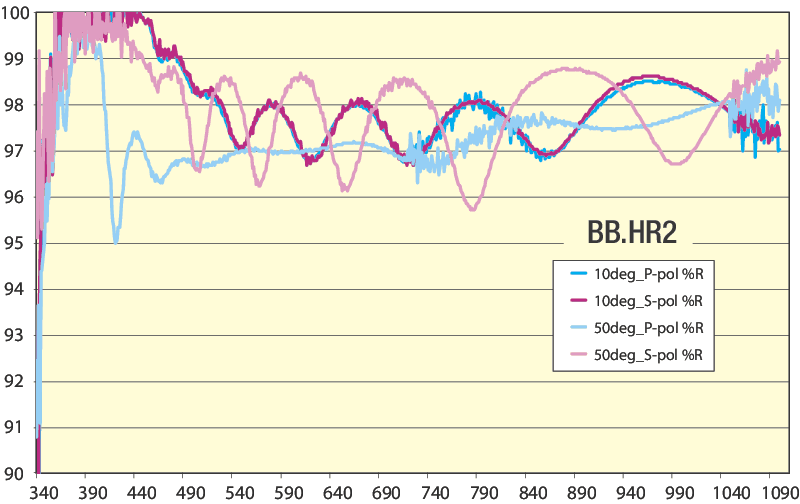

Broadbeam mirrors feature unprecedented specifications at an incredible value. These mirrors feature Newport’s proprietary metal-dielectric hybrid coating which provides exceptional reflectivity performance Ravg>97.5% over a very large wavelength range 350 - 1100 nm, 0 - 50 ͦ  angle of incidence for both S and P polarizations. Because of the very broad wavelength range and high reflectivity efficiency, the mirror can be used with many different laser wavelengths and can easily replace all of the mirrors in your current system.

More Durable Metal Dielectric Coatings

In addition to the high reflectivity across the ultra-broadband wavelength range, the Broadbeam mirrors also feature a more durable coating compared to the traditional metallic mirrors. Typically metallic coatings suffer from more rapid degradation over time when compared to dielectrics. Broadband mirrors use a metal dielectric hybrid coating that is more resistant to humidity, thermal changes, abrasion and salt exposure, providing long-term value for your applications.

SAVE by purchasing a pack of 10

A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.

Accessories

Cost-Saving 10 Packs

Buy 9 get 1 free when you choose to buy our popular 10 packs.

Compare Description Drawings, CAD & Specs Avail. Price
05Q20BB.HR2-PK Mirror Pack, Ultra-Broadband Dielectric, 0.5 in., 0-50°, 350-1100 nm
$1,449
 05Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 12.7 mm, 0-50°, 350-1100 nm, 40-20, Qty 10
$1,008
 10Q620BB.HR2-PK Dielectric Mirror Pack, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, Qty 10
$1,387

Resources

Selection Guides

Technical Notes

Similar Products

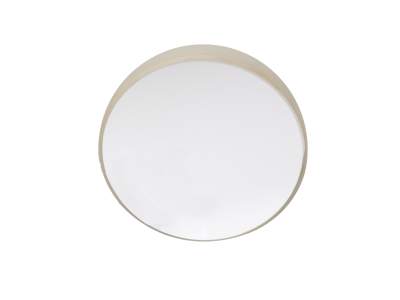

Zerodur Broadband Dielectric Mirrors

High-Performance Zerodur Dielectric Mirrors

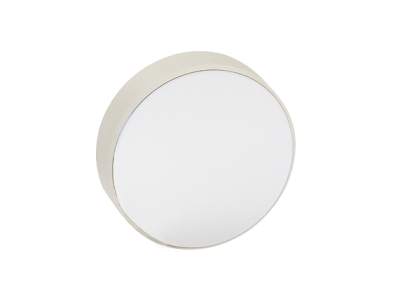

Economy Round Broadband Dielectric Mirrors

Economy Borofloat 33 Dielectric Mirrors

Borofloat 33 Broadband Dielectric Mirrors

Standard Borofloat 33 Dielectric Mirrors

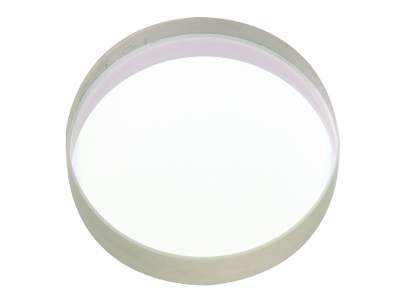

Ultra-broadband Dielectric Mirrors
