Newport has pre-selected the optics and components you need to build a single, dual or quadruple pass delay line set up. Depending on your budget, what products you already have, and delay line length requirements, you can choose the appropriate kit for your application. And, if you already have the motion controller and stages, the total cost to build your kit can be further decreased.

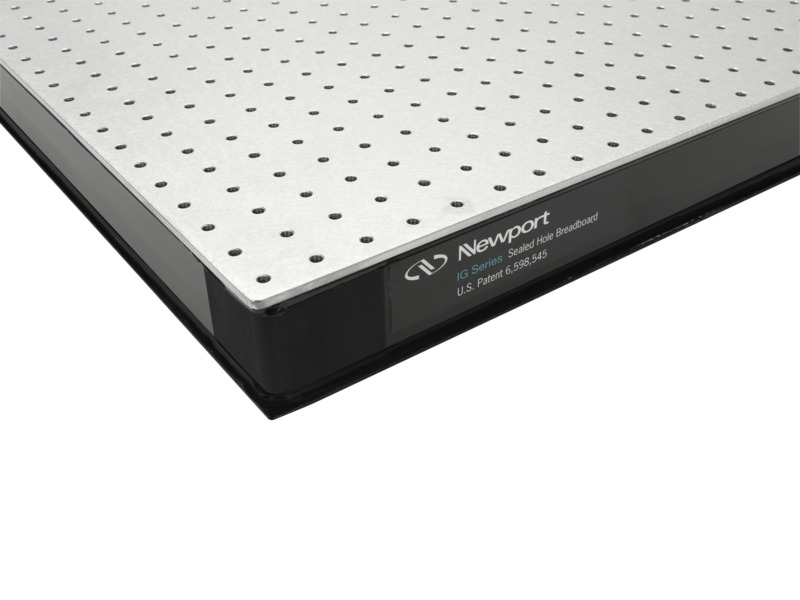

Buy the delay line kit and take advantage of special pricing! Each kit contains optics and components priced up to 15% off of list price. Breadboards are sold separately.

Please note that all opto-mechanical components in the delay line kits are metric based items to match the Newport DL Series Delay Line linear stages.

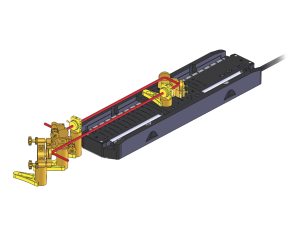

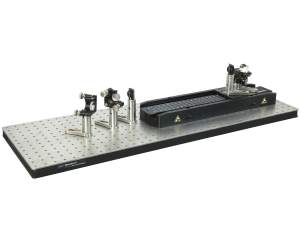

This is a single pass delay line kit for visible wavelengths featuring the model 9848 mirror mount and protected silver-coated mirrors.

All pertinent metric screws required for assembly will be included in the kit.

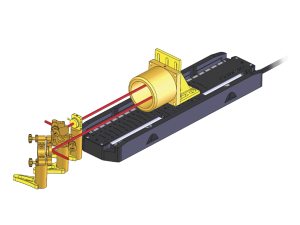

This is a single pass delay line kit for visible wavelengths. It features a protected silver broadband hollow retroreflector that results in a reflected beam that is precisely parallel to the incident beam.

All pertinent metric screws required for assembly will be included in the kit.

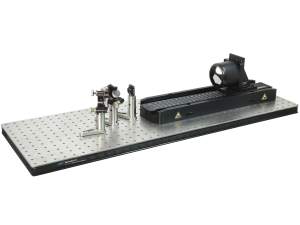

This is a single pass delay line kit for UV wavelengths. It features a UV enhanced aluminum broadband hollow retroreflector that results in a reflected beam that is precisely parallel to the incident beam.

ll pertinent metric screws required for assembly will be included in the kit.

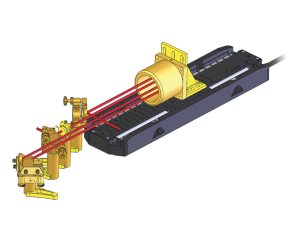

This is a double pass delay line kit for visible wavelengths. It features a protected silver broadband hollow retroreflector that results in a reflected beam that is precisely parallel to the incident beam.

All pertinent metric screws required for assembly will be included in the kit.

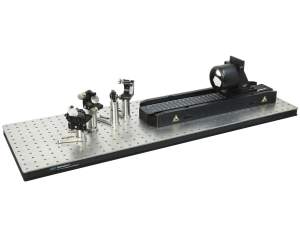

This is a double pass delay line kit for UV wavelengths. It features a UV enhanced aluminum broadband hollow retroreflector that results in a reflected beam that is precisely parallel to the incident beam.

All pertinent metric screws required for assembly will be included in the kit.

This is a quadruple pass delay line kit for visible wavelengths. It features two protected silver broadband hollow retroreflectors that result in reflected beams that are precisely parallel to the incident beams.

All pertinent metric screws required for assembly will be included in the kit.

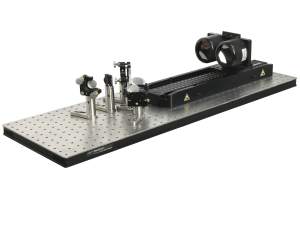

This is a quadruple pass delay line kit for UV wavelengths. It features two UV enhanced aluminum broadband hollow retroreflectors that result in reflected beams that are precisely parallel to the incident beams.

All pertinent metric screws required for assembly will be included in the kit.
