Dichroic Laser Beam Combiners
Dichroic Laser Beam Combiners
Manufactured from low autofluoresence substrates, dichroic laser beam combiners can efficiently combine or separate multiple laser beams at a 45° angle of incidence. These laser beam combiners are the perfect choice for multi-laser imaging and analytical instruments.
- Combine or separate multiple laser beams
- Insensitive to polarization
- Ion-beam sputtered (IBS) coating
- Perfect for equipment with multi-laser sources See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | DCM10 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 372-415 nm Refl, 439-647 nm Trans | |||||

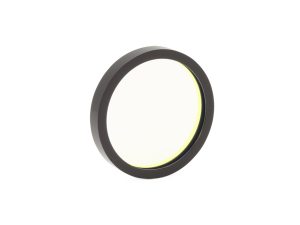

 | DCM11 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 439-458 nm Refl, 473-647 nm Trans | |||||

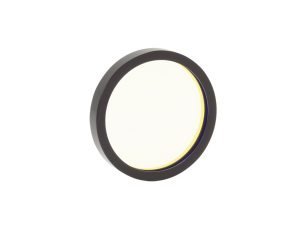

 | DCM12 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 473-491 nm Refl, 515-647 nm Trans | |||||

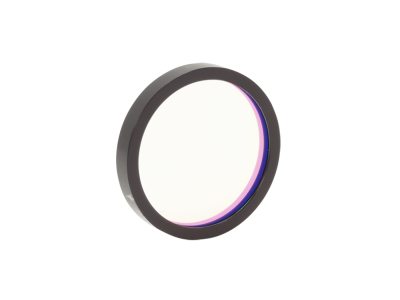

 | DCM13 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 515-544 nm Refl, 561-790 nm Trans | |||||

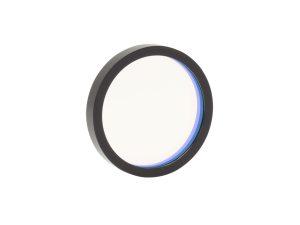

 | DCM14 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 561-594 nm Refl, 633-790 nm Trans | |||||

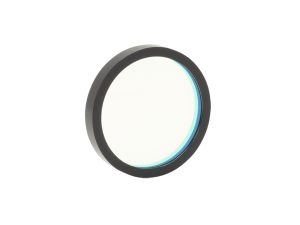

 | DCM15 Dichroic Laser Beam CombinersLaser Beam Combiner, Dichroic, 25mm, 633-647 nm Refl, 671-790 nm Trans |
Features
Combine or Separate Multiple Beams

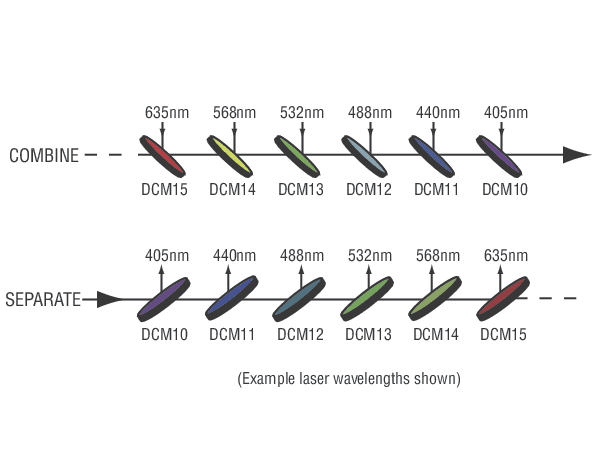

An ion-beam sputtered coating is applied to laser grade substrates to provide high reflection (>98%) and transmission (>95%) with low scattering. For optimal filter performance, when combining beams, the arrow on the side of the ring should point toward outgoing transmitted & combined laser beam. When separating beams, the arrow on the side of the ring should point toward incoming combined beam and outgoing reflected beam.
