EQ Series Motorized Stage Angle Brackets

Standard EQ angle brackets are very useful for multi-axis configurations assembled from popular Newport motorized linear or rotation stages.

Off the shelf right angle brackets for motorized linear or rotation stages
Steel or Aluminum Construction

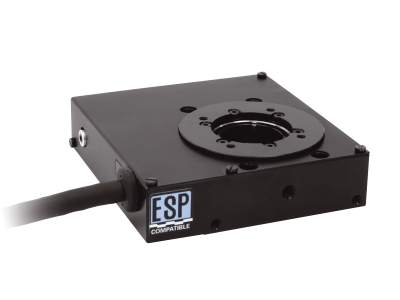

Compatible with either UTS, PR50/SR50, ILS, IMS, FCL, MTN, RV or URS stages
Vacuum compatible versions available

See All Features

Description	Compatibility	Price

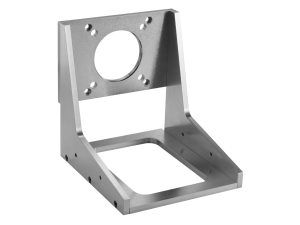

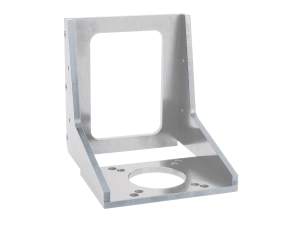

EQ100-L EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, UTS100 and UTS150	UNIVERSAL	$1,458
EQ100-LV6 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, UTS100PPV6 and UTS150PPV6	UNIVERSAL	$1,709
EQ100-S EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, UTS50	UNIVERSAL	$1,350
EQ100-SV6 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, UTS50PPV6	UNIVERSAL	$1,550
EQ120 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, ILS, FC and RV	UNIVERSAL	$2,290

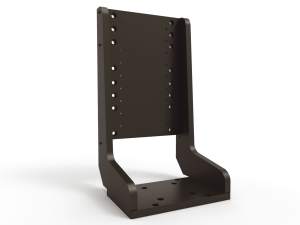

EQ160 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, MTN Series linear Stages	UNIVERSAL	$1,172

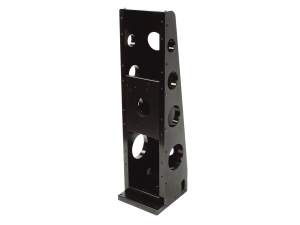

EQ180 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, IMS, RV120 and RV160	UNIVERSAL	$2,925

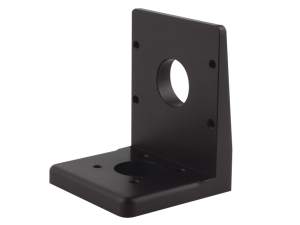

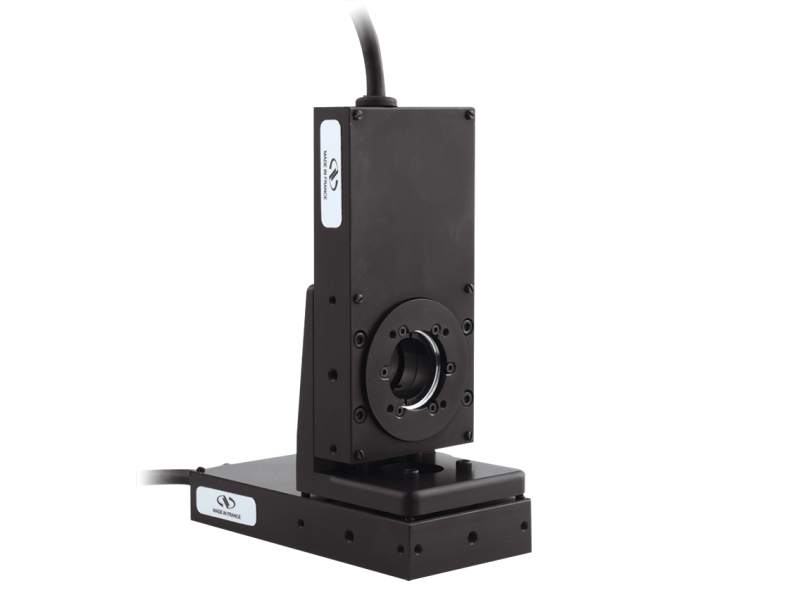

EQ45 EQ Motorized Stage 90 Degree Angle BracketsRight-Angle Bracket, PR50 and SR50	UNIVERSAL	$300

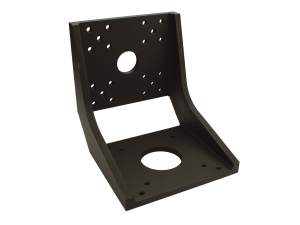

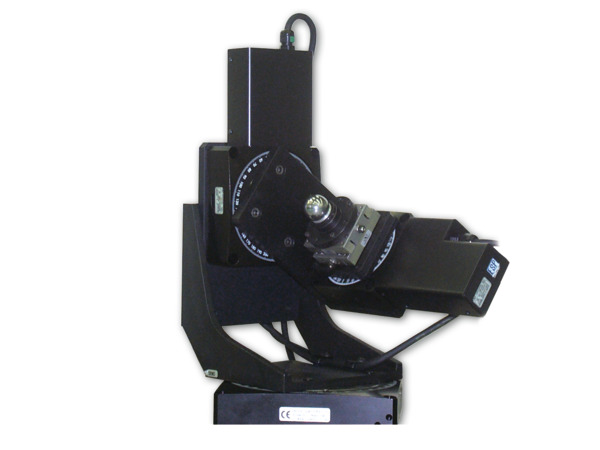

URSBK EQ Motorized Stage 90 Degree Angle Brackets90 Degree Mounting Bracket, URS75, URS100, URS150 Rotation Stages	UNIVERSAL	$648

Features

Brackets for ILS and IMS Linear Stages

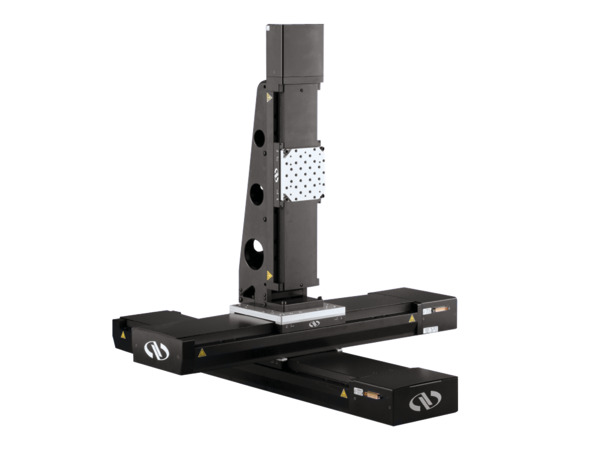

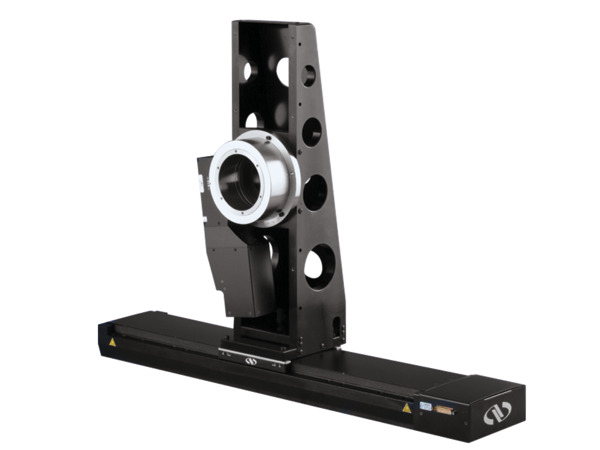

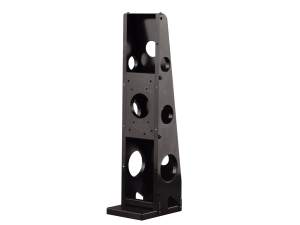

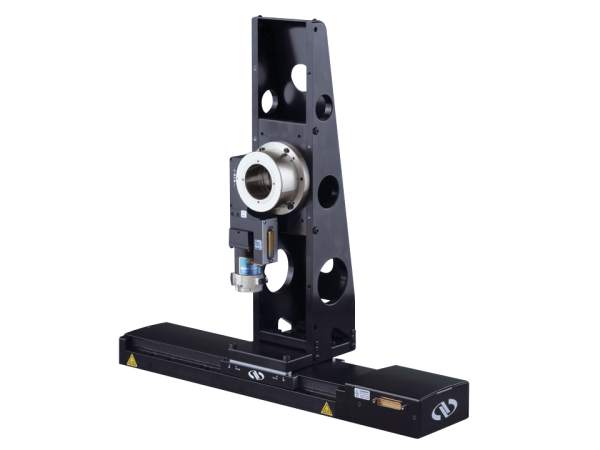

The EQ120 and EQ180 are black anodized aluminum right-angle brackets for use with ILS DC and stepper motor stages, IMS DC and stepper motor stages and FCL stages. Another ILS or IMS linear stage or an RV DC or stepper motor rotation stage can be mounted vertically.

Brackets for UTS Linear Stages

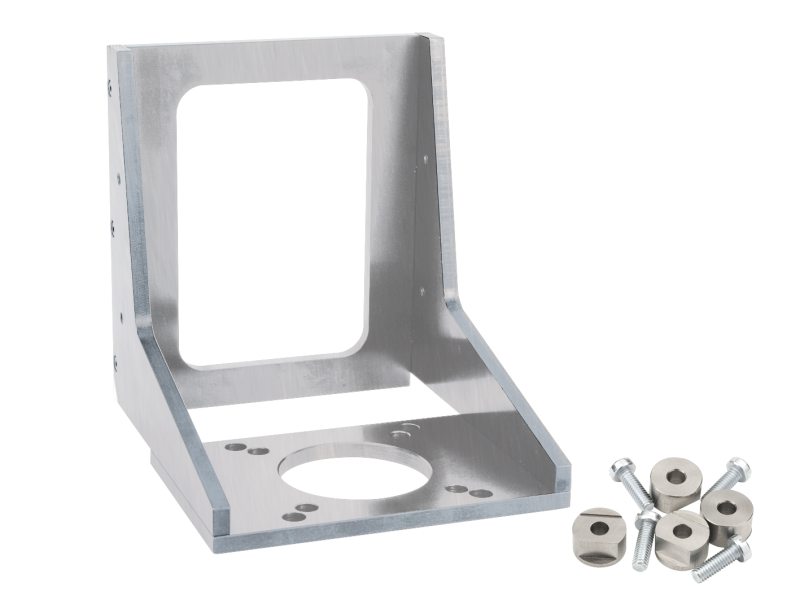

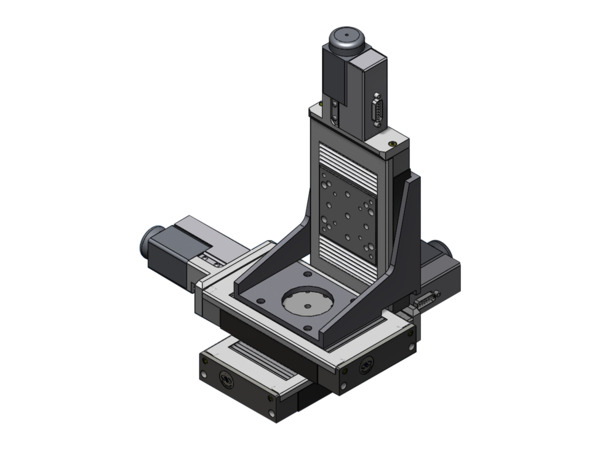

The EQ100-S and EQ100-L right-angle brackets can mount a UTS DC or stepper motor stage vertically onto another UTS stage. EQ100-SV6 and EQ100-LV6 are vacuum-compatible models to be used with UTS-PPV6 vcauum compatible stepper motor stages. Four mounting bridals are included with the bracket.
